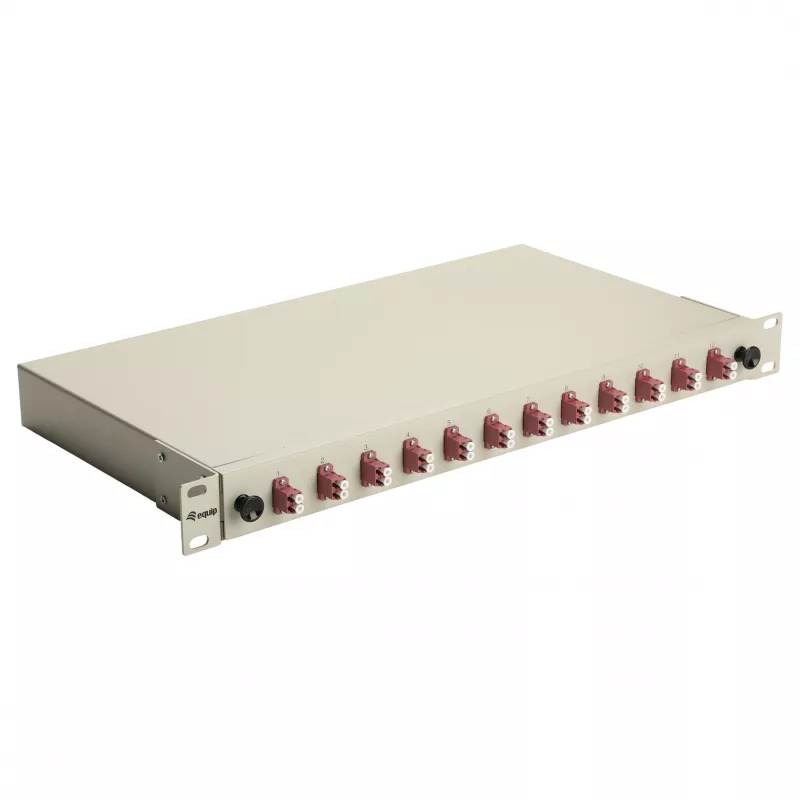

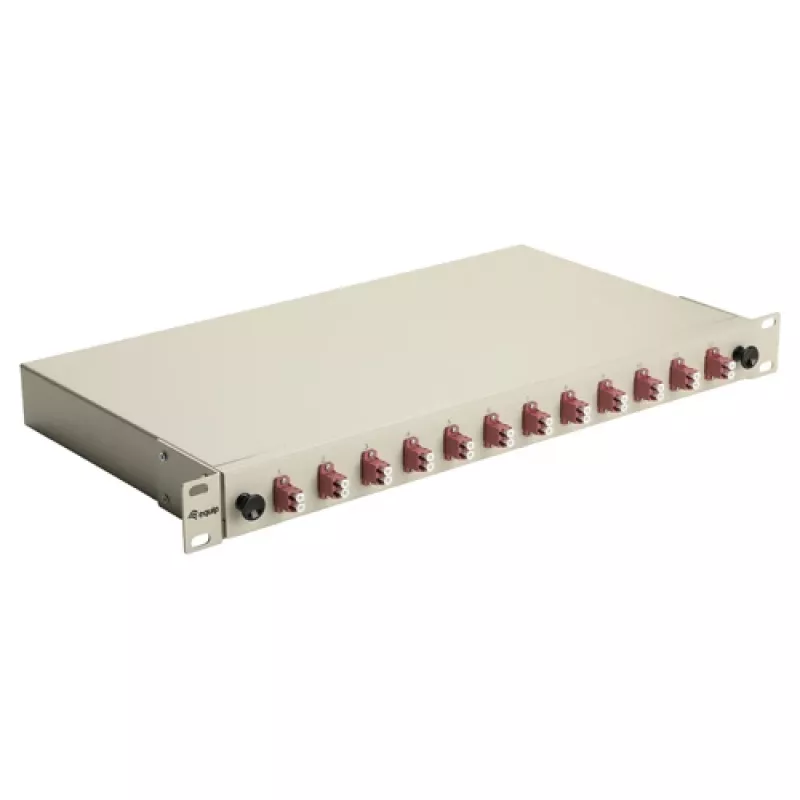

Equip 12-poorts glasvezel-lasbox, LC duplex, OM4, 1U, voorzien van connectoren, grijs

Equip's 12-Port Fiber Optic Splice Box brings order and protection to high-density fibre terminations. Ideal for network engineers and IT managers equipping a 19-inch rack in a data centre, server room, or telecom cabinet, this 1U unit is factory-equipped with LC duplex adapters and OM4 pigtails, so you can start splicing immediately.

Key specifications

• 12 LC duplex ports (24 fibres) for OM4 multimode cabling
• 1U 19-inch rack-mount design with steel housing in light grey (RAL 7035)

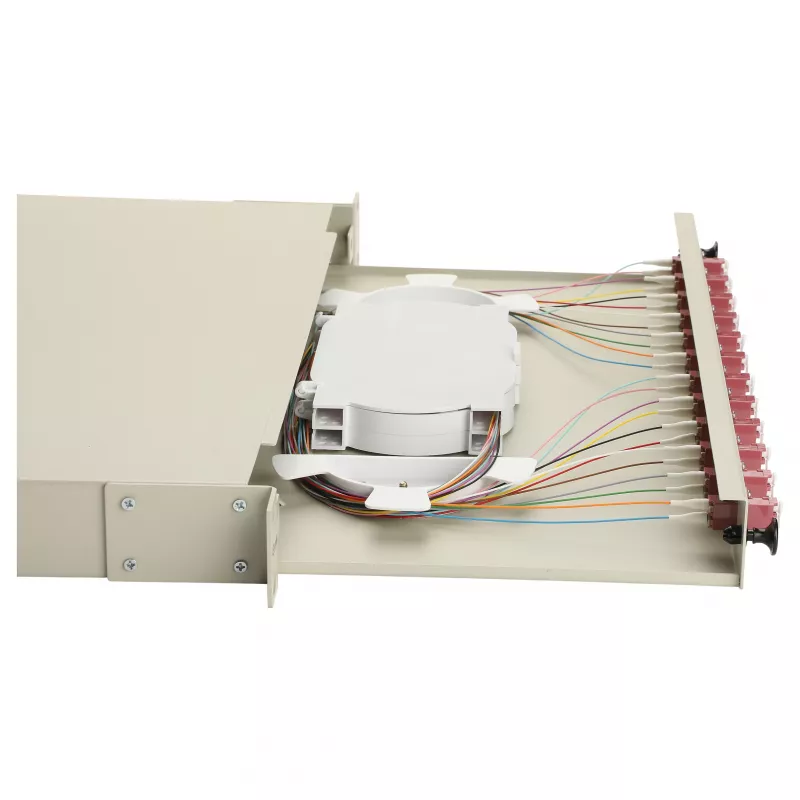

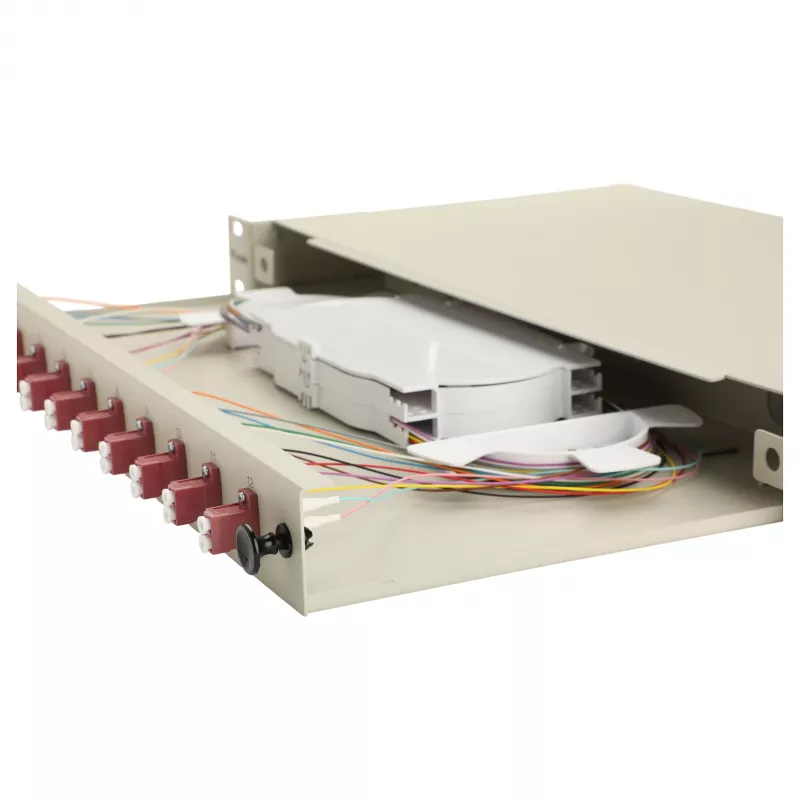

• Includes two splice trays supporting up to 24 individual splices
• Rear cable entry with multiple PG glands for clean routing
• Operating temperature range -20°C to +70°C

Why choose it?

This splice box is a complete solution: no need to source adapters or pigtails separately. The integrated OM4 pigtails ensure excellent performance for high-speed 40G/100G applications. The robust steel construction and RAL 7035 finish match standard server rack environments, while the generous splice tray capacity and rear cable entry simplify installation and maintenance.

Ideal use cases

• Fibre termination and splicing in data centre LAN/SAN networks
• Structured cabling in enterprise telecommunication rooms
• Fibre-to-the-desk or fibre distribution in office buildings

Good to know

The box is designed for front access, making it easy to manage and re-terminate the cable. Rear cable entry points are pre-fitted with PG glands for strain relief. The LC duplex connectors are colour-coded for multimode (OM4) and are compatible with standard LC patch cords. This unit is a reliable, cost-effective part of your network infrastructure.
