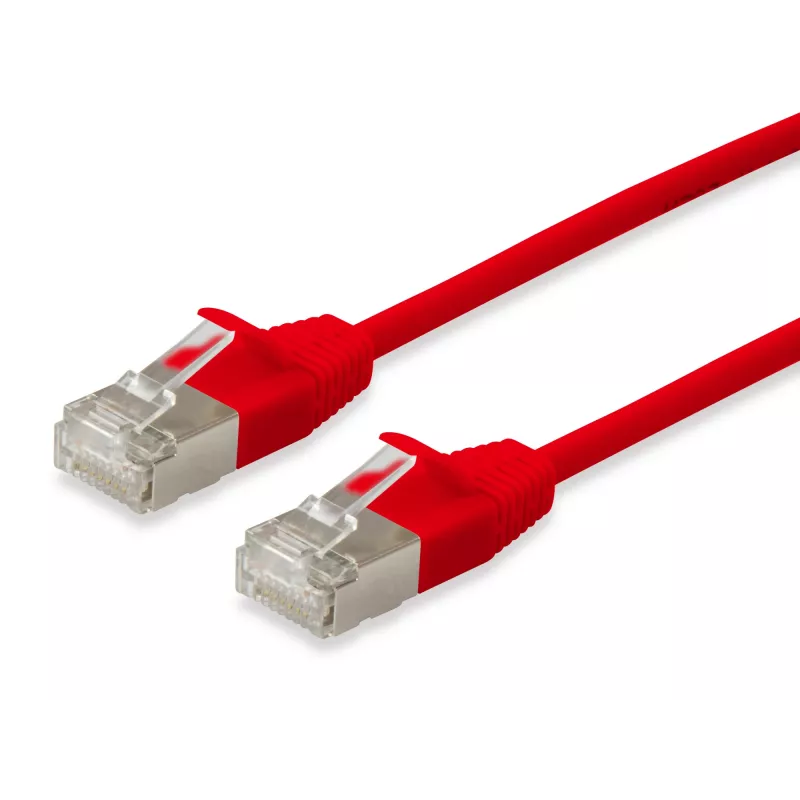

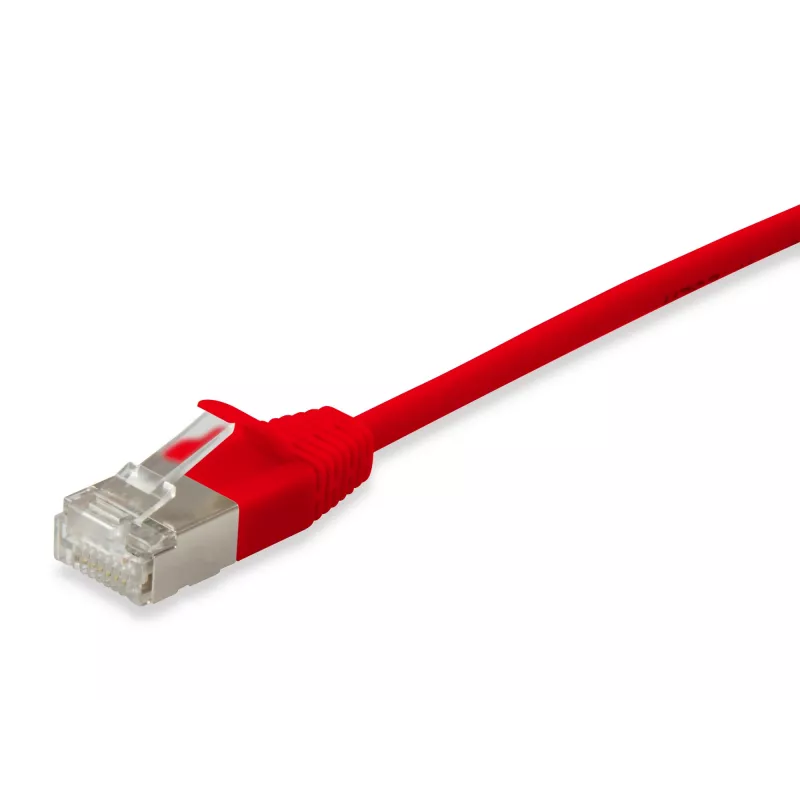

Equip Cat.6A F/FTP slanke patchkabel 0,15 m rood 10000 Mbit/s

The equip® Cat.6A F/FTP Slim Patch Cable 0.15m in red is a high-performance, space-saving network patch cable designed for dense cabling environments. With a 3.8 mm ultra-slim diameter and stranded bare copper conductors, it delivers Cat6A performance up to 500 MHz and supports 10 Gbit/s transmission while occupying significantly less space than a standard Cat6A cable.

Advantages

The slim design reduces cable bulk in racks and patch panels, allowing more cables to be routed through the same pathway. F/FTP foil-and-braid shielding lowers EMI/RFI interference, and molded RJ-45 boots with strain relief increase connector durability. The cable is RoHS compliant and uses Low Smoke Zero Halogen (LSZH/LSOH) jacket material for improved safety in enclosed spaces.

Suitable for

• Data center patching and high-density rack installations
• Telecommunications rooms and server cabinets
• 10GBase-T networks and Gigabit Ethernet connections
• Power over Ethernet (PoE and PoE+) powered devices
• Tight cable pathways where space is limited

Key specifications

• Length: 0.15 m
• Cable type: Cat6A F/FTP (FFTP)
• Diameter: 3.8 mm (ultra slim)
• Conductor: Stranded bare copper, AWG 32/7
• Bandwidth: 500 MHz
• Transmission speed: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• Standards: ISO/IEC 11801, EN 50173
• Shielding: Foil and braid (F/FTP)
• Jacket: LSZH/LSOH, RoHS compliant
• Colour: Red

How to use

Connect one RJ-45 plug to the network port of your switch, patch panel or device and the other RJ-45 plug to the corresponding port. Ensure connectors are fully inserted until the latch clicks for a secure connection. Route the slim cable through cable managers, trays or conduits as required, taking advantage of its reduced diameter to fit more connections in confined spaces.

Recommendations

Use this Cat.6A F/FTP slim patch cable for short-distance patching inside racks and cabinets. Avoid excessive bending near the connector and do not expose the cable to prolonged mechanical stress. For optimal performance in high-interference environments, maintain proper cable separation from high-voltage power lines and follow your installation standards for shielding termination.
