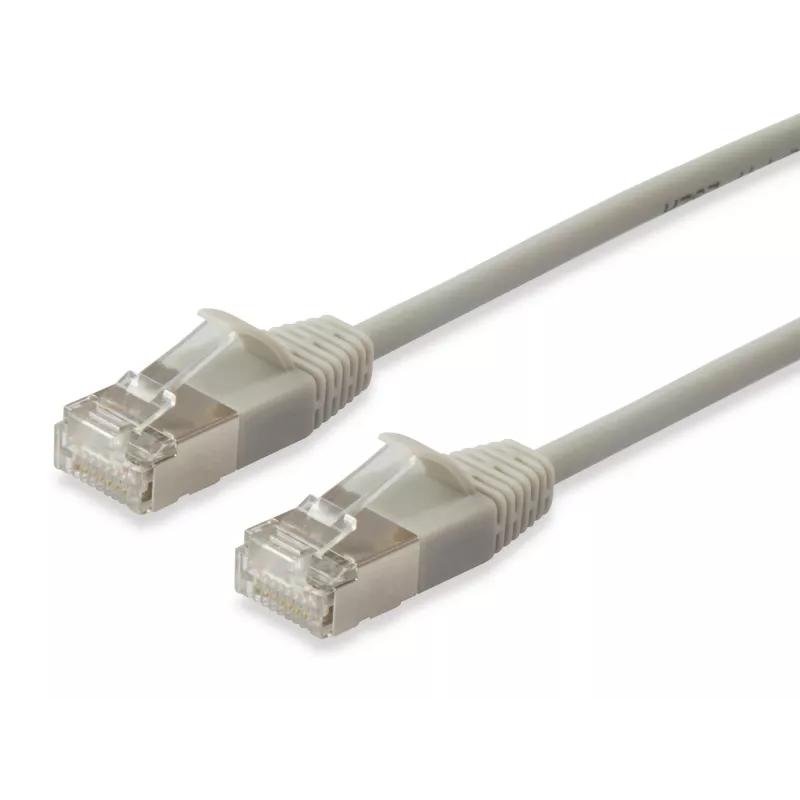

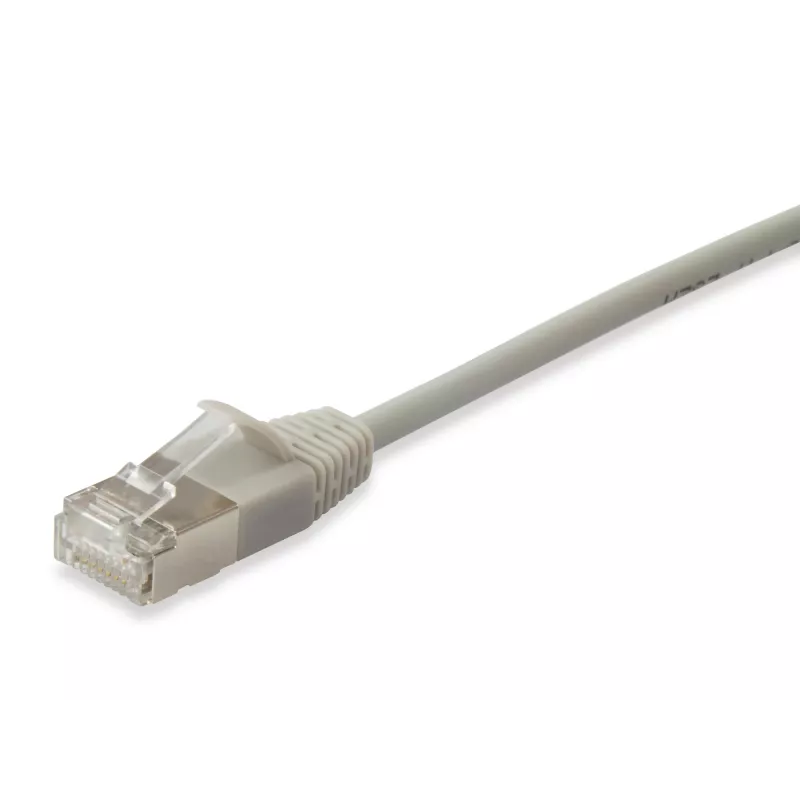

Equip Cat.6A F/FTP slanke patchkabel 1,5 m beige 10000 Mbit/s

The Equip Cat.6A F/FTP Slim Patch Cable (1.5 m) is a slim, shielded Ethernet patch cable designed for 10 Gbit/s networks. With an ultra-slim 3.8 mm diameter and stranded AWG 32/7 copper conductors, this beige Cat6A cable delivers up to 500 MHz bandwidth while reducing electromagnetic interference thanks to foil and braid shielding. Its reduced diameter makes routing in high-density environments easier and helps save space in data centers, telecommunications rooms, and crowded cable trays.

Advantages

The slim construction allows more cables to be installed in the same space compared to standard Cat6A cables, simplifying cable management and lowering the need to expand cable pathways. F/FTP shielding (foil around each pair plus overall braid) improves protection against EMI/RFI. The cable supports Power over Ethernet (PoE, PoE+) and is RoHS compliant with Low Smoke Zero Halogen (LSZH/LSOH) jacket material. Molded RJ-45 connectors with strain relief increase connector durability in frequent-move environments.

Suitable for

• 10 Gigabit Ethernet links in data centres and server rooms
• High-density patch panels and cable management channels
• PoE and PoE+ powered devices such as IP phones, access points and cameras
• Office and home network connections where space-saving routing is required

Key specifications

• Standard: Cat6A F/FTP (FFTP), compliant with ISO/IEC 11801 and EN 50173
• Bandwidth: 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Conductor: stranded bare copper, AWG 32/7
• Diameter: 3.8 mm (ultra slim)
• Length: 1.5 m
• Connectors: RJ-45 straight male — RJ-45 straight male
• Shielding: Foil around pairs + overall braid (F/FTP)
• Jacket: Low Smoke Zero Halogen (LSZH/LSOH)
• Colour: Beige

How to use

Connect one RJ-45 plug to the network port of a switch, router or patch panel and the other plug to the target device (server, workstation, access point, IP camera, etc.). Ensure connectors are fully inserted until the latch clicks and avoid sharp bends at the connector ends; follow standard installation bend-radius recommendations. For rack installations, route cables through cable managers or trays to maintain bend radius and allow adequate airflow.

Recommendations

Use this slim Cat.6A F/FTP patch cable where space is limited or when high port density is required. Avoid exposing the cable to temperatures or mechanical stress beyond the manufacturer's specified installation limits; for permanent outdoor runs or direct burial use cables rated for those conditions.
