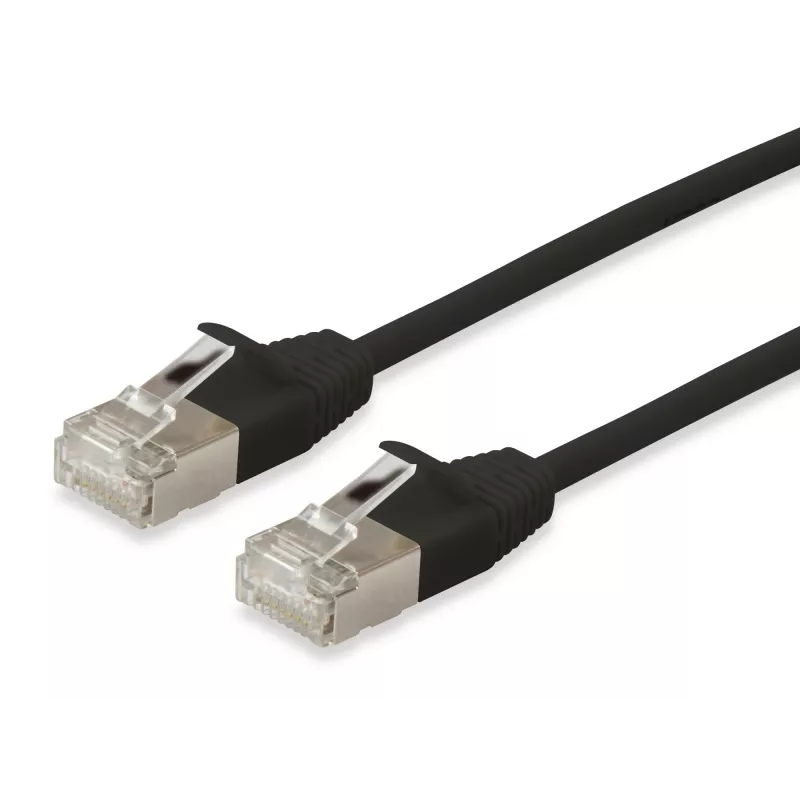

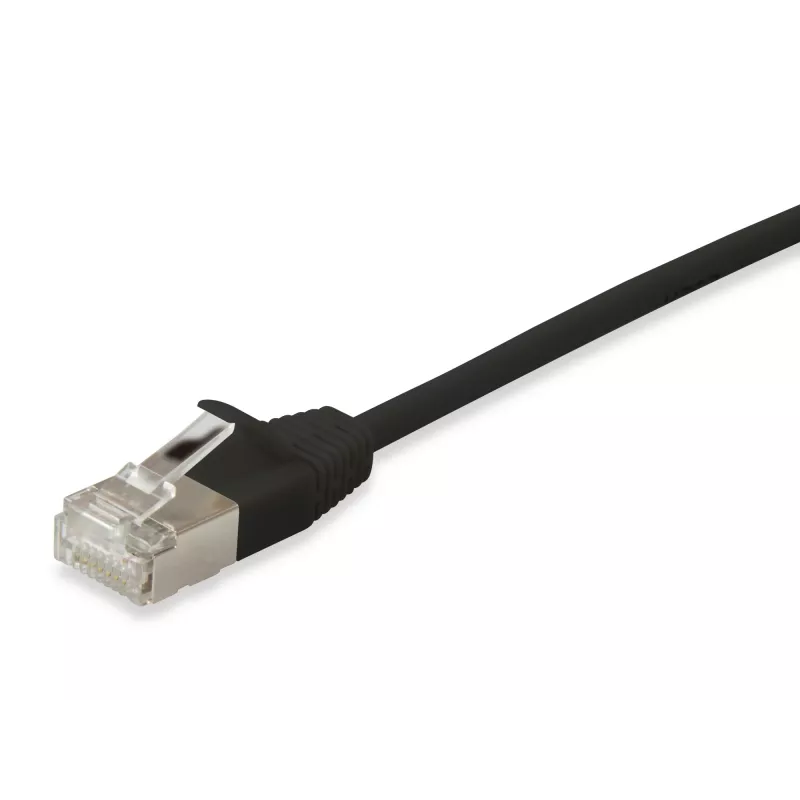

Equip Cat.6A F/FTP slanke patchkabel 1,5 m zwart 10000 Mbit/s

The Equip Cat.6A F/FTP Slim Patch Cable (1.5 m) is a slim, shielded Ethernet patch cable designed for high-density network installations. With a 3.8 mm diameter—almost half that of a standard Cat6A cable—it is easier to route in cable ducts, racks and patch panels while supporting 10 Gbit/s transmission and a 500 MHz bandwidth. The cable features F/FTP shielding to reduce EMI/RFI and comes with molded RJ-45 plugs and strain relief for reliable connections.

Advantages

The slim design saves space in congested environments and allows more cables to be installed in the same pathway, reducing the need for additional cable trays or conduit work. The stranded bare copper conductor (AWG 32/7) provides flexibility for patching, while foil and braid shielding improves signal integrity in environments with electromagnetic interference. The cable is RoHS compliant and made with Low Smoke Zero Halogen (LSZH/LSOH) jacket material.

Suitable for

• Data centers and network racks where space is limited
• Office patch panels and telecom rooms
• High-speed 10 Gigabit Ethernet links
• Power over Ethernet (PoE/PoE+) device connections

Key specifications

• Length: 1.5 m
• Cable type: Cat6A F/FTP (FFTP)
• Diameter: 3.8 mm (ultra slim)
• Conductor: Stranded bare copper, AWG 32/7
• Bandwidth: 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Connectors: RJ-45 straight male – RJ-45 straight male
• Shielding: Foil and braid (F/FTP)
• Jacket: LSZH/LSOH
• Compliance: ISO/IEC 11801, EN 50173, RoHS
• Color: Black

How to use

Connect one RJ-45 plug to your network device (switch, router, patch panel or workstation) and the other plug to the corresponding port. Route the slim cable through cable management channels or around patch panels as needed; the flexible stranded conductor makes it easy to bend and position in tight spaces. Verify link speed and PoE functionality after installation to ensure proper operation.

Recommendations

For optimal performance, avoid tight bends beyond the manufacturer’s minimum bend radius, keep the cable away from strong sources of electrical noise when possible, and use appropriate cable management to maintain airflow and reduce strain on connectors.
