Equip Eco Mount 19' kast, 12U, 540X400MM, RAL7035 grijs

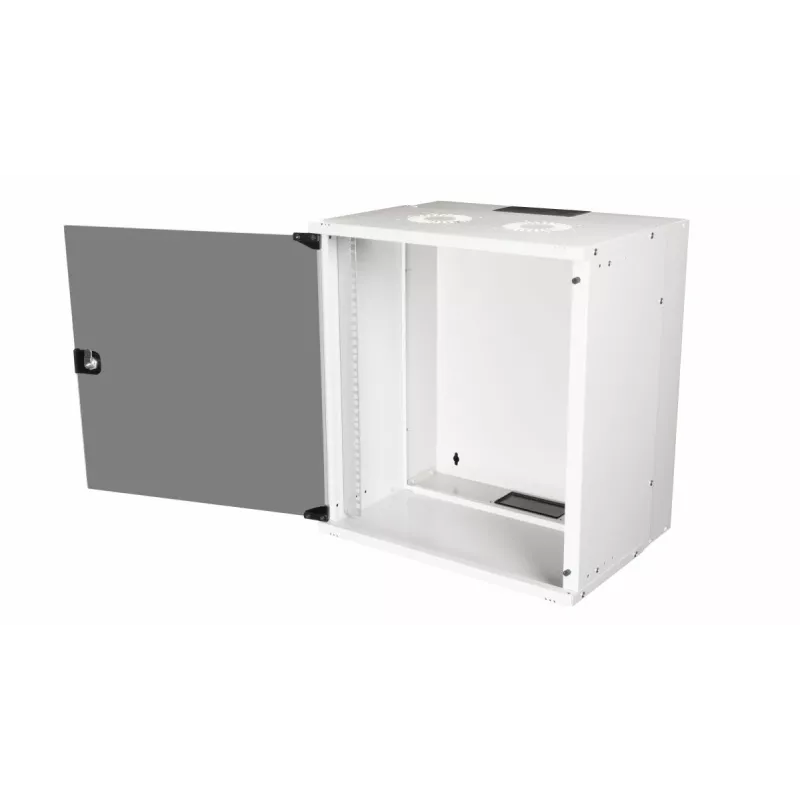

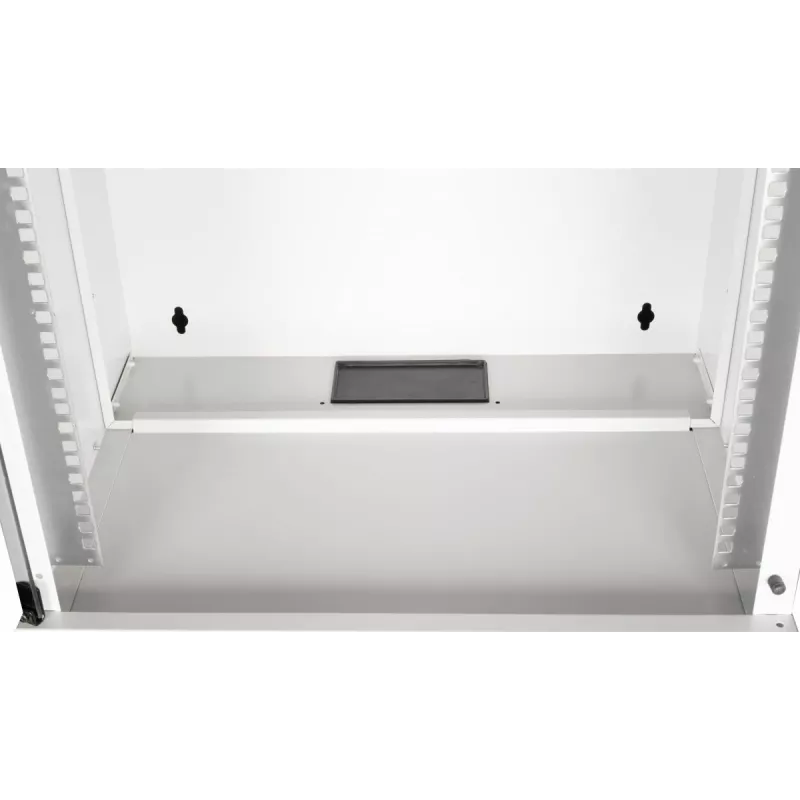

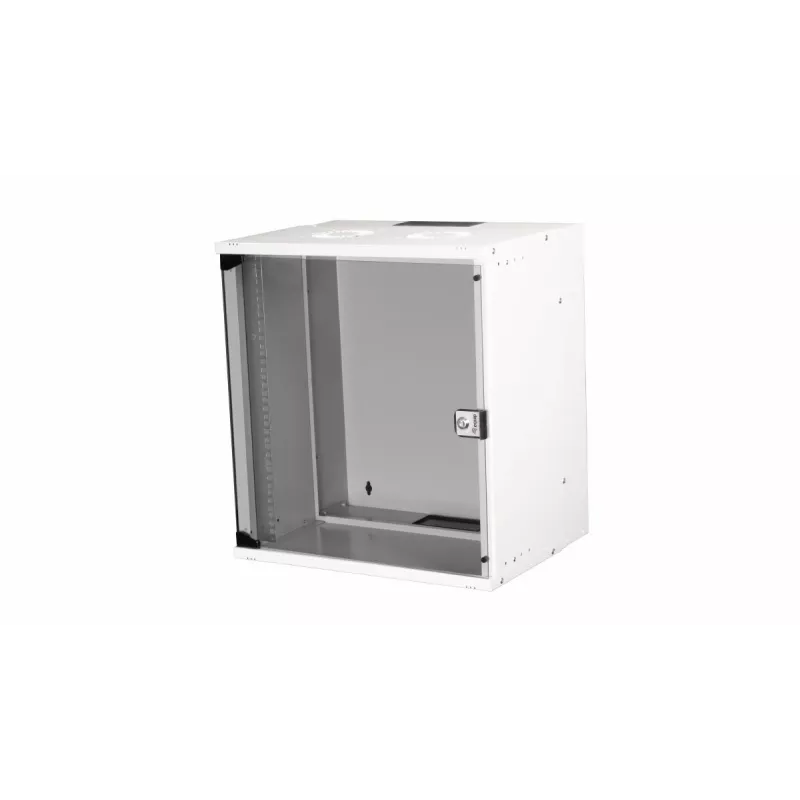

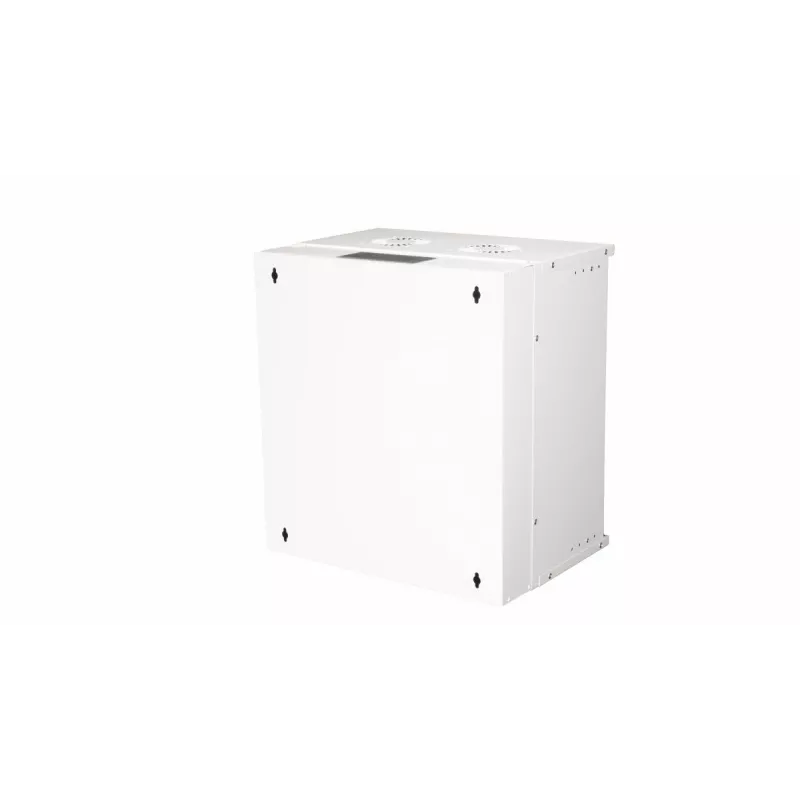

The Equip Eco Mount Wall mounted rack EWM-12-5440-G is a 12U wall-mounted network cabinet designed for efficient space use in server rooms, telecom closets, and small IT installations. Constructed from 1.5 mm steel sheet and finished in light grey (RAL 7035), the cabinet measures 596 mm high, 149 mm wide and 400 mm deep with a maximum mounting depth of 380 mm. The unit includes a keyed lock for security, integrated ventilation slots at the top and removable plastic covers for top and bottom cable entry to support neat cable routing.

Advantages

The cabinet combines robust 1.5 mm steel construction with a compact 12U form factor to provide secure equipment housing while minimizing wall footprint. Reversible door mounting (right-to-left) and removable cable entry covers simplify installation and cable management. A keyed lock adds physical security, and the light grey RAL 7035 finish offers a neutral appearance suitable for professional environments.

Suitable for

• Small server or network installations in offices and retail locations
• Telecom and network distribution points
• Patch panels, switches and small UPS units compatible with 12U/19" mounting

Key specifications

• Rack capacity: 12U
• Dimensions (H×W×D): 596 × 149 × 400 mm
• Maximum mounting depth: 380 mm
• Material thickness: 1.5 mm steel
• Weight: 12.5 kg
• Colour: Light grey (RAL 7035)

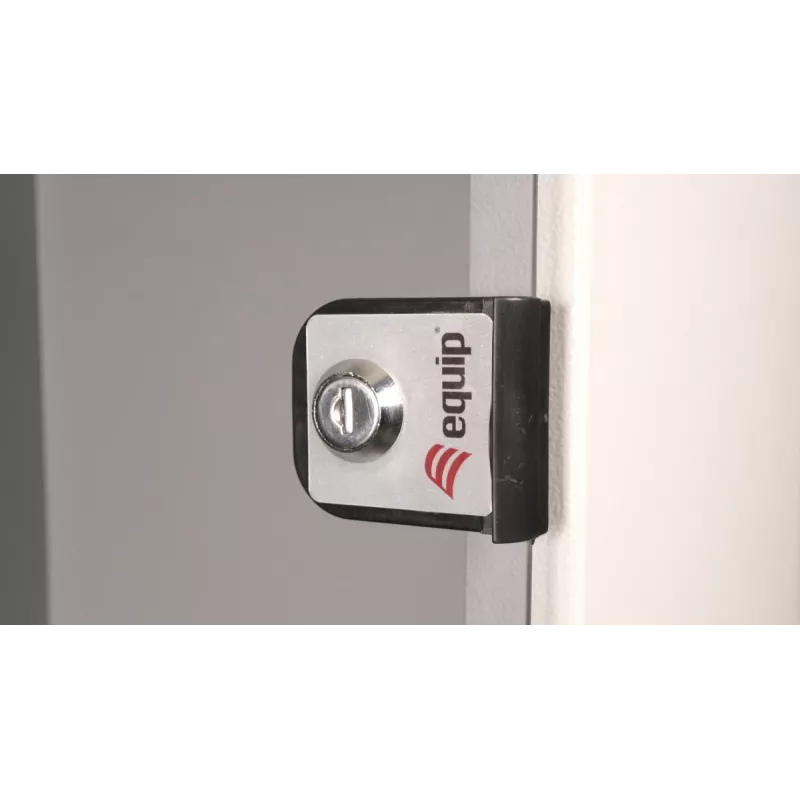

• Lock: Keyed lock

How to use

Mount the cabinet securely to a suitable load-bearing wall using appropriate fixings for your wall type, ensuring the cabinet is level and can support the combined weight of the enclosure and installed equipment. Route cables through the removable plastic covers at top or bottom as required, and secure internal equipment on the 19" mounting rails compatible with 12U height. Use the reversible door option to orient the door to the required side. Follow the provided assembly video and instructions during installation.

Recommendations

Install the cabinet where ventilation is adequate and avoid obstructing the integrated top ventilation slots; distribute equipment weight evenly and leave clearance for cable routing and service access.
