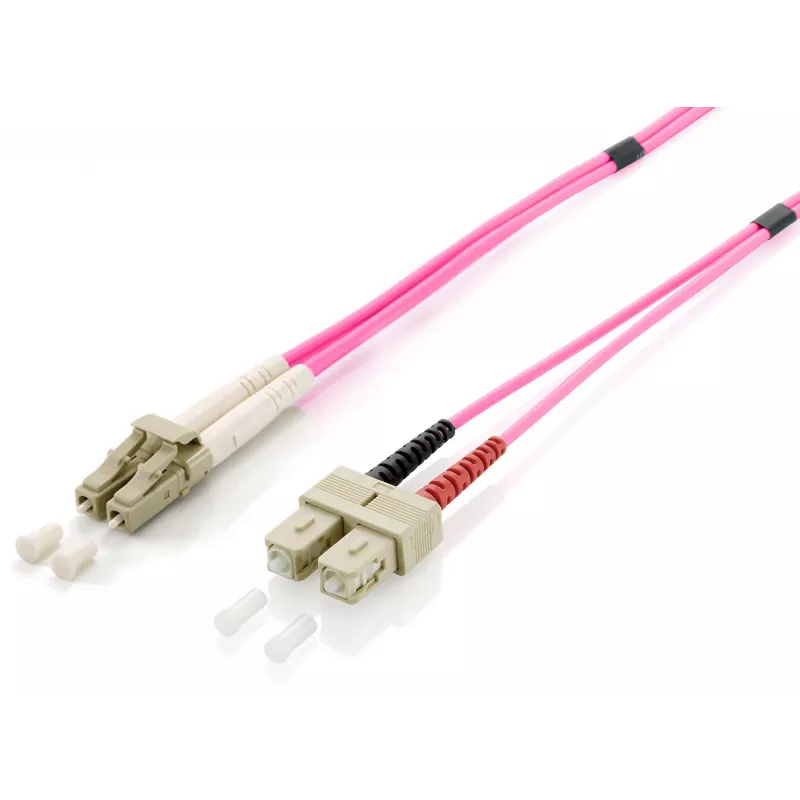

Equip LC/SC glasvezel-patchkabel, OM4, 1m

The Equip LC/SC Fiber Optic Patch Cable OM4, 1m is a duplex multimode patch cord with a 50 µm core diameter designed to connect LC and SC connector types. Manufactured with quality materials to maintain low insertion loss, good return loss and consistent endface geometry, this 1 metre OM4 cable supports high-speed data transmission for networking and telecommunication links.

Advantages

This Fiber Optic Patch Cable Equip LC/SC OM4 1m provides reliable full-duplex connections between LC and SC ports. The OM4 multimode fiber offers improved bandwidth for short- to medium-distance links, while the factory-polished endfaces and controlled insertion loss deliver consistent signal performance. The cable is available in a standardized 1 m length suitable for patch-panel and rack connections.

Suitable for

• Data center patching between LC and SC ports
• Enterprise network cabinets and rack installations
• Telecommunication equipment interconnects
• Short- to medium-distance multimode links requiring OM4 performance

Key specifications

• Brand: EQUIP
• Model / MPN: 255531
• EAN: 4015867178881
• Type: Fiber optic patch cable, duplex
• Connector A: LC
• Connector B: SC
• Fiber type: OM4 multimode
• Core diameter: 50 µm
• Length: 1 m
• Mode: Full duplex

How to use

Verify that the connectors and ports are clean before insertion. Align the LC and SC connectors with the corresponding ports and insert until the connector latches click into place. For removal, depress the LC latch and pull the SC connector straight out to avoid bending the fiber. Use the 1 m length for patch-panel to equipment connections or short intra-rack links.

Recommendations

Keep connector endfaces free of dust and contaminants by using appropriate fiber cleaning tools and dust caps when the cable is not connected; avoid tight bends and excessive tension to maintain optimal optical performance.
