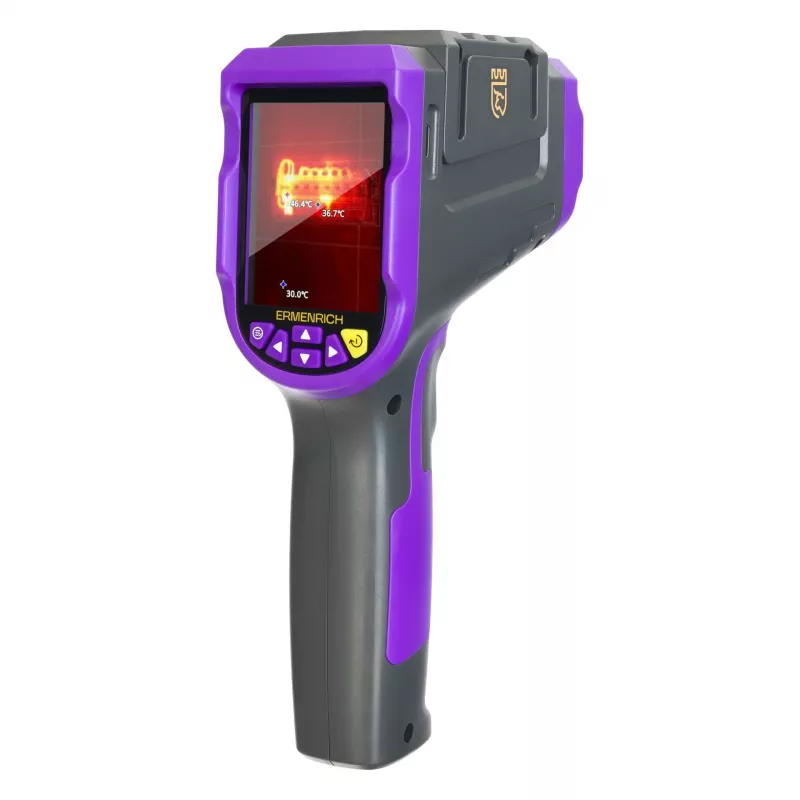

Ermenrich Seek TV70 warmtebeeldcamera

The Ermenrich Seek TV70 is a professional handheld thermal imaging camera designed for building diagnostics, electrical inspections, and HVAC maintenance. With a high-resolution 256x192 infrared sensor and a wide temperature range of -20°C to +550°C, it delivers precise thermal measurements and clear imagery. The 3.2-inch LCD display and multiple image modes (thermal, visual, fusion) make it easy to identify hot spots and anomalies. Built with a rugged IP54-rated housing and a 2-meter drop test rating, the TV70 is ready for demanding work environments.

Advantages

High-resolution thermal imaging with 49,152 pixels for detailed temperature analysis. Wide temperature measurement range from -20°C to +550°C, suitable for various applications. Multiple color palettes and image modes enhance visibility and interpretation. Long battery life of up to 6 hours ensures uninterrupted fieldwork. Durable IP54 protection and 2-meter drop resistance for reliable use in tough conditions.

Suitable for

• Building diagnostics and energy audits
• Electrical panel and circuit inspections
• HVAC system troubleshooting
• Plumbing and leak detection
• Preventive maintenance and quality control

Key specifications

• Infrared resolution: 256 x 192 pixels
• Temperature range: -20°C to +550°C
• Accuracy: ±2°C or ±2%
• Thermal sensitivity (NETD): <50 mK
• Frame rate: 25 Hz
• Field of view: 56° x 42°
• Display: 3.2-inch LCD, 320 x 240 pixels
• Spectral range: 8-14 µm
• Emissivity adjustment: 0.01 to 0.99
• Focus: Fixed
• Image modes: Thermal, Visual, Fusion (Picture-in-Picture)
• Storage: 16GB eMMC built-in
• Battery: Rechargeable Li-ion 5000 mAh, up to 6 hours
• Connectivity: USB Type-C
• IP rating: IP54
• Drop test: 2 meters
• Visible light camera: 640 x 480 pixels
• Thermal palettes: Iron Red, Rainbow, White Hot, Black Hot, Lava, High Contrast Rainbow, Red Hot

Recommendations

For optimal results, ensure the camera is fully charged before use. Adjust emissivity settings according to the surface material for accurate temperature readings. Use the fusion mode to overlay thermal and visual images for easier identification of problem areas. Store in a dry, clean environment when not in use.
