Ernitec 0070-10023 bewakingscamera-accessoire montage

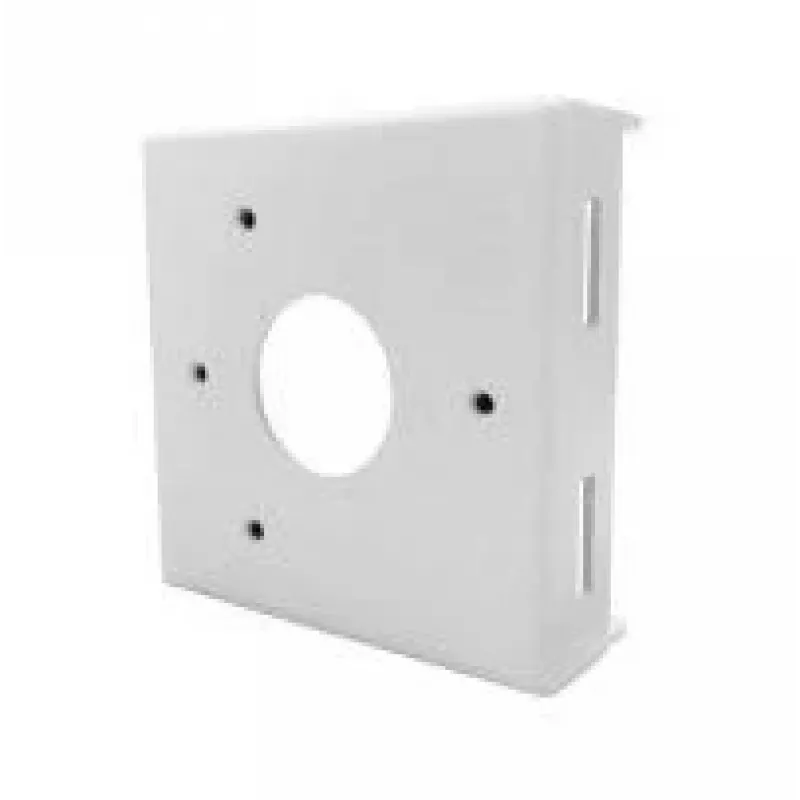

The Ernitec 0070-10023 HALO pole mount is a white security camera mounting bracket designed for stable outdoor and indoor installations. It measures 100 mm wide, 40 mm deep and 100 mm high, and weighs approximately 1 kg. The kit is supplied with four stainless steel straps, four M8x16 screws, four washers and four spring washers to secure the mount to round or polygonal poles.

Advantages

The mount is made for durability and corrosion resistance thanks to included stainless steel straps and hardware. Its compact 100 x 40 x 100 mm dimensions allow discreet mounting while providing a stable platform for security cameras. The supply of all necessary fasteners simplifies installation and reduces the need for additional parts.

Suitable for

• Mounting fixed or dome security cameras on poles
• Outdoor surveillance installations where corrosion resistance is required
• Temporary or permanent camera positioning on street poles, lamp posts or similar structures

Key specifications

• Brand: ERNITEC
• Model / MPN: 0070-10023
• Colour: White
• Dimensions (W×D×H): 100 × 40 × 100 mm
• Weight: 1 kg
• Included accessories: 4 × stainless steel straps, 4 × M8x16 screws, 4 × washers, 4 × spring washers
• EAN: 5712505908976

How to use

Position the mount on the desired pole section and wrap the supplied stainless steel straps around the pole and mount. Insert the M8x16 screws with washers and spring washers through the mount attachment points and tighten evenly to secure the bracket to the pole. After mounting the bracket, attach the camera according to the camera manufacturer’s instructions and adjust the angle for the required field of view.

Recommendations

For best long-term performance, tighten fasteners to the torque recommended by the camera manufacturer and periodically inspect the stainless steel straps and hardware for corrosion or loosening. Use appropriate PPE when performing installations at height.
