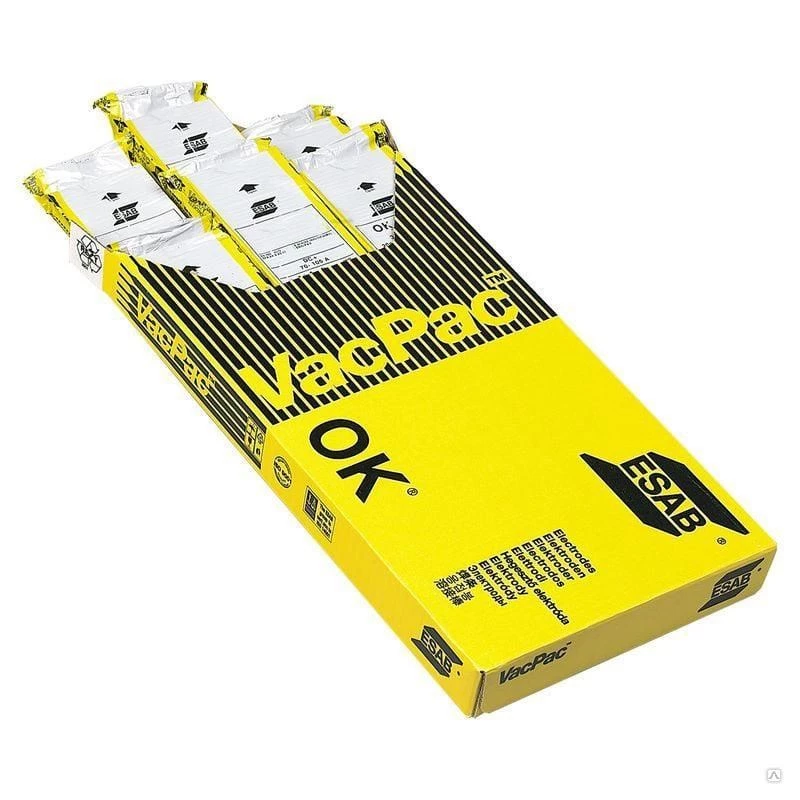

ESAB OK 61.30 las elektrode 2,0 mm 1,4 kg

The ESAB OK 61.30 is a high-quality rutile coated stainless steel welding electrode, designed for welding 18Cr8Ni type stainless steels such as AISI 304, 304L, 321, and 347. With a diameter of 2.0 mm and length of 300 mm, this electrode offers excellent weldability and mechanical properties. It is suitable for all welding positions except vertical down, and can be used with DC+ or AC current. The electrode is CE and TÜV approved, ensuring reliability and safety in professional applications.

Advantages

Excellent arc stability and low spatter. Smooth weld bead appearance with easy slag removal. High corrosion resistance and good mechanical properties. Suitable for a wide range of stainless steel welding applications.

Suitable for

• Welding of 18Cr8Ni stainless steels (AISI 304, 304L, 321, 347)
• General fabrication, chemical industry, food processing equipment
• All positions except vertical down

Key specifications

• Product Type: Welding Electrode
• Electrode Type: Rutile Coated
• Material Type: Stainless Steel
• AWS Classification: E308L-17
• EN ISO Classification: 3581-A E 19 9 L R 12
• Electrode Diameter: 2.0 mm
• Electrode Length: 300 mm
• Welding Current Type: DC+, AC
• Yield Strength (Rp0.2): 400 MPa
• Tensile Strength (Rm): 570 MPa
• Elongation (A5): 40%
• Impact Strength (CVN): 60 J at +20°C
• Weld Metal Carbon (C): 0.03%
• Weld Metal Chromium (Cr): 19.5%
• Weld Metal Nickel (Ni): 9.5%
• Weld Metal Silicon (Si): 0.8%
• Weld Metal Manganese (Mn): 0.8%
• Approvals: CE, TÜV

Recommendations

Store in a dry place. Re-dry at 250-300°C for 2 hours if necessary. Use proper welding techniques for optimal results.
