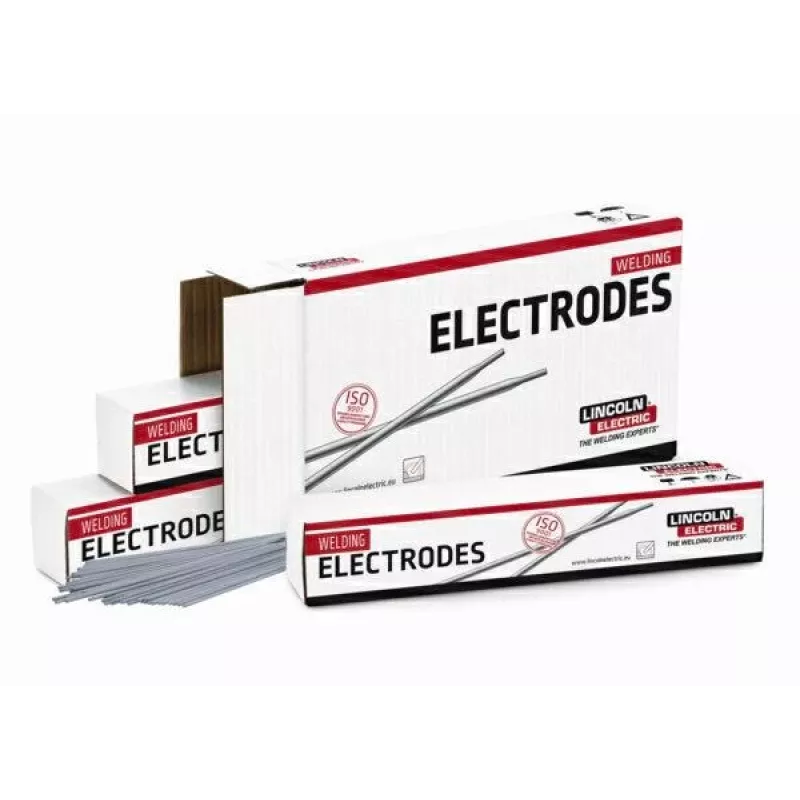

LINCOLN Electric normale rutiel-elektrode E6013 3,2 mm 6,1 kg (486 stuks)

Rutile welding electrode for mild steel, delivering a soft, stable arc with minimal spatter and easy slag release. Ideal for general fabrication, structural steel, repair, and maintenance work in all positions.

Advantages

Excellent slag detachability and smooth bead appearance. Suitable for AC and DC currents, including low open-circuit voltage transformers. Low spatter and self-releasing slag reduce post-weld cleaning. Consistent performance across a wide amperage range.

Suitable for

• General steel construction and fabrication
• Repair and maintenance welding
• Sheet metal and thin plate work
• Root passes in pipe welding
• Mild and low carbon steels

Key specifications

• Electrode type: Rutile (E6013 / E 38 0 R 12)
• Diameter: 3.2 mm
• Length: 350 mm
• Package weight: 6.1 kg (486 pieces)
• Welding positions: All positions
• Current type: AC / DC+ / DC-
• Recommended amperage: 80 - 130 A
• Tensile strength: 500 - 560 MPa
• Yield strength: 400 - 460 MPa
• Elongation: > 22%
• Impact strength: > 47 J at 0°C

Recommendations

For best results, use dry electrodes and maintain proper arc length. Suitable for both professional and hobby welding applications.
