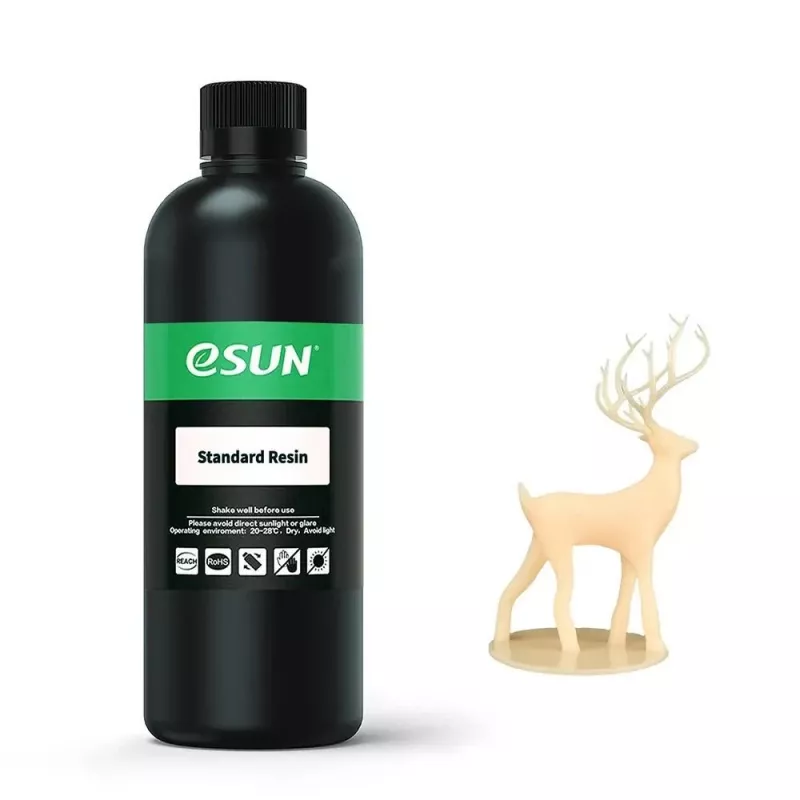

ESUN Standard Photopolymer Resin 1 kg beige voor LCD/DLP 3D-printers

The ESUN Standard Photopolymer Resin in beige is a high-quality UV-curable resin designed for LCD and DLP 3D printers. With a net weight of 1 kg, this resin offers excellent detail and surface finish, making it ideal for prototyping, models, and general-purpose 3D printing. Its low odor formulation ensures a more pleasant printing experience.

Advantages

This resin provides high precision and smooth surface quality, with a Shore D hardness of 75-85 D and tensile strength of 30-50 MPa. It has low volumetric shrinkage (3.62-4.24%) and is compatible with a wide range of LCD/DLP printers. The recommended exposure times are 20-60 s for bottom layers and 2-8 s for normal layers, depending on the printer.

Suitable for

• Prototyping and concept models
• Detailed miniatures and figurines
• General-purpose 3D printing applications
• Educational and hobbyist projects

Key specifications

• Resin Type: Standard Photopolymer Resin
• Color: Beige
• Net Weight: 1 kg
• Curing Wavelength: 395-405 nm
• Printer Compatibility: LCD/DLP 3D Printers
• Density: 1.10 g/cm³ (at 25°C)
• Viscosity: 150-250 mPa·s (at 25°C)
• Hardness (Shore D): 75-85 D
• Tensile Strength: 30-50 MPa
• Elongation at Break: 5-10%
• Flexural Strength: 40-60 MPa
• Flexural Modulus: 1.5-2.0 GPa
• Volumetric Shrinkage: 3.62-4.24%
• Recommended Bottom Exposure Time: 20-60 s
• Recommended Normal Exposure Time: 2-8 s
• Storage Temperature: 15-35°C
• Shelf Life: 12 months (unopened)
• Odor: Low Odor
• Post-Curing Method: UV Light

Recommendations

For best results, ensure proper calibration of your printer and follow the recommended exposure settings. Store in a cool, dark place away from direct sunlight. Use gloves and adequate ventilation when handling liquid resin.
