ETI 004661412 CLBS-DH80/YR draaiaandrijving voor CLBS 16-80 lastscheider, rood

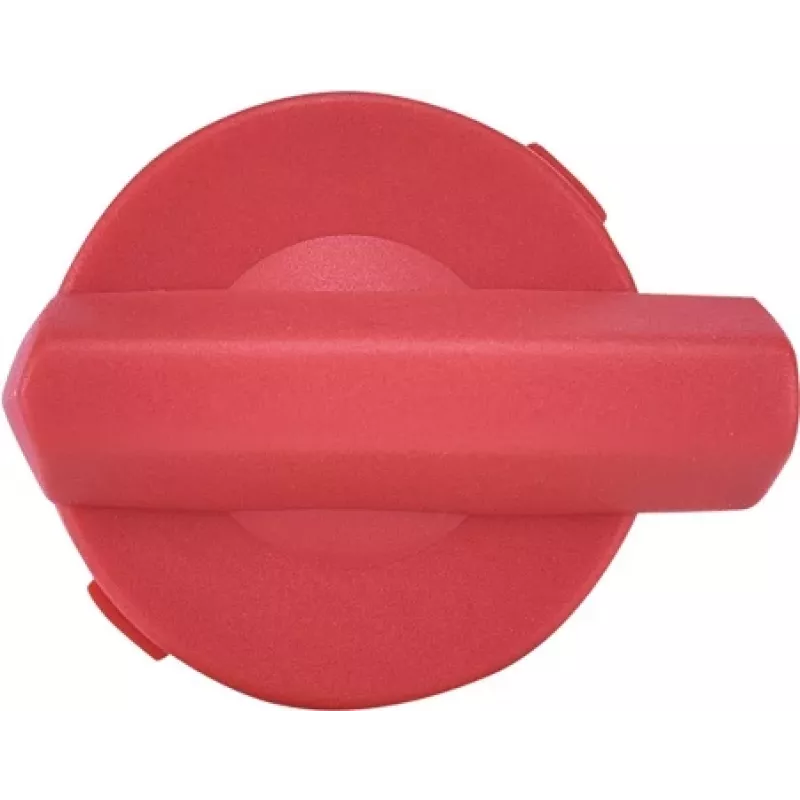

Panel builders and maintenance technicians use the ETI CLBS-DH80/YR handle to operate CLBS 16-80 load disconnectors from the front of a control cabinet. The red handle mounts directly to the switch shaft and provides a clear rotary ON/OFF action.

Key specifications

• Product type: Operating handle
• Compatible switch series: ETI CLBS 16-80 load disconnectors
• Compatible switch current range: 16A to 80A
• Colour: Red
• Material: High-grade plastic
• Mounting type: Direct to switch shaft, panel mount (front plate)
• Operation type: Rotary
• Padlockable: Yes (supports multiple padlocks)
• Protection degree (front): IP65 (when correctly mounted)
• Number of switching positions: 2 (ON/OFF)
• Front plate dimensions (W x H): 80 x 80 mm
• Indication: Clearly marked ON/OFF positions
• Application: Main switch, emergency stop, load isolation
• Standard compliance: IEC/EN 60947-3
• Manufacturer: ETI
• Manufacturer part number: 004661412

Why choose it

The handle is designed for direct mounting on the switch shaft, eliminating the need for additional coupling parts. Its red colour provides high visibility, and the padlockable feature allows secure lockout/tagout procedures.

Ideal use cases

• Main switch in industrial control panels
• Emergency stop applications
• Load isolation for maintenance

Good to know

The handle meets IEC/EN 60947-3, ensuring compatibility with standard switchgear. The front plate dimensions are 80 x 80 mm, suitable for standard panel cut-outs.
