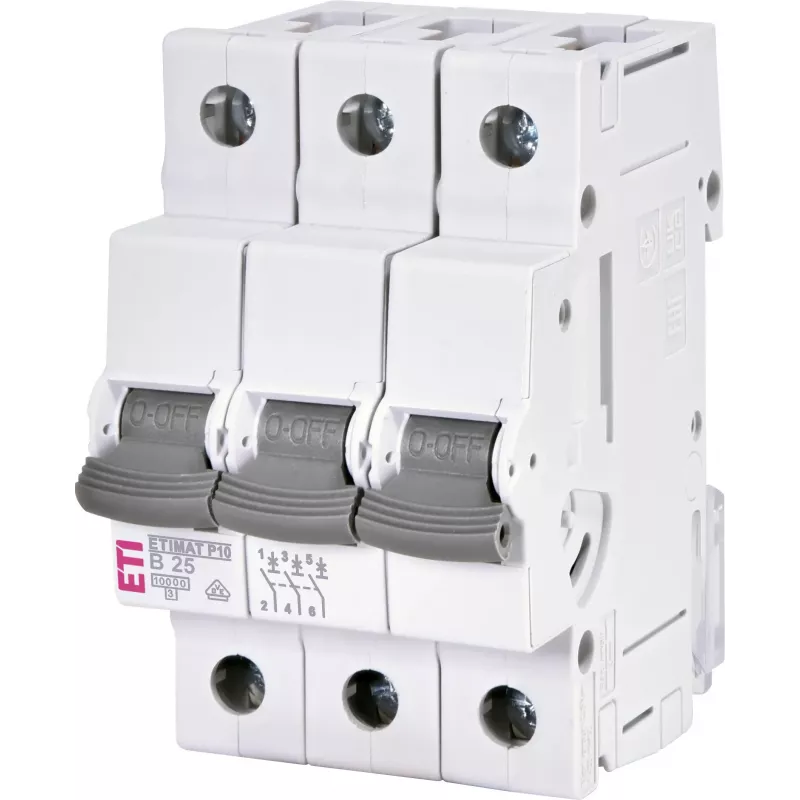

ETI ETIMAT P10 3-polige B25 25A 10kA installatieautomaat, 415V AC/DC

Miniature circuit breaker with 3 poles, B tripping characteristic, and 25 A rated current, offering 10 kA short-circuit breaking capacity for reliable protection in AC/DC circuits up to 415 V.

Advantages

DIN rail mounting and screw terminals ensure quick, secure installation. The ON/OFF position indicator provides clear status at a glance, while the energy limiting class 3 design enhances safety.

Suitable for

• Protection of three-phase circuits in industrial and commercial installations
• AC and DC applications requiring 25 A rated current with B curve
• Distribution boards with standard 35 mm DIN rail

Key specifications

• Number of poles: 3
• Tripping characteristic: B
• Rated current: 25 A
• Rated voltage: 415 V AC/DC
• Short-circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Series: ETIMAT P10
• Mounting type: DIN rail
• Protection degree: IP20
• Terminal type: Screw terminals
• Standard compliance: IEC/EN 60898-1
• Energy limiting class: 3
• Ambient operating temperature: -25°C to +55°C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Connection capacity: 1-25 mm² (solid/stranded)
• Overvoltage category: III

Recommendations

Verify the tripping curve and rated current against your load characteristics to ensure selective coordination with upstream protective devices.
