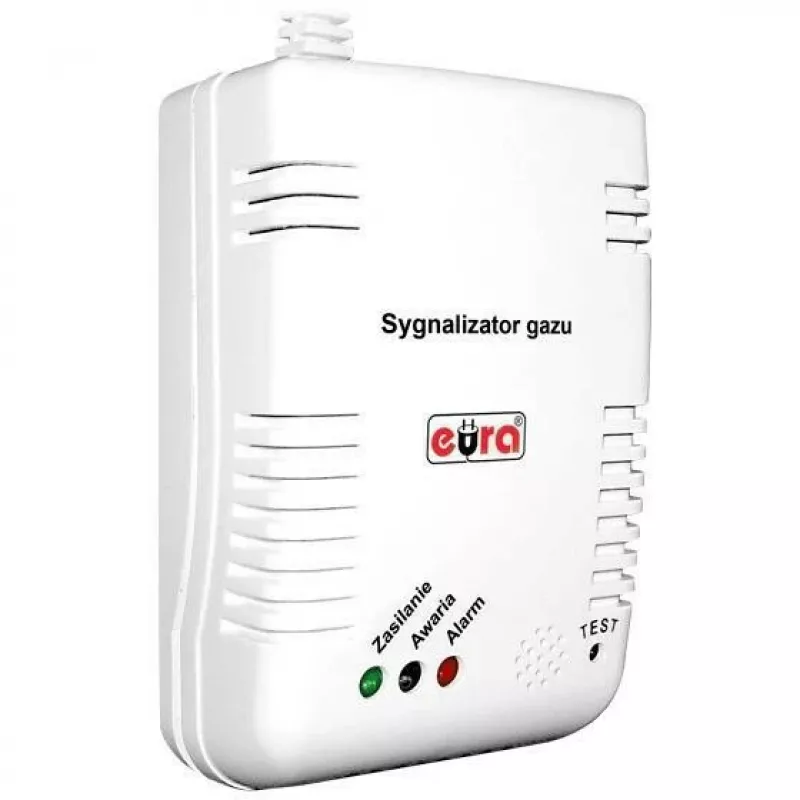

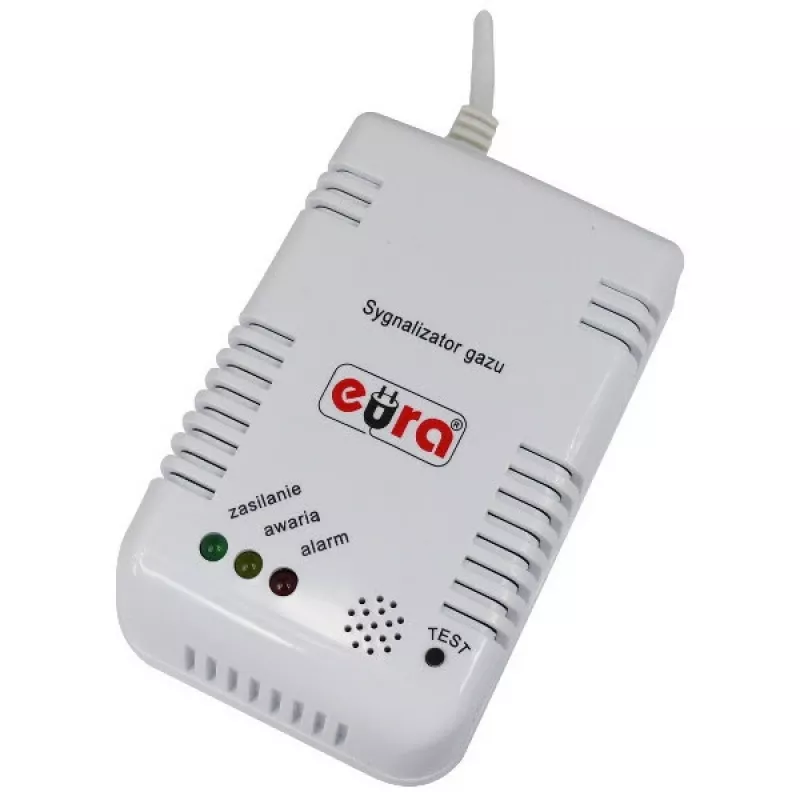

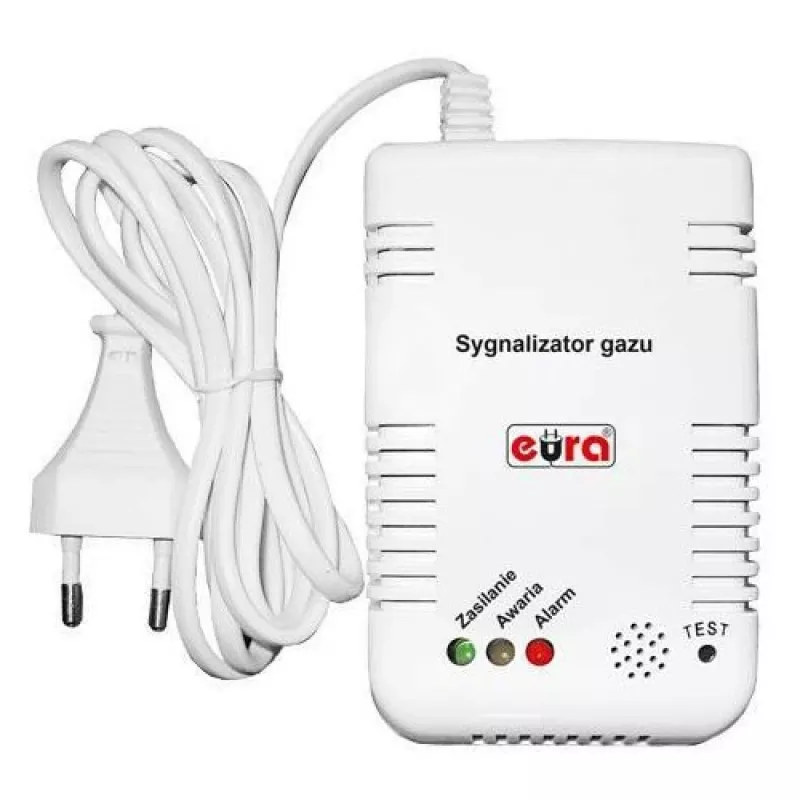

EURA GD-00A2 (GS-860) aardgas- en lpg-sensor 230V AC

The EURA GD-00A2 (GS-860) is a reliable gas sensor designed to detect natural gas (methane) and LPG (propane/butane) in residential and commercial environments. It provides early warning of gas leaks, helping to prevent accidents and ensure safety.

Advantages

This sensor offers dual-gas detection, a loud 85 dB alarm, and easy wall-mount installation. Its semiconductor sensor ensures fast response times, and the relay output allows integration with external safety systems.

Suitable for

• Homes with natural gas or LPG appliances
• Kitchens, boiler rooms, and utility areas
• Small commercial spaces such as restaurants and workshops

Key specifications

• Detected Gases: Natural Gas (Methane), LPG (Propane, Butane)
• Sensor Type: Semiconductor
• Alarm Threshold: 10% LEL for both gases
• Alarm Indication: Acoustic (85 dB) and Optical (Red LED)
• Power Supply: 230V AC, 50Hz
• Power Consumption: < 3 W
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 30% to 90% RH (non-condensing)
• Response Time: < 30 seconds
• Warm-up Time: ~180 seconds
• Relay Output: NC/NO contacts, 230V AC, 5A
• Installation: Wall-mounted
• Housing Material: ABS Plastic
• Certifications: CE
• Sensor Lifespan: Approximately 5 years

Recommendations

For optimal safety, install the sensor in accordance with local regulations and manufacturer guidelines. Test the alarm monthly and replace the unit after 5 years or as recommended.
