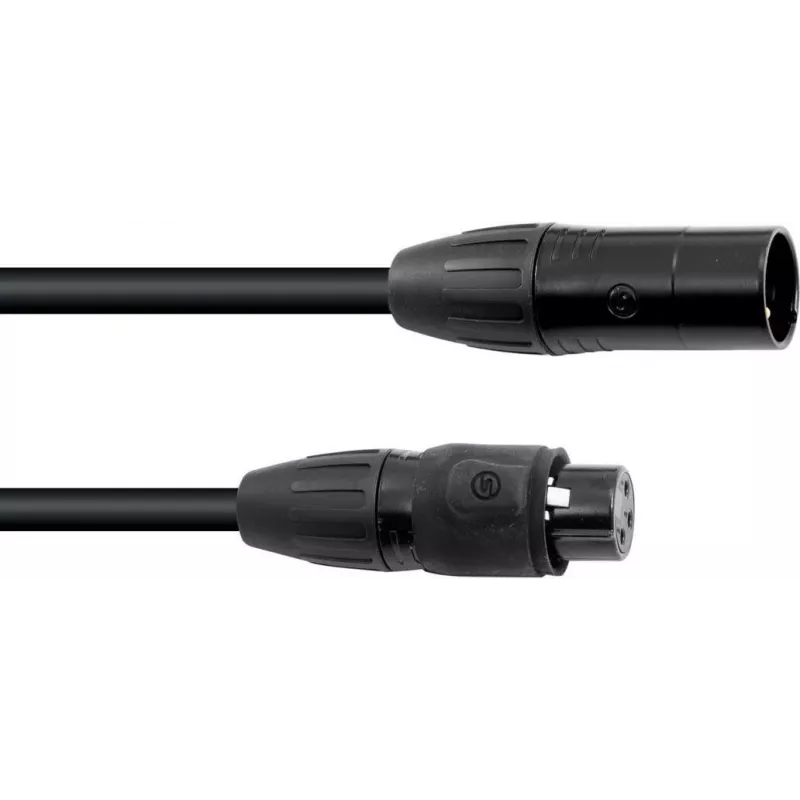

EUROLITE DMX-kabel SEC-1 IP65 3-pin XLR 10m zwart outdoor

Outdoor events and installations demand reliable DMX signal transmission, but standard cables often fail when exposed to moisture, dust, or rough handling. The EUROLITE DMX Cable SEC-1 IP65 solves this by combining robust construction with IP65-rated connectors, ensuring your lighting control remains stable even in challenging environments.

Who is it for

This cable is ideal for event technicians, rental companies, and installers who need dependable DMX512 connectivity for outdoor stages, architectural lighting, or temporary setups where weather resistance is critical.

Main features

• IP65-rated 3-pin XLR connectors protect against dust and water jets
• 10-meter length provides ample reach for most stage and truss configurations
• Robust PVC jacket and braided shielding ensure durability and signal integrity
• 110-ohm impedance matches DMX512 standards for reliable data transfer
• Flexible design allows easy routing even in tight spaces

Specifications

• Cable type: DMX cable
• Connector 1: XLR 3-pin male (IP65)
• Connector 2: XLR 3-pin female (IP65)
• Length: 10 m
• Colour: Black
• IP rating: IP65
• Impedance: 110 Ohm
• Conductor cross-section: 2 x 0.22 mm²
• Number of conductors: 3 (2 data, 1 shield)
• Shielding: Braided shield
• Jacket material: Robust PVC
• Cable diameter: 6.5 mm
• Connector housing: Metal
• Series: SEC-1

Tips

For best performance, always use cables with matching impedance and avoid running DMX lines parallel to power cables over long distances. When connecting outdoors, ensure all connectors are fully seated and consider using additional weatherproofing for extended exposure.
