EUROLITE set Pixel Ball 360° 15x 1m MK2 incl. Madrix Start LED-effect

Creating dynamic, full-sphere LED visuals for events or installations often means wrestling with complex pixel mapping and limited viewing angles. The EUROLITE Set Pixel Ball 360° 15x 1m MK2 with Madrix Start solves this by delivering a complete, ready-to-run system: fifteen 1-meter pixel balls, each with 16 RGB SMD 5050 LEDs arranged for true 360° visibility, a dedicated controller, and Madrix Start software for intuitive pixel mapping and effects.

Who is it for

This set is ideal for lighting designers, event technicians, DJs, and rental companies who need an eye-catching, spherical LED effect without building a system from scratch. It suits indoor stage productions, club installations, architectural accents, and creative art projects where immersive, all-around light is required.

Main features

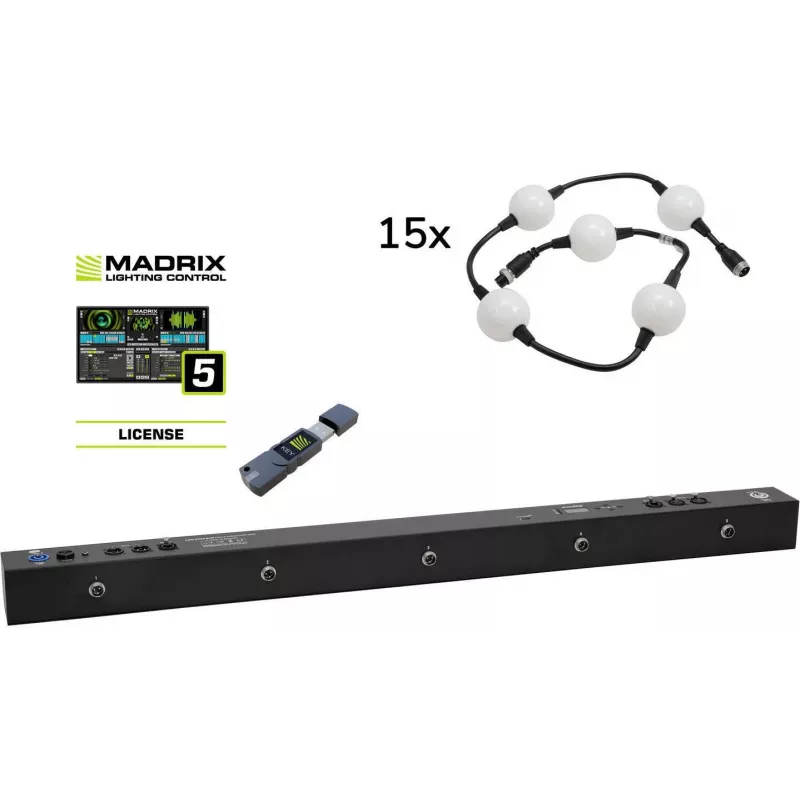

• Complete set: 15x Pixel Ball 360° 1m MK2, 1x Pixel Ball Controller, 1x Madrix Start software license
• Each pixel ball: 1 meter length, 16 RGB SMD 5050 LEDs, 62.5 mm pixel pitch
• True 360° viewing angle for uniform light distribution from every direction
• Control via DMX512, Art-Net, or sACN for flexible integration
• Madrix Start software enables easy pixel mapping, effects generation, and live control
• Robust polycarbonate balls with metal controller housing, IP20 for indoor use
• Hanging eyelets on each ball for simple rigging

Specifications

• Set components: 15x Pixel Ball 360° 1m MK2, 1x Pixel Ball Controller, 1x Madrix Start license
• Pixel ball length: 100 cm (1 m)
• LED type: RGB SMD 5050
• Pixels per ball: 16
• Pixel pitch: 62.5 mm
• Viewing angle: 360°
• Control modes: DMX512, Art-Net, sACN
• Max DMX channels: 720
• Controller power input: AC 100-240 V, 50/60 Hz
• Max total power consumption: 300 W
• Controller data input: RJ45 (Ethernet)
• Controller data output: 4-pin XLR
• Material: Polycarbonate (balls), metal (controller)
• IP rating: IP20 (indoor use only)
• Mounting: Hanging via eyelets

Tips

Use Madrix Start to create custom pixel effects and map them across the 15 balls for synchronized shows. Ensure the controller is placed in a dry, ventilated area and use proper Ethernet infrastructure for reliable Art-Net/sACN communication. For best visual impact, hang the balls at varying heights to fill the space with 360° light.
