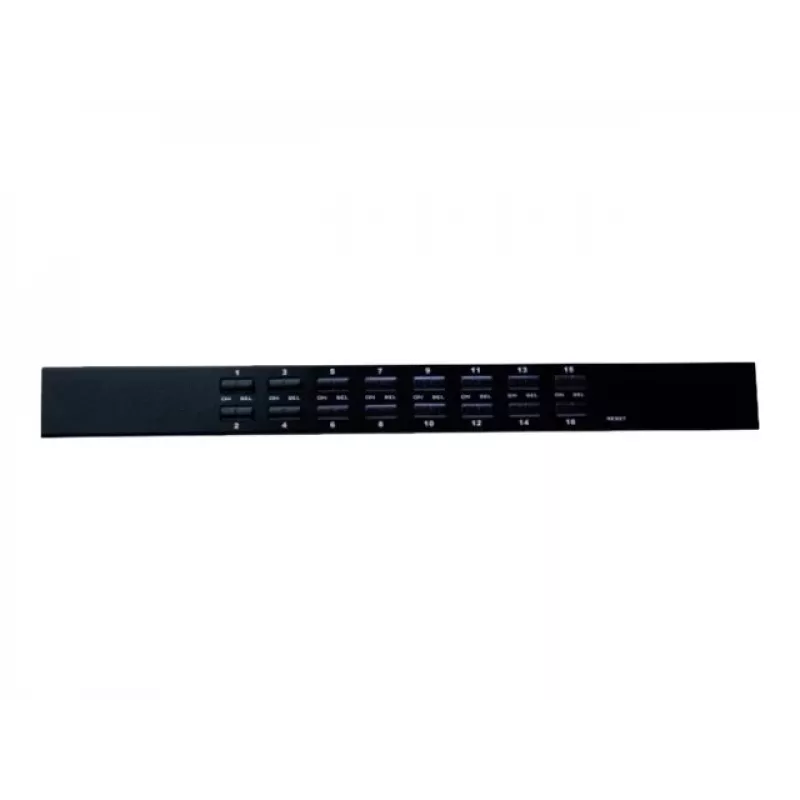

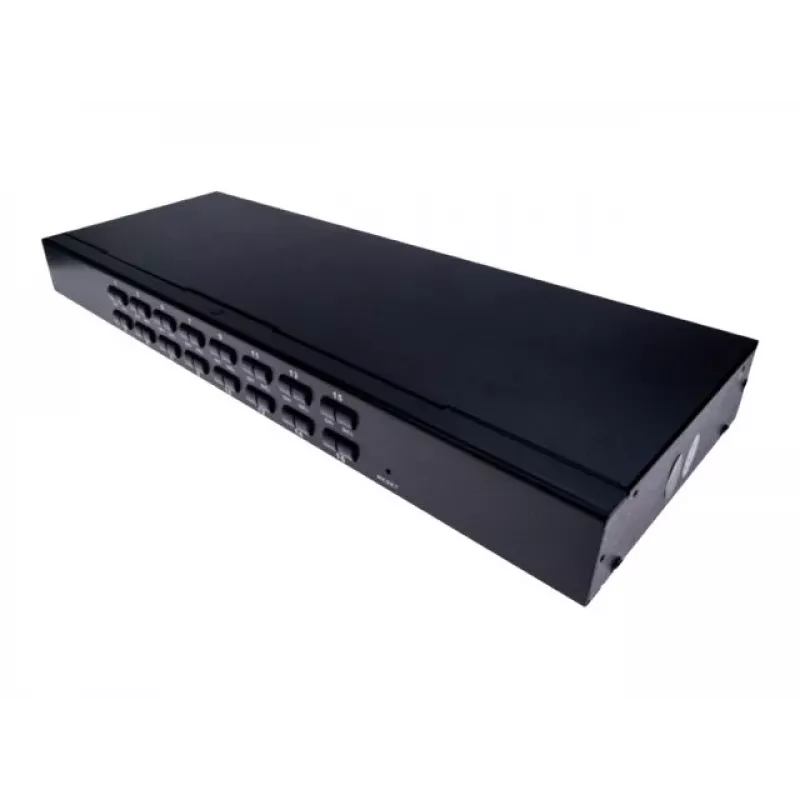

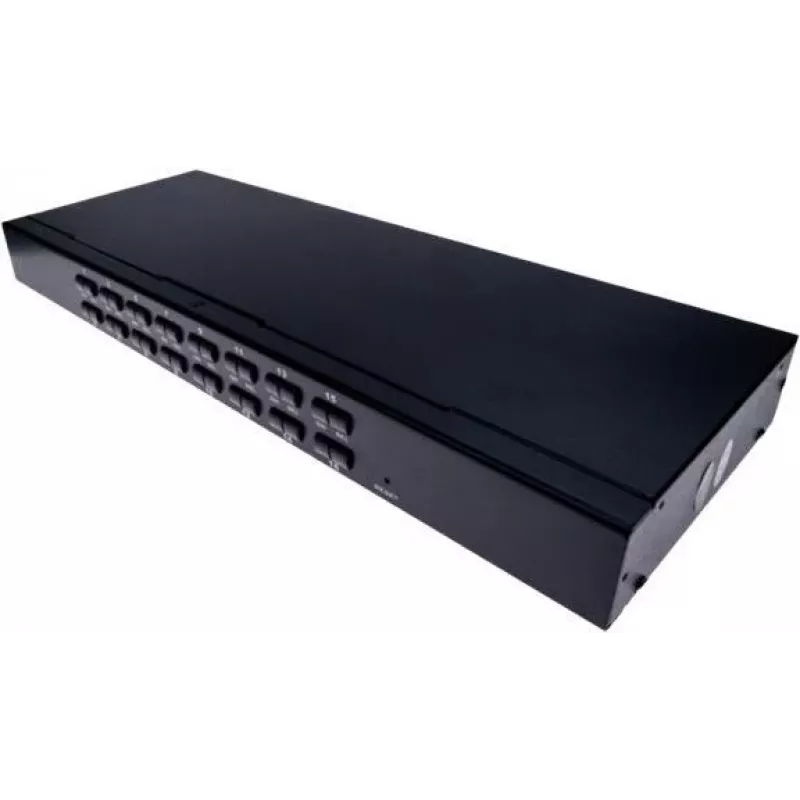

EXERTIS CONNECT 16-poorts USB/PS/2 KVM-switch met OSD en IP-toegang op afstand 66310

Manage up to 16 servers locally or over IP with this rack-mountable KVM switch, supporting both USB and PS/2 connections and a maximum resolution of 2048 x 1536 at 60Hz.

Overview

The EXERTIS CONNECT 66310 is a 16-port KVM switch that consolidates control of multiple servers from a single console. It supports mixed USB and PS/2 interfaces, allowing seamless integration with legacy and modern hardware. An on-screen display (OSD) menu simplifies server selection and configuration, while hotkey and front-panel push buttons provide alternative switching methods. The unit is IP-ready, enabling remote management over LAN/WAN with multi-level user access, IP/MAC filtering, and SSL encryption for secure sessions.

What stands out

• 16 computer ports with USB and PS/2 support
• IP-based remote access for off-site management
• On-screen display (OSD) for intuitive control
• Rack-mountable in 1U standard enclosure
• Daisy chain support for scalability
• Firmware upgradeable for future enhancements

Technical details

• Console ports: 1x VGA (HD-15), 2x USB Type-A (keyboard, mouse)
• Computer ports: 16x VGA (HD-15), 16x USB Type-B, 16x PS/2 (keyboard/mouse)
• Maximum video resolution: 2048 x 1536 @ 60Hz
• Switching methods: hotkey, OSD menu, front panel push buttons
• Security: multi-level user access, IP/MAC filtering, SSL encryption
• Power: external DC power adapter
• LED indicators: power, selected port, link status
• Hot-pluggable for USB devices and KVM cables
• OS independent: Windows, Linux, Mac OS, Sun Solaris

Our verdict

A robust and secure KVM solution for data centers needing local and remote control of up to 16 servers, with legacy and modern interface support.
