EXERTIS CONNECT adapter Mini DisplayPort stekker naar VGA bus actief 1920x1200 zwart 127433

Supports resolutions up to 1920 x 1200 @ 60 Hz, converting a digital Mini DisplayPort signal to analog VGA with an active Parade PS8111 chipset.

Overview

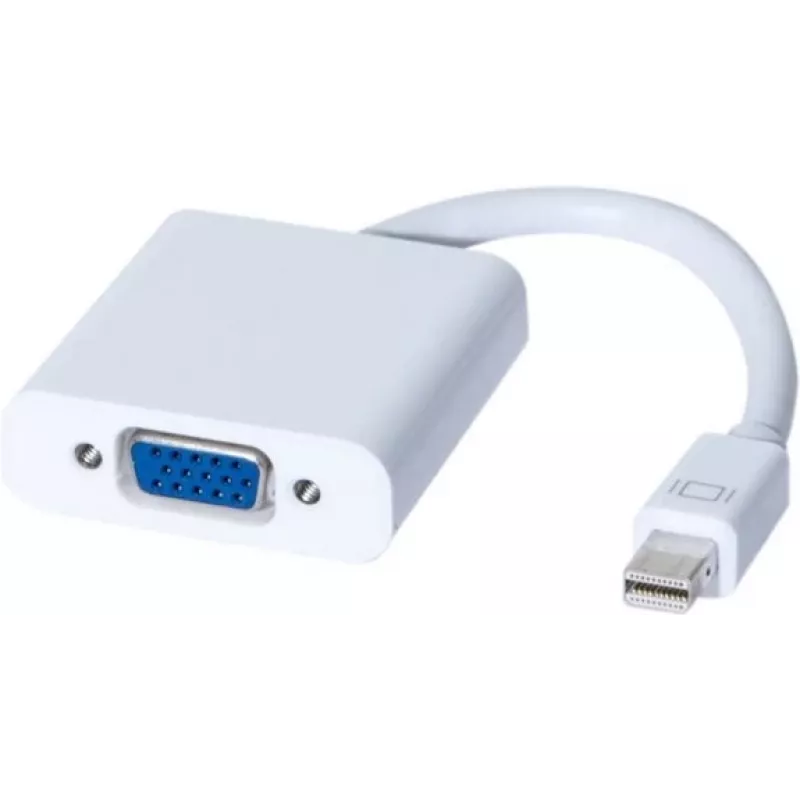

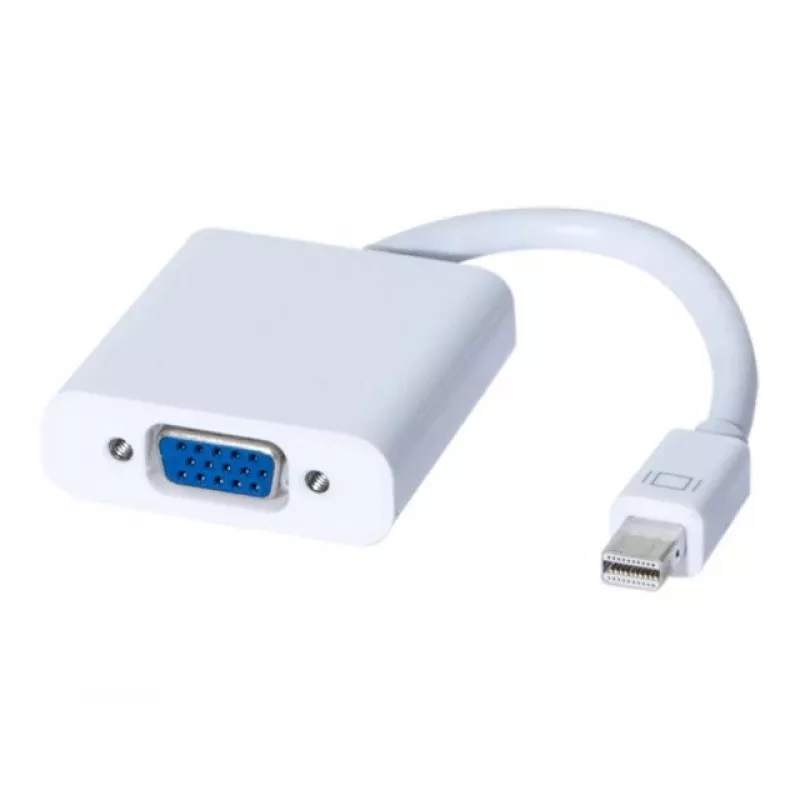

This adapter connects a Mini DisplayPort source to a VGA display. It features a Mini DisplayPort male connector on one end and a VGA female port on the other, allowing you to use a standard VGA cable (not included) to connect to monitors, projectors, or other VGA displays. The active conversion ensures compatibility with a wide range of devices, including those that do not output dual-mode DisplayPort signals.

What stands out

• Active adapter with Parade PS8111 chipset for reliable signal conversion.
• Supports high resolutions up to 1920 x 1200 (WUXGA) and 1080p.
• Bus-powered via Mini DisplayPort, no external power needed.
• Gold-plated connectors for optimal signal transfer and corrosion resistance.
• Compact design with a short cable, ideal for travel and tight spaces.

Technical details

• Input: Mini DisplayPort male (1.1a)
• Output: VGA female
• Maximum resolution: 1920 x 1200 @ 60 Hz
• Signal: Digital to analog
• Audio support: No
• Power: Bus-powered
• Hot plug detection: Supported
• Color: Black
• Housing material: Plastic
• Connector plating: Gold-plated
• Cable length: 10 cm
• Plug and play: Yes
• OS compatibility: OS independent

Our verdict

A reliable active adapter for connecting modern Mini DisplayPort devices to legacy VGA displays, with solid build quality and high-resolution support.
