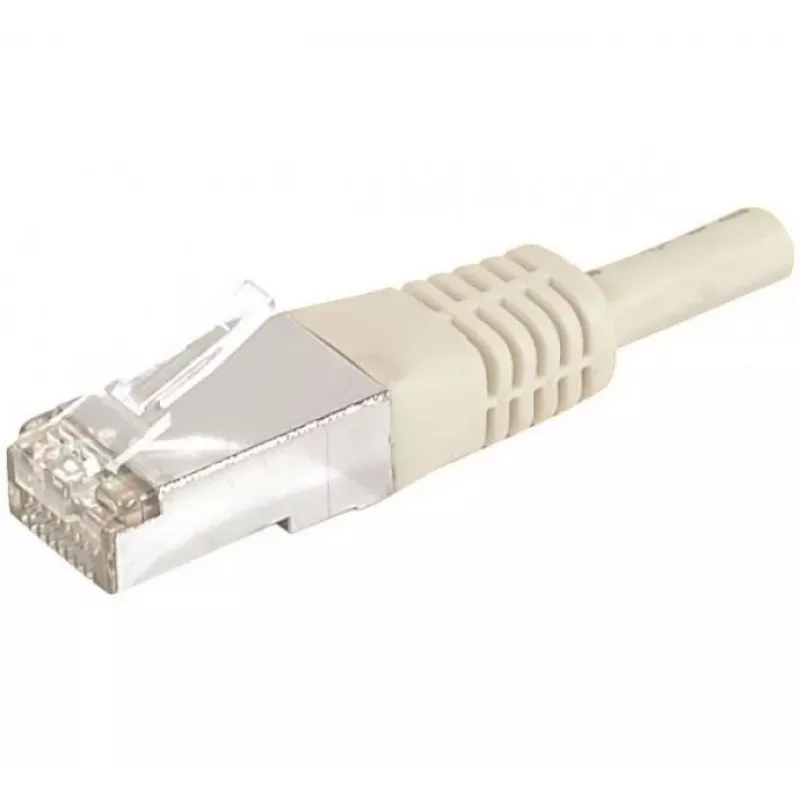

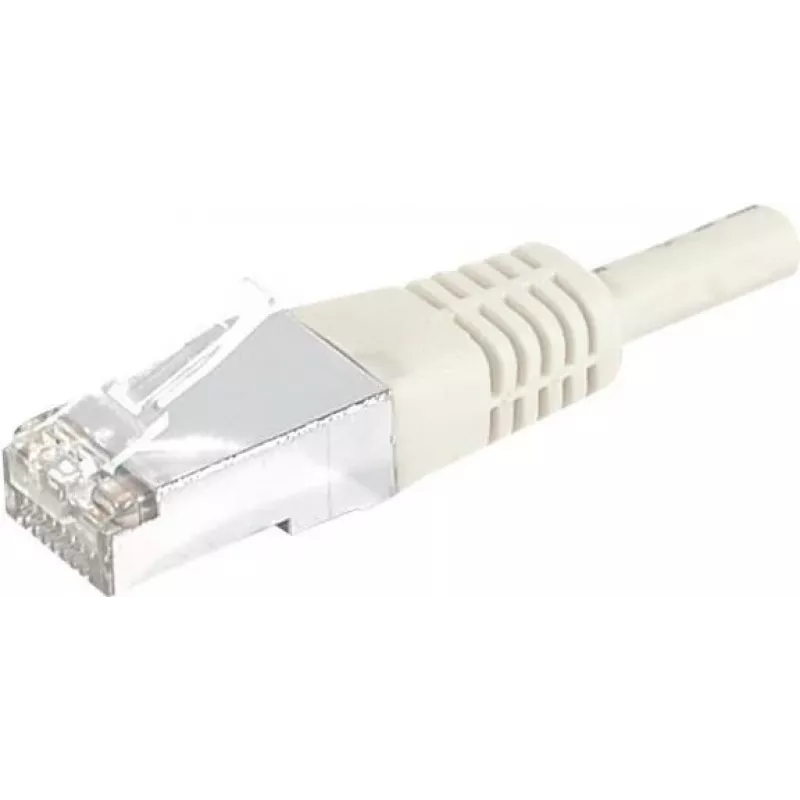

EXERTIS CONNECT Cat.6a F/UTP patchkabel, 0,5m, grijs, 10 Gbps, Slim Bend Protection 859502

This EXERTIS CONNECT patch cable stands out with its slim bend protection, allowing tight bends behind desks or in patch panels without sacrificing the 10 Gigabit performance of Cat.6a. The F/UTP shielding and LSZH jacket make it suitable for high-density office and data centre environments where space and safety are critical.

Highlights

• Cat.6a performance up to 500 MHz and 10 Gbps data transfer
• F/UTP foil shielding reduces alien crosstalk
• Slim bend protection for easy routing in tight spaces
• LSZH jacket for low smoke and halogen-free safety
• Gold-plated RJ45 connectors for reliable contact

In daily use

At 0.5 m, this cable is perfect for patching between switches and patch panels or connecting devices in close proximity. The stranded copper conductors (AWG 26/7) provide flexibility, while the slim boot design allows adjacent ports to remain accessible. It supports PoE up to 4PPoE, making it future-proof for powered devices.

Full specifications

• Category: Cat.6a (Class EA)
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Length: 0.5 m
• Colour: Grey
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector Type: RJ45 (8P8C)
• Connector Plating: Gold-plated contacts (50µ)
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wiring Standard: TIA/EIA 568B
• Bend Protection: Yes, slim design
• PoE Support: PoE, PoE+, 4PPoE/PoE++
• Halogen-free: Yes
• Cable Construction: Stranded, 4 twisted pairs
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -20°C to +60°C

Final note

A compact, high-performance Cat.6a patch cable with slim bend protection and LSZH jacket, ideal for space-constrained installations.
