Exertis Connect Cat.6A outdoor RJ45 overspanningsbeveiliging IP67 (253188)

With a 10 kA surge current rating (8/20µs), this inline surge protector shields outdoor Ethernet links from lightning-induced transients and overvoltage events.

Overview

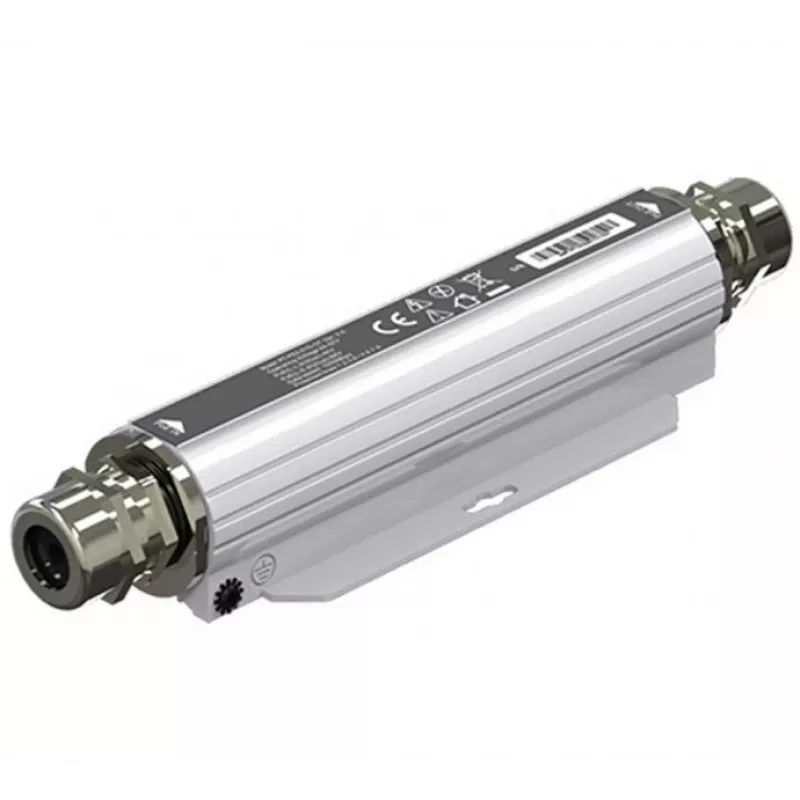

The Exertis Connect 253188 is an inline surge protector for RJ45 Ethernet cables, built for outdoor and industrial use. It supports Cat.6A, Cat.6, Cat.5e, and Cat.5 cabling, and passes 10GBASE-T signals up to 10 Gbps. The IP67-rated housing is dustproof and water-resistant, and the integrated grounding terminal provides a direct path to earth.

What stands out

• 10 kA surge current capacity (8/20µs) for robust protection
• IP67 environmental rating for outdoor deployment
• Supports PoE, PoE+, and UPoE up to 60V DC
• Low insertion loss (<0.5 dB at 100 MHz) preserves signal integrity
• Wide operating temperature range: -40°C to +85°C

Technical details

• Connector: RJ45 jack to RJ45 jack, shielded
• Surge protection voltage: line-to-ground <7.5V, line-to-line <60V
• Return loss: >20 dB at 100 MHz
• Housing: die-cast metal / UV-resistant plastic
• Installation: inline

Our verdict

A dependable surge protector for outdoor Ethernet runs, combining high surge capacity with an IP67-rated enclosure and full PoE support.
