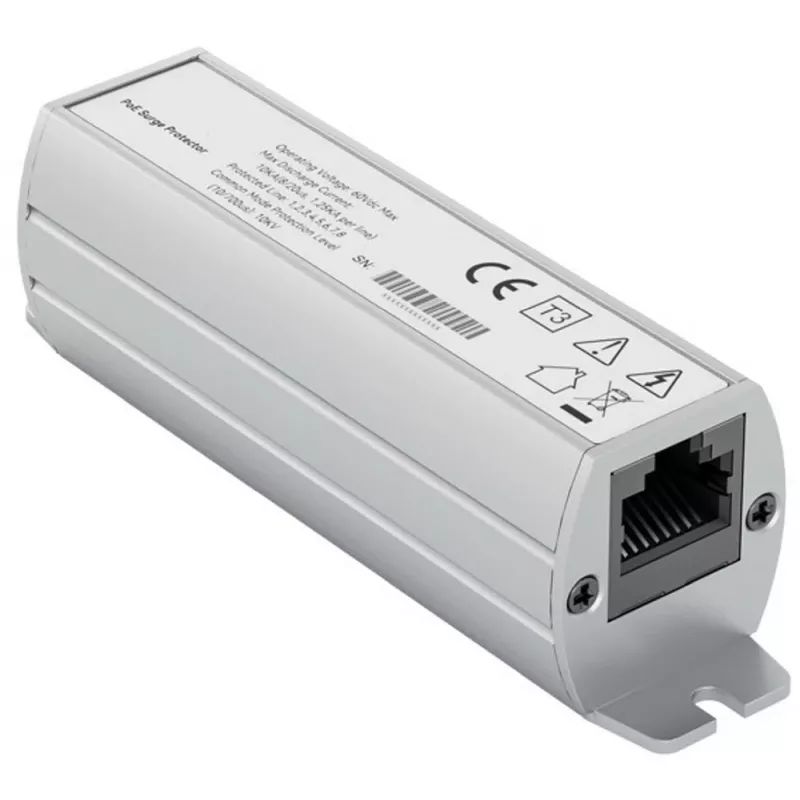

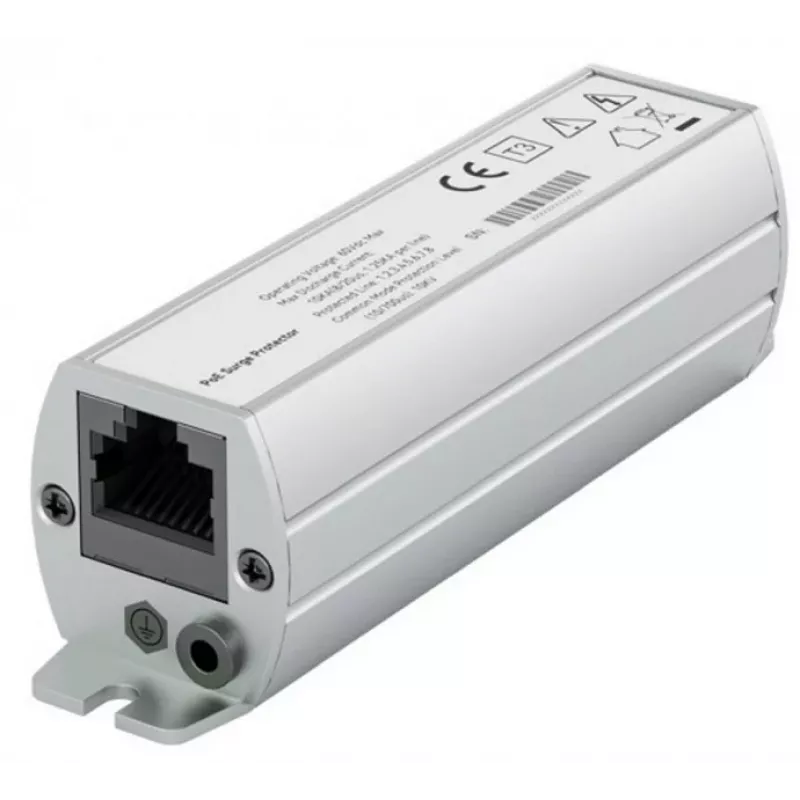

Exertis Connect Cat.6A RJ45 overspanningsbeveiliging, binnen, metalen behuizing, 10Gbps, PoE+ 253187

Protect your high-speed network links from damaging voltage spikes with this in-line surge protector for Cat.6A RJ45 connections. Ideal for offices, industrial facilities, and home networks where 10 Gigabit Ethernet runs between buildings or near outdoor entry points, it safeguards switches, routers, and PoE devices from transient overvoltages.

Key specifications

• Supports Cat.6A, Cat.6, and Cat.5e cabling
• 10GBASE-T compatible (10 Gigabit Ethernet)
• RJ45 female to RJ45 female connections
• Metal housing for durability
• Wall-mountable or in-line installation
• Supports IEEE 802.3af/at PoE and PoE+
• Nominal discharge current: 2.5 kA (8/20 µs)
• Max discharge current: 5 kA (8/20 µs)
• Voltage protection level: <150 V line-line, <600 V line-ground
• Response time: <1 ns
• Operating temperature: -40°C to +80°C

Why choose it

This surge protector combines high surge handling with minimal signal interference, ensuring your network performance remains uncompromised. The metal housing provides robust protection, and the screw terminal grounding ensures reliable dissipation of surges. Its compact design allows for easy integration into existing cable runs.

Ideal use cases

• Protecting Ethernet links between buildings
• Safeguarding PoE security cameras and access points
• Industrial Ethernet applications
• Data center edge connections

Good to know

The unit is designed for indoor use and is backward compatible with lower cable categories. It does not require power and operates transparently on the data line.
