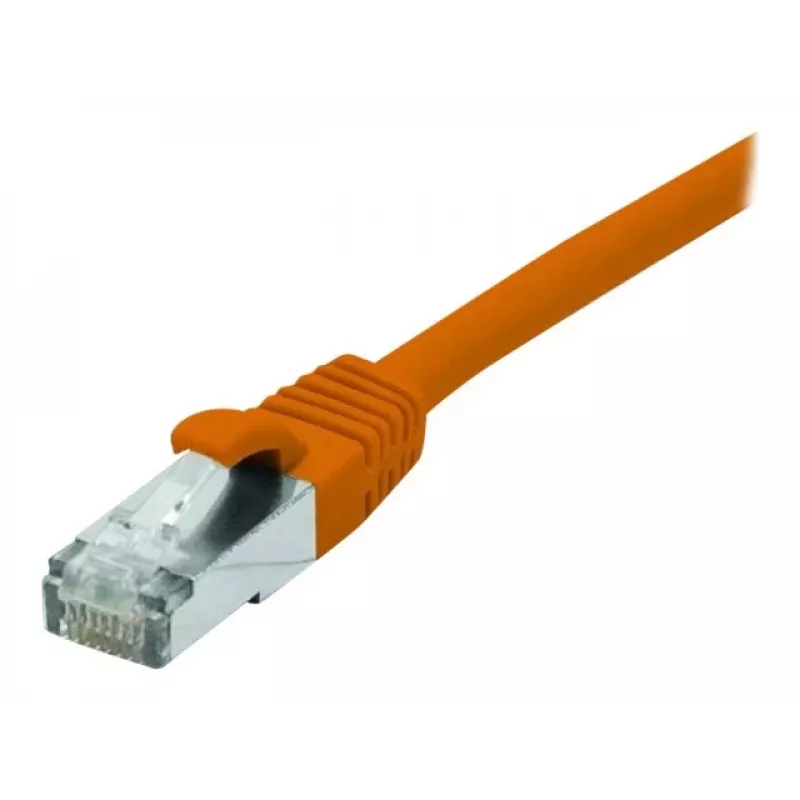

EXERTIS CONNECT Cat 6A S/FTP patchkabel, 1,5 m, oranje 858533

Network technicians and IT professionals in office and data centre environments rely on this EXERTIS CONNECT patch cable for high-speed 10 Gigabit Ethernet connections. The slim snagless boot design allows for easy installation in high-density patch panels and switches, while the slim bend protection reduces strain at the connector.

Key specifications

• Category: Cat 6A (Class EA)
• Shielding: S/FTP (PiMF - Pairs in Metal Foil)
• Length: 1.5 m
• Colour: Orange
• Connector: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated contacts
• Conductor: Copper, AWG 26/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Bandwidth: 500 MHz
• Data rate: Up to 10 Gbps
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Wiring: TIA/EIA 568B
• Outer diameter: 6.0 mm
• Operating temperature: -20°C to +60°C
• Flame retardancy: IEC 60332-1

Why choose it

The S/FTP shielding with individually foil-wrapped pairs and an overall braid provides excellent protection against alien crosstalk, ensuring reliable performance in electrically noisy environments. The LSZH jacket emits low smoke and no halogen in case of fire, making it suitable for public buildings and confined spaces.

Ideal use cases

• 10GBASE-T network connections in data centres
• High-density patching in server rooms
• PoE applications for IP cameras, access points, and VoIP phones
• Installations requiring low smoke and halogen-free cabling

Good to know

The slim snagless boot protects the locking tab during installation and removal without hindering access in tight spaces. The stranded conductors provide flexibility for frequent re-patching.
