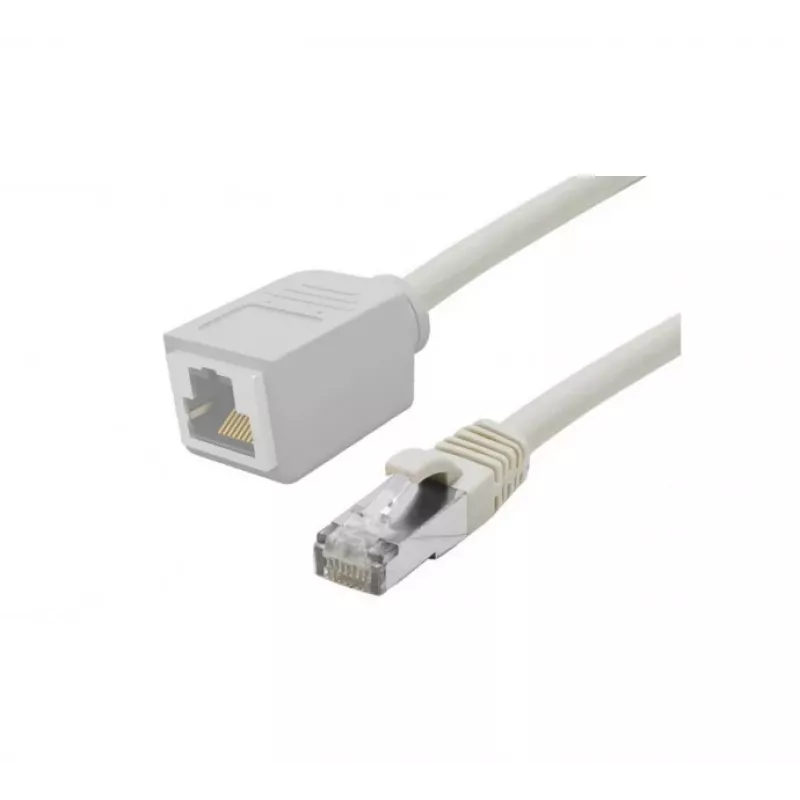

EXERTIS CONNECT Cat. 6A S/FTP patchkabel-verlenging, 2 m, grijs, halogeenvrij, rasterlipbescherming 858751

When a standard patch cable is just too short and you need a reliable, high-performance link, this Cat. 6A extension cable bridges the gap without compromising signal integrity. It is built for 10-Gigabit Ethernet networks where headroom and shielding matter.

Who is it for

Network technicians, IT administrators, and advanced home users who need to extend an existing RJ45 connection in data centres, offices, or structured cabling environments. It is especially suited for installations that demand halogen-free materials and protection against accidental disconnection.

Main features

• Category 6A performance with S/FTP shielding (pairs in metal foil, overall braid) for excellent alien crosstalk resistance.
• Supports data rates up to 10 Gbps and bandwidth up to 500 MHz.
• RJ45 male to RJ45 female connectors with gold-plated contacts (50µ) for reliable mating.
• Halogen-free LSZH jacket for improved fire safety in enclosed spaces.
• Integrated latch protection on the RJ45 plug prevents snagging and accidental disconnection.
• Stranded 26 AWG copper conductors for flexibility and durability.
• Fully compatible with Power over Ethernet (PoE, PoE+, 4PPoE).

Specifications

• Cable category: Cat. 6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 2.0 m
• Colour: Grey
• Connector 1: RJ45 male
• Connector 2: RJ45 female
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Jacket material: LSZH (halogen-free)
• Impedance: 100 Ohm
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Tips

For best performance, keep the total channel length within the limits specified for Cat. 6A cabling. Avoid sharp bends and do not exceed the minimum bend radius of the cable.
