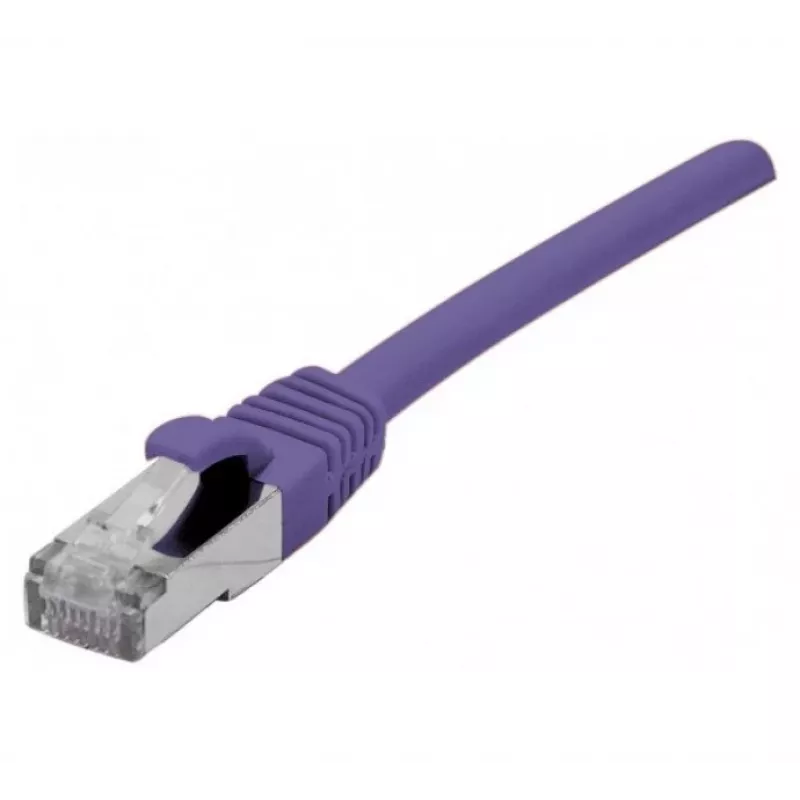

EXERTIS CONNECT Cat 6A S/FTP patchkabel, violet, 3,0 m, slimme snagless-mantel 858519

This violet Cat 6A patch cable stands out with its slim snagless boot, designed to protect the locking tab while fitting easily into high-density patch panels and tight spaces. The S/FTP shielding with pairs in metal foil (PiMF) ensures reliable 10 Gigabit Ethernet performance even in electrically noisy environments.

Highlights

• Cat 6A performance up to 500 MHz bandwidth
• S/FTP shielding: overall braid plus foil on each pair
• Gold-plated RJ45 connectors (50µ") for corrosion resistance
• LSZH jacket: low smoke, zero halogen, flame retardant
• Slim snagless boot reduces snagging during moves and changes

In daily use

The 3-metre length is ideal for connecting workstations, servers, or switches in structured cabling systems. Stranded AWG 26/7 copper conductors provide flexibility for frequent re-routing, while the 100 Ohm impedance and TIA/EIA 568B wiring ensure compatibility with all Ethernet standards up to 10GBASE-T.

Full specifications

• Cable length: 3.0 m
• Cable standard: Cat 6A (Class EA)
• Cable shielding: S/FTP (PIMF)
• Cable type: Ethernet Patch Cable
• Connector type: RJ45 Male to RJ45 Male
• Connector plating: Gold-plated contacts (50µ")
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Boot type: Slim Snagless (Bend Protection)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring standard: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2
• Halogen free: Yes
• Flame retardant: Yes (IEC 60332-1-2)
• Operating temperature: -20°C to 60°C
• Outer diameter: Approx. 6.0 mm
• Impedance: 100 Ohm

Final note

Engineered for high-density environments where space is at a premium, this cable delivers 10G performance without the bulk of traditional boots.
