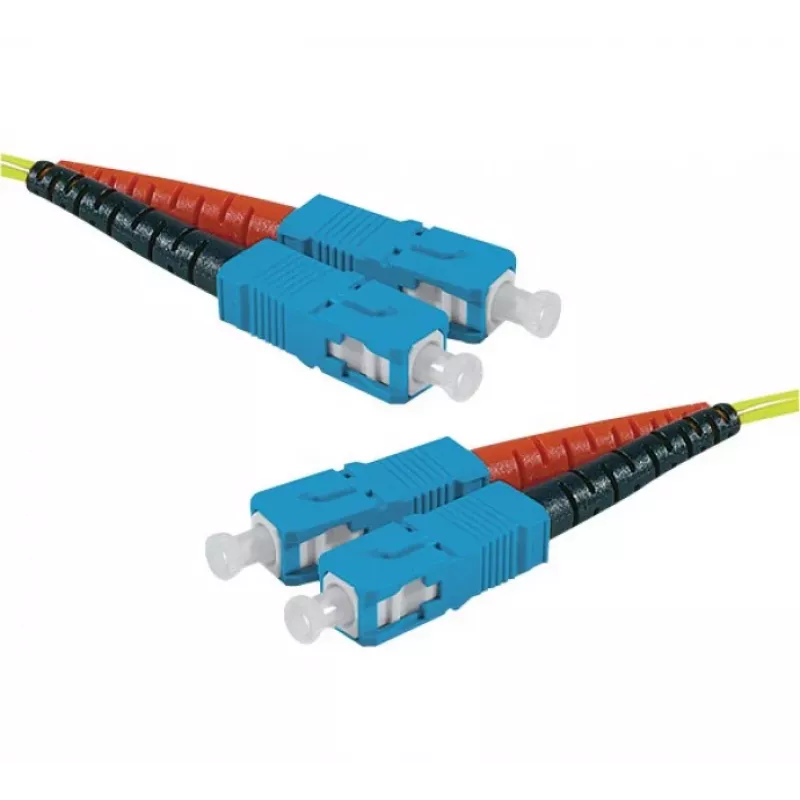

Exertis Connect HD LWL-patchkabel, OS2 singlemode, SC duplex naar SC duplex, UPC, geel, 15 m 392877

Data centre technicians and network engineers often need a reliable, high-density fibre link between patch panels and active equipment. This 15-metre OS2 single-mode patch cable from Exertis Connect provides a stable SC Duplex to SC Duplex connection with UPC polished connectors, ensuring low insertion loss and high return loss for demanding fibre optic infrastructures.

Key specifications

• Fibre type: OS2 single-mode, 9/125 µm core/cladding
• Connectors: SC Duplex to SC Duplex, UPC polish
• Length: 15 m
• Cable diameter: 2 mm, high-density (HD) design
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 50 dB
• Attenuation: ≤ 0.4 dB/km at 1310 nm, ≤ 0.3 dB/km at 1550 nm
• Standards: IEC 61754, IEC 61755, ISO 11801

Why choose it

The high-density construction with a slim 2 mm diameter allows for efficient cable management in crowded racks. The yellow jacket provides easy identification of single-mode fibre, while the UPC polish ensures excellent optical performance.

Ideal use cases

• Data centre interconnects
• Telecom central offices
• Enterprise backbone links
• Fibre-to-the-desk applications

Good to know

This cable is compliant with IEC and ISO standards for fibre optic interconnects, ensuring compatibility and reliability in professional installations.
