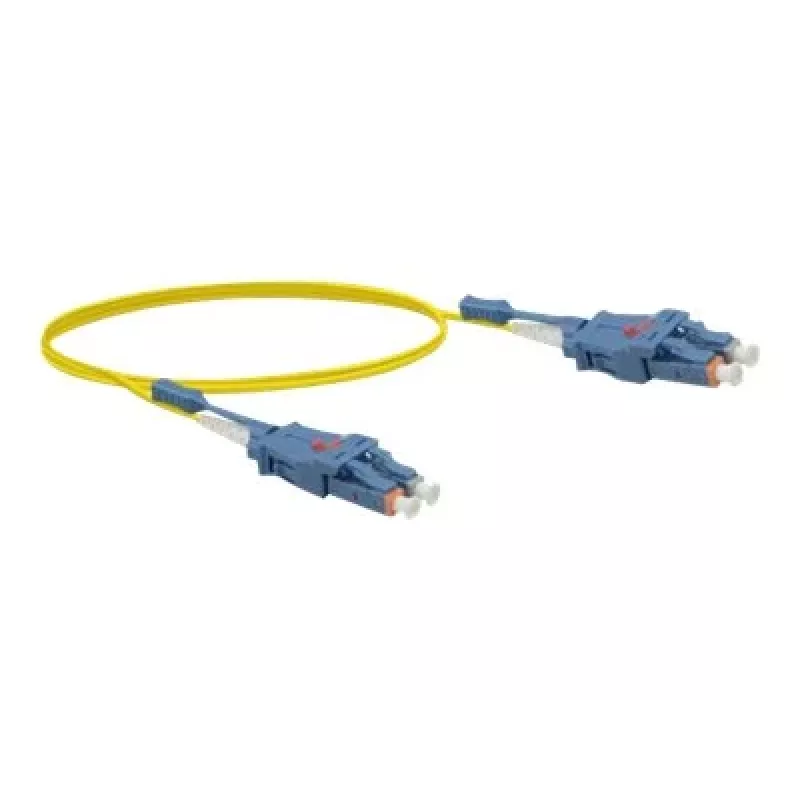

Exertis Connect LC/UPC naar LC/UPC Singlemode OS2 Duplex Glasvezel-patchkabel, 10m, Geel, LSZH 392936

This 10-metre Exertis Connect patch cable uses OS2 singlemode fibre with LC/UPC connectors on both ends, making it a dependable choice for high-speed backbone links and long-distance data transmission. Its duplex construction keeps transmit and receive paths together, while the 9/125 µm core and cladding preserve signal integrity over extended runs.

Highlights

• LC/UPC male connectors on both ends for secure, low-loss mating
• OS2 singlemode fibre supports long-reach applications
• Duplex cable with 2 mm diameter and LSZH yellow jacket
• Halogen-free jacket reduces toxic smoke in fire conditions

In daily use

The yellow LSZH jacket stands out in crowded racks and meets low-smoke, zero-halogen requirements for indoor installations. With a typical insertion loss of 0.3 dB or less and return loss of 50 dB or better, this cable maintains clean signal paths in data centres, telecom rooms, and enterprise networks. The 10-metre length provides flexibility for patching between panels, switches, and transceivers without excess slack.

Full specifications

• Connector 1: LC/UPC male
• Connector 2: LC/UPC male
• Fibre type: OS2 singlemode
• Core/cladding diameter: 9/125 µm
• Cable length: 10 m
• Cable diameter: 2 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C

Final note

Engineered for stable singlemode performance, this patch cable is a straightforward solution for fibre links that demand low loss and reliable connectivity.
