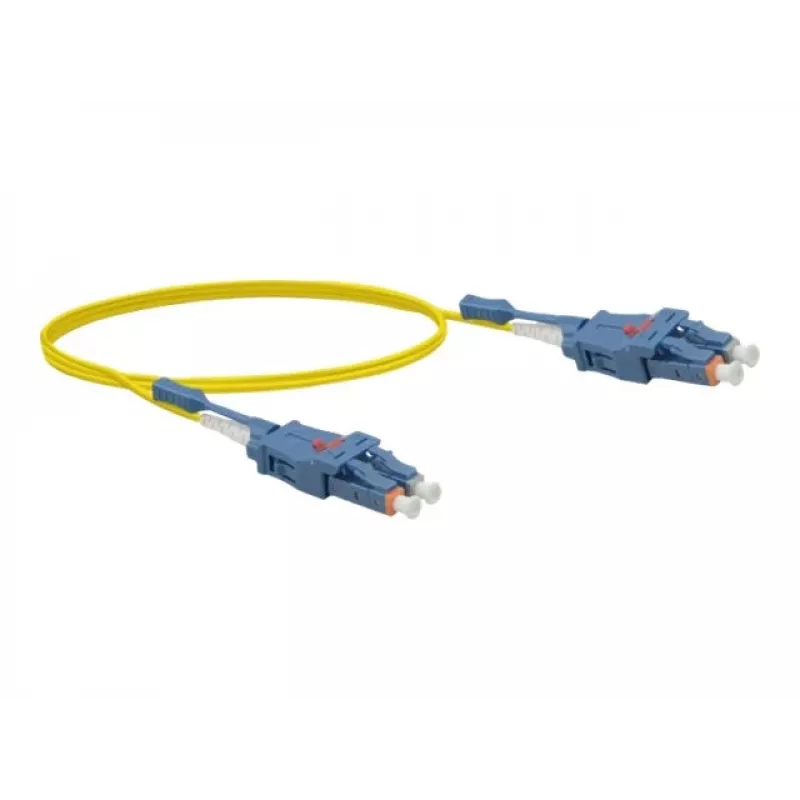

Exertis Connect LC/UPC naar LC/UPC Uniboot Single-Mode OS2 Duplex Glasvezel-patchkabel, 1m, Geel 392931

This Exertis Connect patch cable stands out with its uniboot design, combining both duplex fibres in a single 2 mm jacket for easier handling and higher port density. The LC/UPC to LC/UPC connectors ensure precise alignment, while the single-mode OS2 fibre supports long-distance, high-bandwidth links.

Highlights

• Uniboot duplex construction reduces cable bulk and simplifies polarity management
• Low smoke zero halogen (LSZH) jacket for improved fire safety in enclosed spaces
• Yellow jacket colour for quick identification of single-mode fibre
• 9/125 µm core/cladding diameter meets OS2 standards for low attenuation
• 1.0 m length suits patching in racks and enclosures

In daily use

Ideal for data centres, enterprise networks, and telecom rooms, this cable connects SFP/SFP+ transceivers, fibre panels, and equipment with LC interfaces. The uniboot design keeps cable runs tidy, while the LSZH jacket reduces toxic smoke in case of fire. The yellow colour clearly marks it as single-mode, preventing accidental mixing with multimode cables.

Full specifications

• Connector 1: LC/UPC male
• Connector 2: LC/UPC male
• Cable length: 1.0 m
• Cable diameter: 2 mm
• Fibre type: Single-mode OS2
• Core/cladding diameter: 9/125 µm
• Jacket material: LSZH
• Cable construction: Duplex, Uniboot
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C

Final note

A reliable, high-performance fibre patch cable for demanding network environments, combining uniboot convenience with OS2 performance.
