EXERTIS CONNECT Uniboot glasvezel-patchkabel, 50/125 µm OM4, LC Duplex naar LC Duplex, UPC, erika violet, 3,0 m 392953

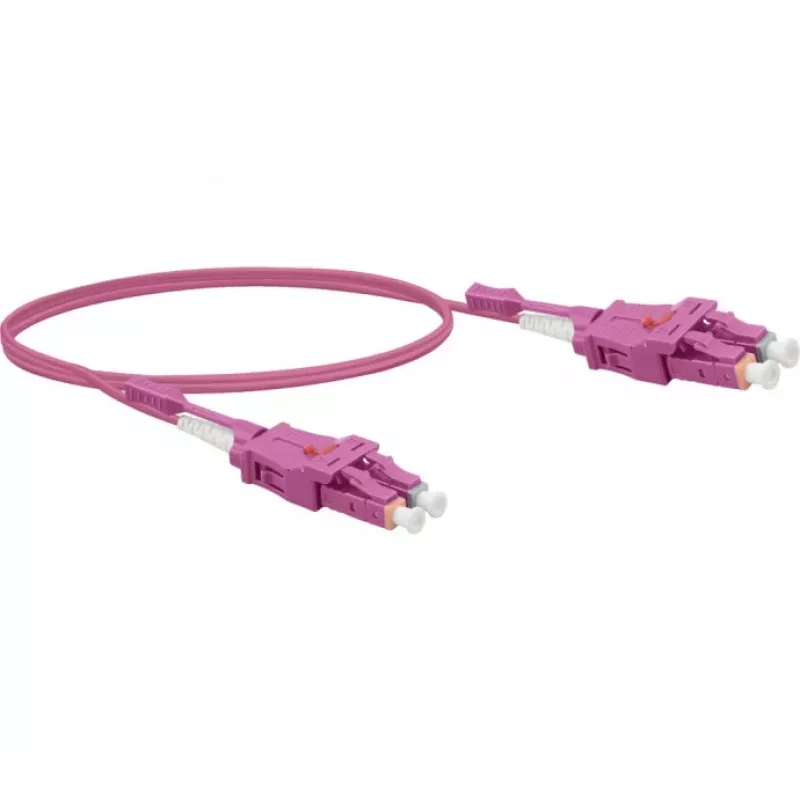

This uniboot fibre patch cable combines two fibres in a single jacket, reducing cable bulk in high-density patching areas. The OM4 multimode fibre supports 40/100 GbE over short distances, and the LC duplex connectors with UPC polish ensure low insertion loss for reliable connections.

Highlights

• Uniboot design: two fibres in one cable for easier routing and improved airflow.
• OM4 50/125 µm multimode fibre: effective modal bandwidth of 4700 MHz·km at 850 nm.
• LC duplex to LC duplex connectors with UPC polish: typical insertion loss below 0.3 dB.
• LSZH jacket in Erika Violet for easy identification and low smoke emission.
• 3.0 m length, ideal for patching within racks or between adjacent cabinets.

In daily use

The uniboot construction keeps cable management tidy, and the violet jacket clearly marks it as OM4. The UPC connectors provide a stable physical contact, suitable for high-speed data centre links.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: LC Duplex
• Connector 2: LC Duplex
• Connector polish: UPC
• Cable length: 3.0 m
• Jacket colour: Erika Violet
• Cable design: Uniboot
• Number of fibres: 2
• Jacket material: LSZH
• Maximum bandwidth (850 nm): 4700 MHz·km
• Maximum bandwidth (1300 nm): 500 MHz·km
• Typical insertion loss: < 0.3 dB
• Typical return loss: > 30 dB
• Operating wavelengths: 850 nm / 1300 nm
• Application: Data Center, SAN, LAN, FTTx

Final note

OM4 fibre is the standard choice for 10G, 40G and 100G Ethernet up to 150 metres at 850 nm. This patch cable meets the demands of modern high-density fibre infrastructures.
