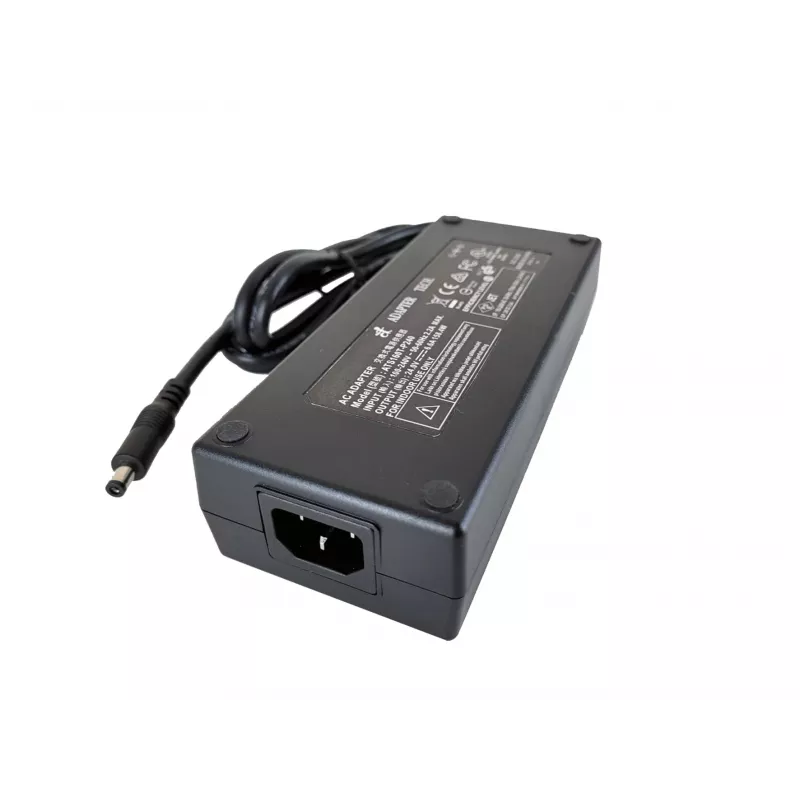

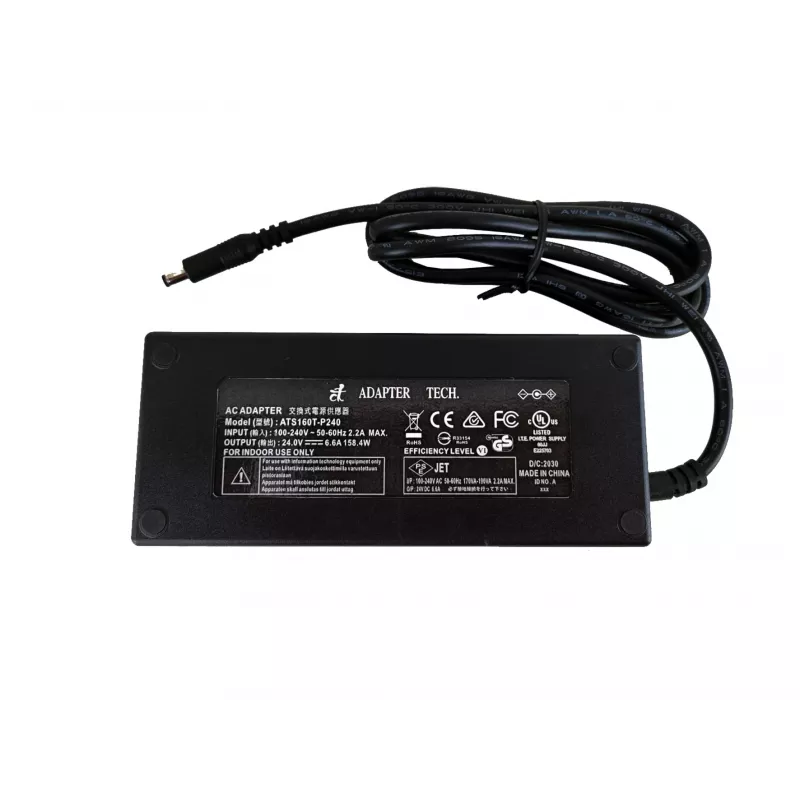

EXSYS 24V 6,6A AC/DC desktopvoeding met 5,5mm DC-holtestekker (EX-6984)

This EXSYS desktop power adapter delivers a stable 24V DC output at up to 6.6A, making it a reliable choice for powering devices that require a 5.5mm barrel connector with center-positive polarity. Unlike generic adapters, it accepts a wide 100-240V AC input, so it can be used internationally without a separate voltage converter.

Highlights

• Output: 24V DC, 6.6A, 158.4W maximum
• Input: 100-240V AC, 50/60 Hz, IEC C14 connector
• DC connector: 5.5mm outer diameter, 2.1mm inner diameter, center positive
• Built-in over-voltage, over-current, and short-circuit protection

In daily use

The adapter's desktop enclosure keeps heat away from the connected device, and the IEC C14 input allows you to use a standard power cord suited to your region. The barrel jack fits commonly used 5.5/2.1mm DC sockets, and the center-positive polarity matches most industrial and networking equipment.

Full specifications

• Product type: AC/DC power adapter
• Input voltage: 100-240V AC
• Input frequency: 50/60 Hz
• Output voltage: 24V DC
• Output current: 6.6A
• Output power: 158.4W
• DC connector: barrel jack, 5.5mm outer, 2.1mm inner
• DC polarity: center positive
• Input connector: IEC C14
• Protection: OVP, OCP, SCP
• Enclosure: desktop adapter

Final note

Verify the voltage, current, and connector dimensions of your device before ordering to ensure compatibility.
