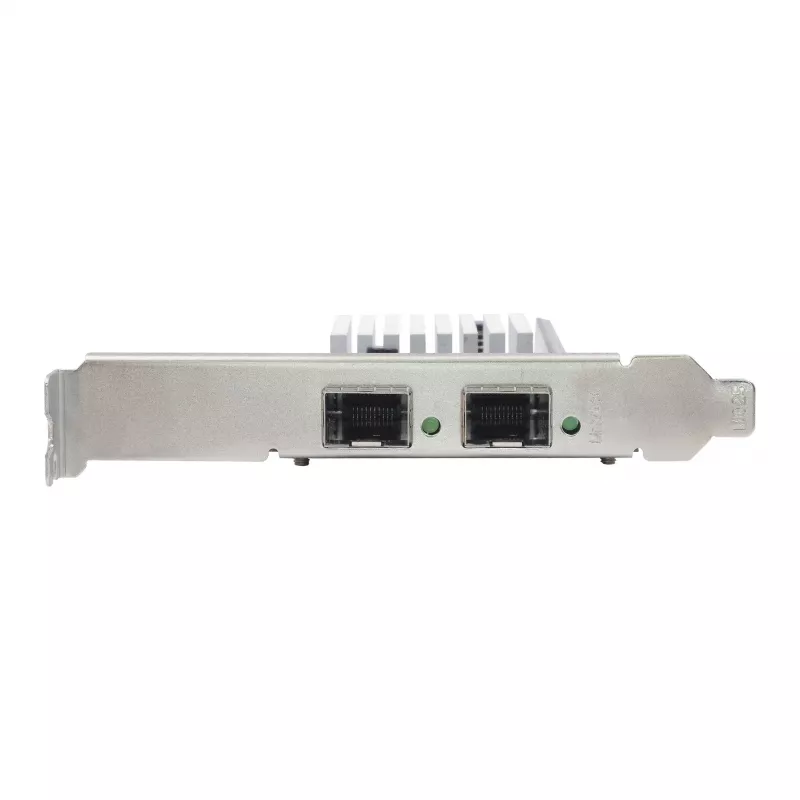

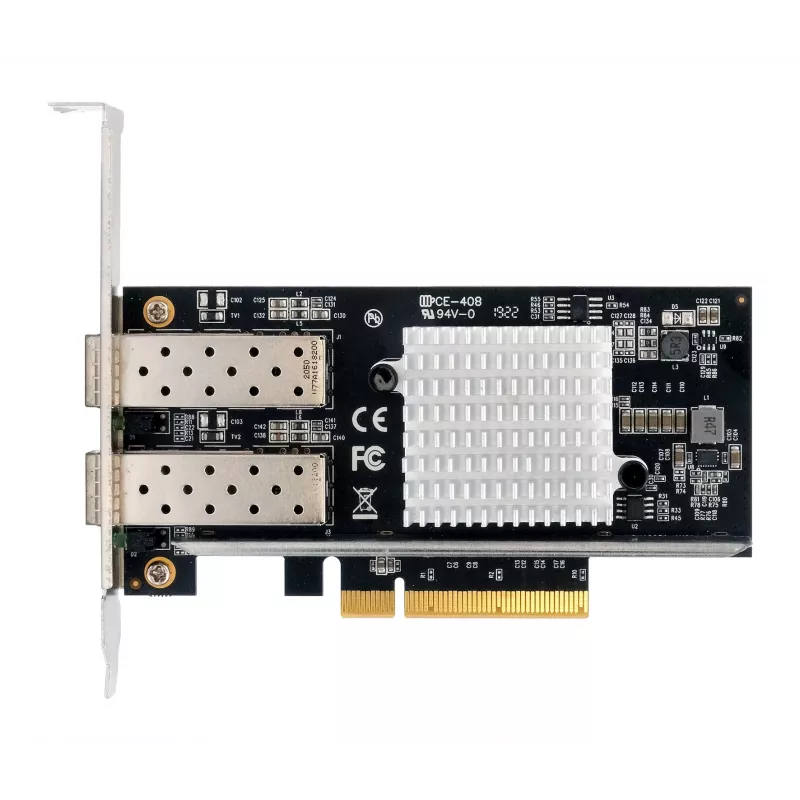

EXSYS Dual 10 Gigabit SFP+ netwerkcontroller PCIe x8, Intel 82599ES-chipset EX-60232

Dual 10 Gigabit SFP+ network controller with PCI Express 2.0 x8 interface, powered by the Intel 82599ES chipset for high-performance server and workstation connectivity.

Advantages

Two SFP+ ports deliver up to 10 Gbps per port, doubling throughput for bandwidth-intensive applications. The Intel 82599ES controller provides hardware offloads, virtualization support, and robust driver compatibility across major operating systems.

Suitable for

• Servers and workstations requiring dual 10GbE links
• Virtualized environments with SR-IOV and VMDq
• Data centers and enterprise networks

Key specifications

• PCI Express 2.0 x8 host interface
• Intel 82599ES controller chipset
• Two SFP+ ports, 10 Gigabit Ethernet each
• Supports IEEE 802.3ae, 802.1Q VLAN, 802.1p QoS, 802.3x flow control
• Jumbo frames up to 9.5 KB
• Intel VT-c, VMDq, SR-IOV virtualization
• PXE boot and Wake-on-LAN support
• Compatible with Windows Server, Linux, VMware ESX/ESXi, FreeBSD

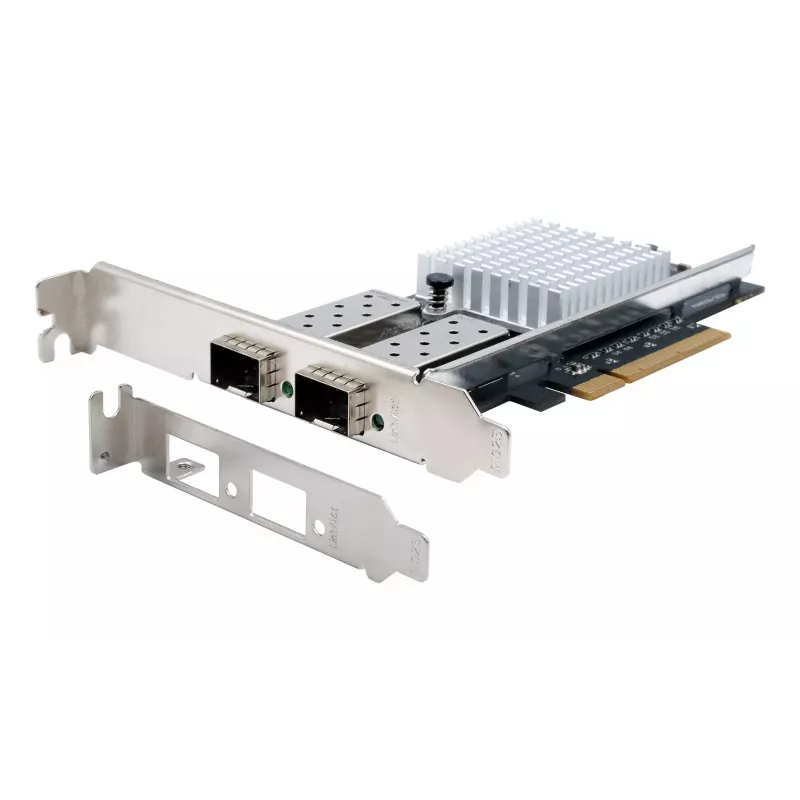

• Low-profile and full-height brackets included
• Passive heatsink for silent cooling

Recommendations

Ideal for upgrading servers to 10GbE or building high-speed storage networks. Verify SFP+ module compatibility before deployment.
