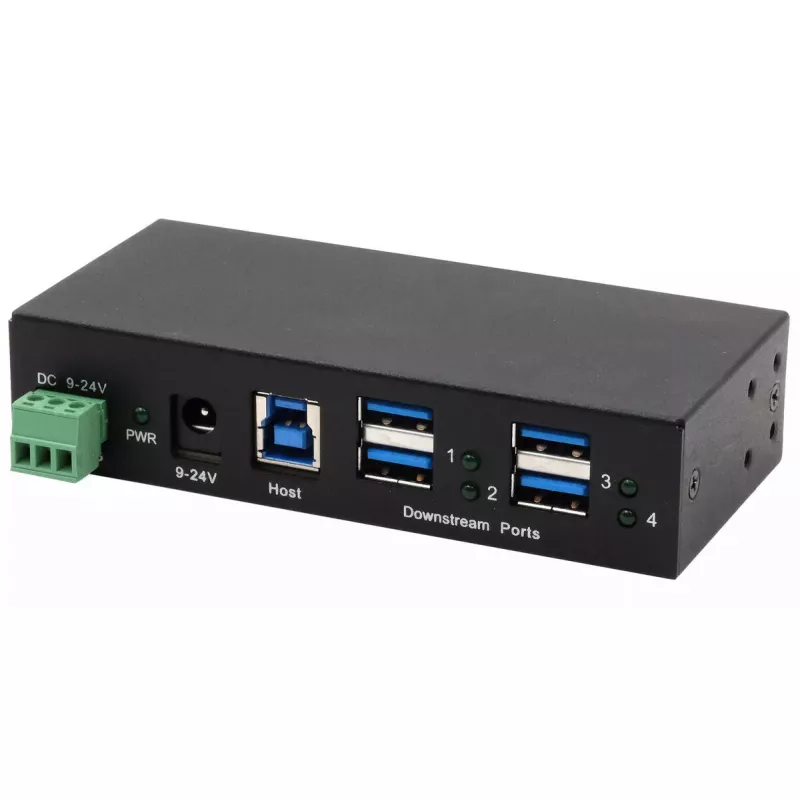

EXSYS EX-11244HMS USB-hub 3.2 Gen 1 Type-B 5000 Mbit/s zwart

The EXSYS EX-11244HMS is an industrial-grade USB hub with a metal housing, offering four USB 3.2 Gen 1 Type-A ports and a Type-B host interface. Designed for reliable operation in professional environments, it supports SuperSpeed data transfer up to 5 Gbps and accepts a DC input in the 9–24 V range. The compact, robust unit can be mounted on a wall or a carrier rail and requires an optional external power supply for self-powered operation.

Advantages

The hub provides stable high-speed data transfer at up to 5 Gbps and includes 15 kV ESD surge protection for increased durability in industrial settings. Its metal enclosure and mounting options (wall or carrier rail) enable secure installation. Each USB port can supply up to 1.5 A when the external power supply is used, allowing charging of devices such as iPhone, iPad, smartphones and tablets. Bus-power is not supported, ensuring consistent performance when the recommended external power is connected.

Suitable for

• Connecting multiple USB peripherals (keyboards, mice, printers) in industrial or office setups
• Charging mobile devices (smartphones, tablets) while transferring data
• Applications requiring ESD protection and metal-enclosed hardware
• Installations where wall or DIN/carrier-rail mounting is needed

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: 4 × USB 3.2 Gen 1 Type-A
• Maximum data rate: 5 Gbps (SuperSpeed)
• Power: external DC supply required (9–24 V); up to 1.5 A per port
• ESD protection: 15 kV
• Housing: metal, colour: black
• Mounting: wall or carrier rail
• Weight: 0.54 kg

How to use

Mount the EX-11244HMS on a wall or carrier rail using appropriate screws or clips. Connect the hub to the host system via the USB Type-B port and attach USB devices to the Type-A ports. Connect a suitable external DC power supply (9–24 V) to enable self-powered operation and provide up to 1.5 A per port. The hub will then allow simultaneous high-speed data transfer and device charging where supported by the connected devices.

Recommendations

Use a compatible external power supply within the specified 9–24 V range; do not rely on bus-power. For reliable charging and data throughput, ensure cabling and connected devices support USB 3.2 Gen 1 speeds. Observe ESD safety procedures during installation in industrial environments.
