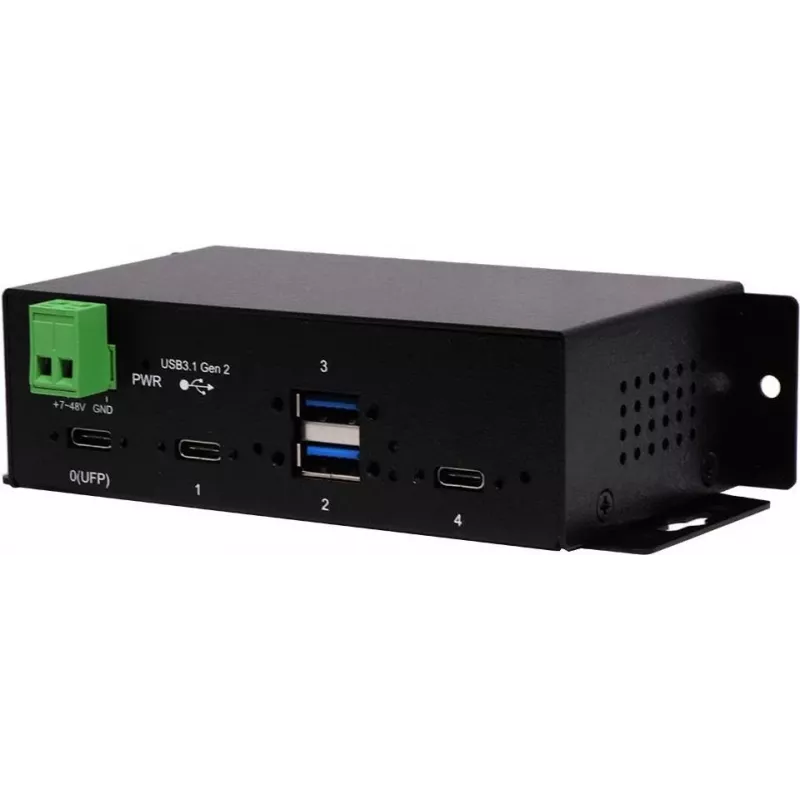

EXSYS EX-1274HMV 4-poorts USB 3.2 Gen 2 industriële hub met 2x USB-A en 2x USB-C, metaal, DIN-rail-/wand-/rackmontage

In a busy industrial control cabinet, an engineer needs to connect multiple high-speed USB devices to a single host system while ensuring reliable operation under harsh conditions. The EXSYS EX-1274HMV industrial hub provides four USB 3.2 Gen 2 ports (two Type-A and two Type-C) with 10Gbps bandwidth, all housed in a rugged metal enclosure that mounts on a DIN rail, wall, or rack. Its wide 9-48V DC input and extended temperature range make it ideal for automation, machine vision, and embedded computing.

Key specifications

• USB Standard: USB 3.2 Gen 2 (SuperSpeed USB 10Gbps)
• Upstream: 1x USB 3.2 Gen 2 Type-B
• Downstream: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C
• Data Transfer Rate: 10 Gbps
• Power Input: DC 9-48V via terminal block
• Output Current: USB-A 1.5A (7.5W) per port, USB-C 3A (15W) per port
• Housing: Metal
• Mounting: DIN rail, wall-mountable, rack-mountable (with optional kit)
• Operating Temperature: -40°C to 85°C
• ESD Protection: 15kV air, 8kV contact
• Surge and over-current protection
• Chipset: GL3590
• OS Compatibility: Windows, macOS, Linux
• LED Indicators: Power, port status

Why choose it

The EX-1274HMV delivers industrial-grade reliability with a wide power input range, extreme temperature tolerance, and robust surge protection. Its mix of USB-A and USB-C downstream ports offers flexibility for both legacy and modern peripherals, while the metal housing ensures durability in demanding environments. The hub supports full 10Gbps throughput on all ports simultaneously, making it suitable for high-bandwidth applications like machine vision cameras or high-speed data loggers.

Ideal use cases

• Industrial automation and control systems
• Machine vision and inspection setups
• Embedded computing and IoT gateways
• Kiosks and digital signage
• Laboratory and test equipment

Good to know

The hub requires an external DC power supply (not included) connected via the terminal block. It can be mounted on a standard 35mm DIN rail without additional brackets, or on a wall using the integrated mounting holes. For rack installation, an optional rack-mount kit is available. All downstream ports support USB Power Delivery for charging, but the hub itself does not support USB PD negotiation for host charging.
