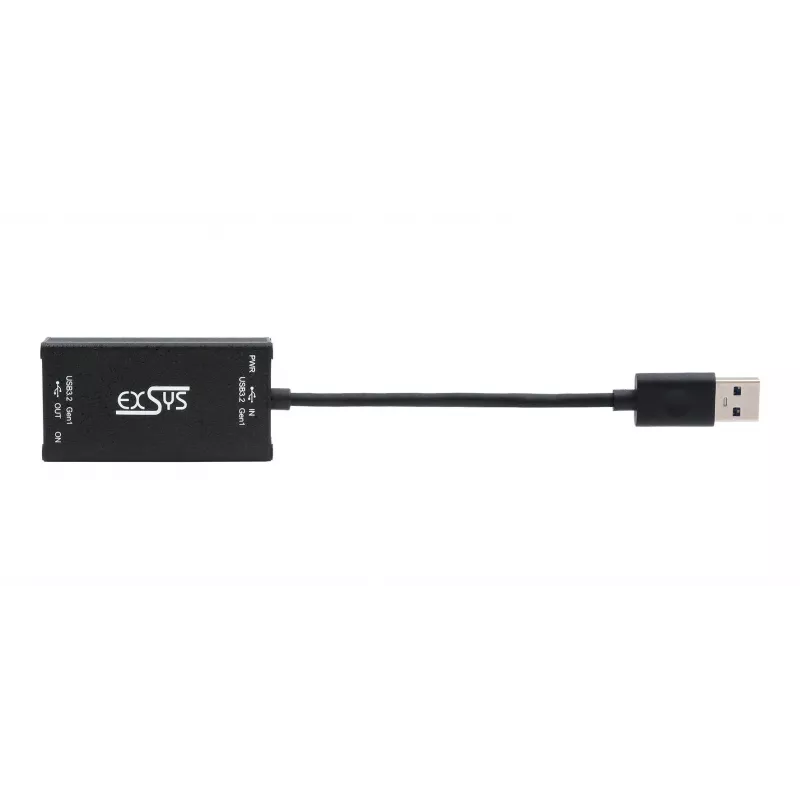

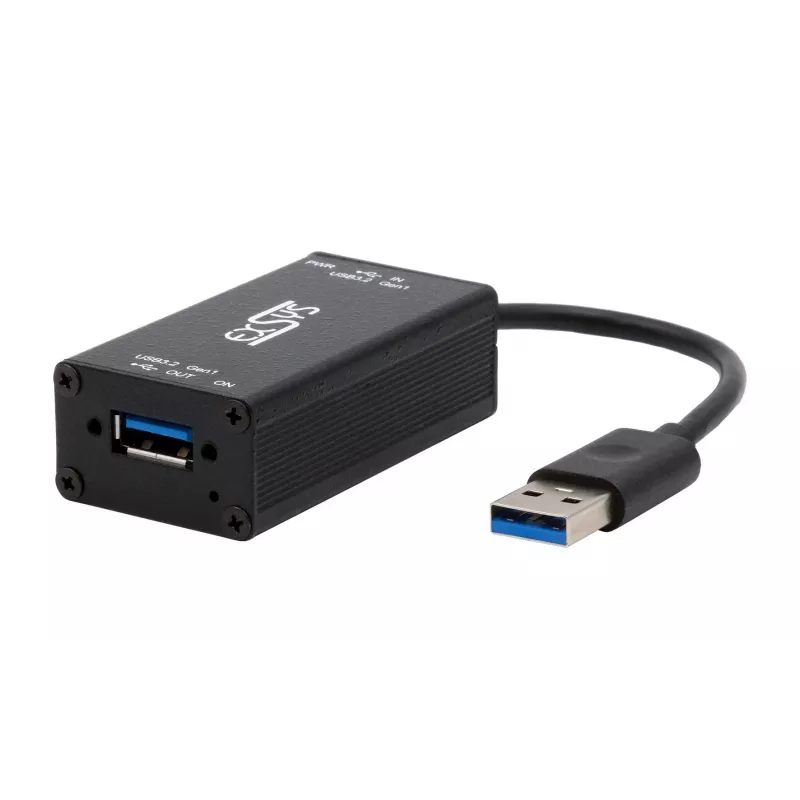

EXSYS EX-1501HMVS-A 1-poorts USB 3.2 Gen 1 industriële hub met 15KV ESD-overspanningsbeveiliging

Industrial USB connections often fail when exposed to electrostatic discharge or voltage spikes. The EXSYS EX-1501HMVS-A solves this by adding a rugged, metal-housed USB 3.2 Gen 1 port with 15KV ESD protection and overvoltage protection, ensuring reliable data transfer in harsh environments.

Who is it for

This adapter is built for system integrators, automation engineers, and anyone deploying USB devices in factories, kiosks, or outdoor installations where electrical noise and ESD are constant threats.

Main features

• 1x USB 3.2 Gen 1 Type-A downstream port with up to 5 Gbps data rate
• 15KV air discharge and 8KV contact discharge ESD protection
• Overvoltage protection for connected devices

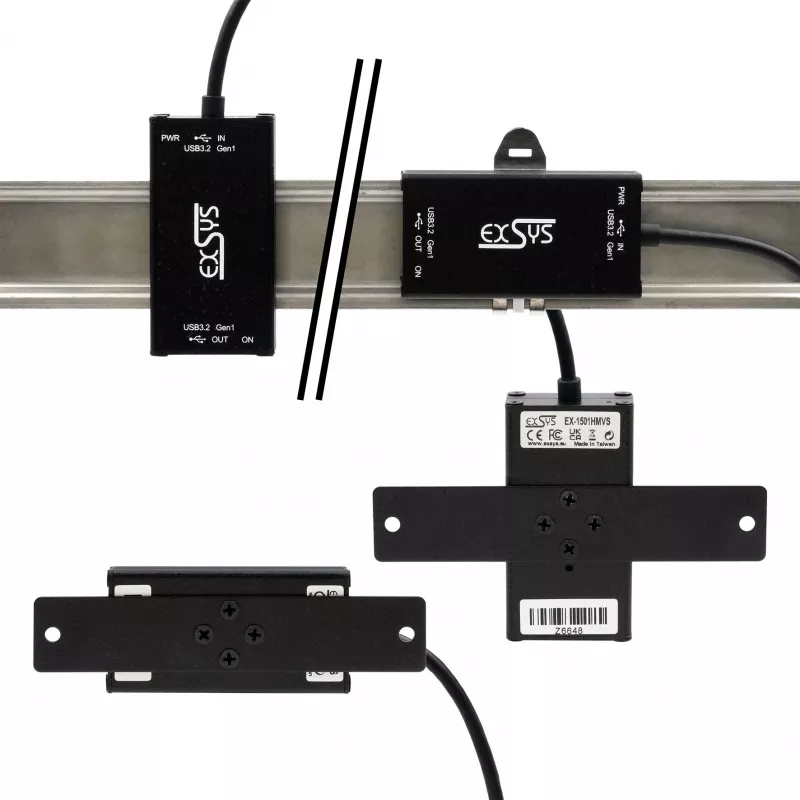

• Metal housing with DIN-rail and wall mount options
• Bus-powered or external 5V DC via terminal block
• Supports USB Battery Charging 1.2 with up to 1.5A output
• Screw-lock USB Type-B upstream connector prevents accidental disconnection
• LED indicators for power and link/activity

Specifications

• USB Standard: USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0)
• Data Transfer Rate: Up to 5 Gbps
• Upstream Ports: 1x USB 3.0 Type-B Female (screw-lock)
• Downstream Ports: 1x USB 3.0 Type-A Female
• ESD Protection: 15KV air discharge, 8KV contact discharge
• Overvoltage Protection: Yes
• Housing Material: Metal
• Mounting Options: DIN-rail, wall mount
• Power Supply: Bus-powered or external 5V DC (terminal block)
• Current Output per Port: Up to 1.5A (BC 1.2)
• USB Battery Charging Support: BC 1.2
• Operating Temperature: -40°C to 85°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% RH (non-condensing)
• LED Indicators: Power, Link/Activity

Tips

For maximum protection in high-ESD environments, use the external 5V DC terminal block to ensure stable power delivery to the downstream device. The screw-lock USB cable prevents accidental disconnection in vibrating or moving installations.
