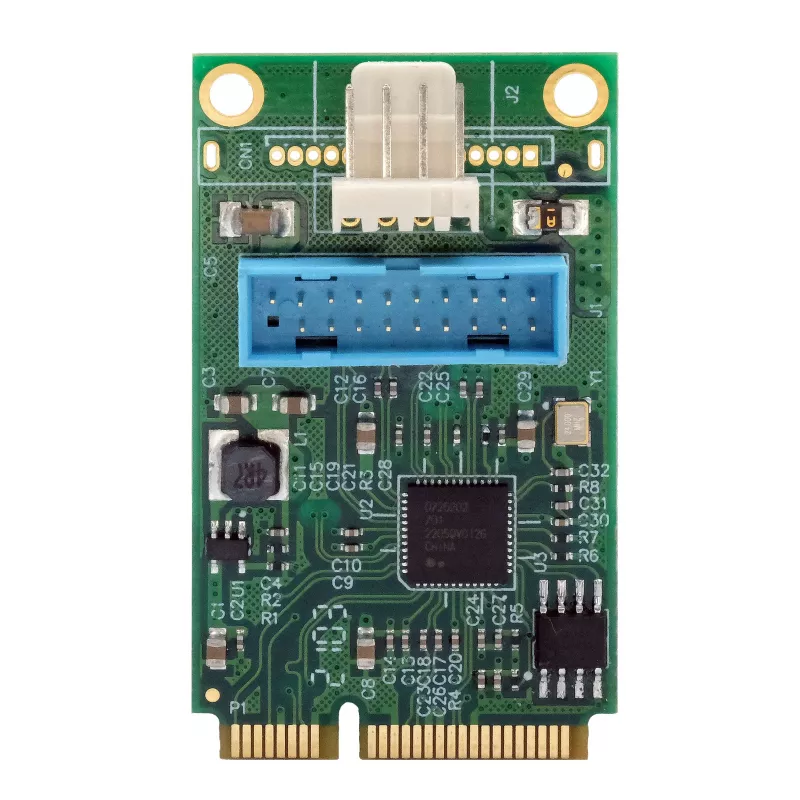

EXSYS EX-48010-3 Mini PCIe USB 3.2 Gen 1 kaart met 2 aansluitingen (NEC)

Many embedded systems and industrial PCs lack sufficient high-speed USB connectivity, limiting expansion options. The EXSYS EX-48010-3 Mini PCIe card solves this by adding two USB 3.2 Gen 1 ports through a full-size Mini PCIe slot, delivering SuperSpeed data transfer up to 5 Gbps for demanding peripherals.

Who is it for

System integrators and OEMs building industrial PCs, embedded systems, or upgrading laptops with a Mini PCIe slot who need reliable, high-bandwidth USB ports for internal devices.

Main features

• Two internal USB 3.2 Gen 1 Type-A ports for connecting internal devices
• Renesas (NEC) µPD720202 controller chipset for stable performance
• PCI Express 2.0 interface with full-size Mini PCIe form factor
• Supports UASP for faster data transfers with compatible devices
• Hot-swap capability allows connecting/disconnecting devices without rebooting
• Overcurrent protection per port safeguards connected devices

Specifications

• Host Interface: Mini PCI Express
• Output Interface: USB 3.2 Gen 1
• Number of USB Ports: 2
• USB Port Type: Internal USB Type-A
• Controller Chipset: Renesas (NEC) µPD720202
• Max Data Transfer Rate: 5 Gbps
• PCIe Revision: PCI Express 2.0
• Form Factor: Full-size Mini PCIe
• Power Input: SATA Power Connector (5V)
• Hot-Swap Support: Yes
• UASP Support: Yes
• Backward Compatibility: USB 2.0, USB 1.1
• ESD Protection: Yes
• Overcurrent Protection: Yes (per port)
• Operating System Compatibility: Windows XP/Vista/7/8/10/11, Linux Kernel 2.6.31 and higher

Tips

Ensure your system has an available full-size Mini PCIe slot and a SATA power connector. The card's internal ports are ideal for connecting internal USB devices such as flash drives or wireless modules.
