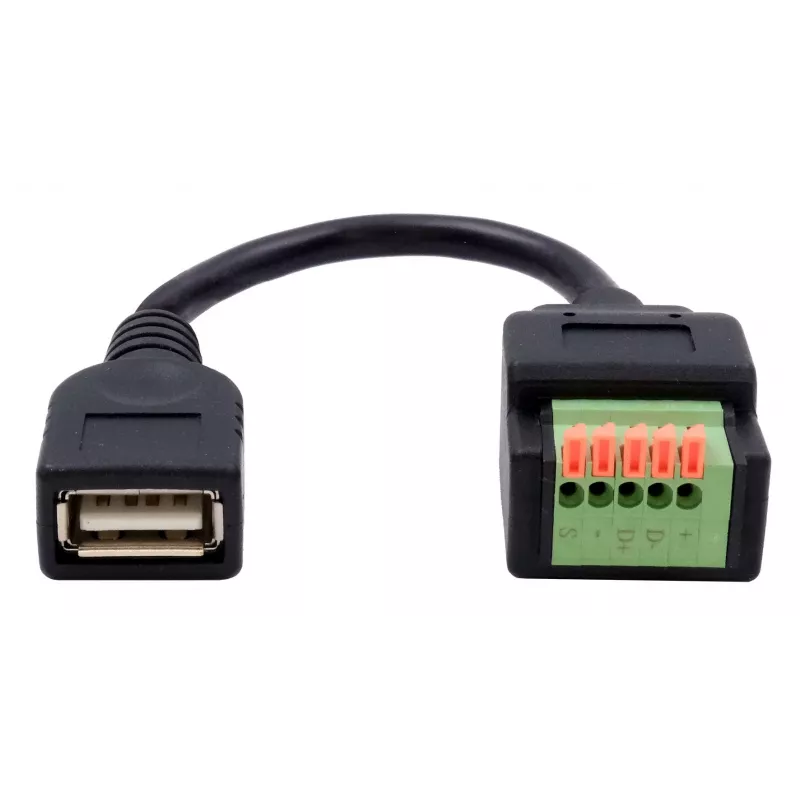

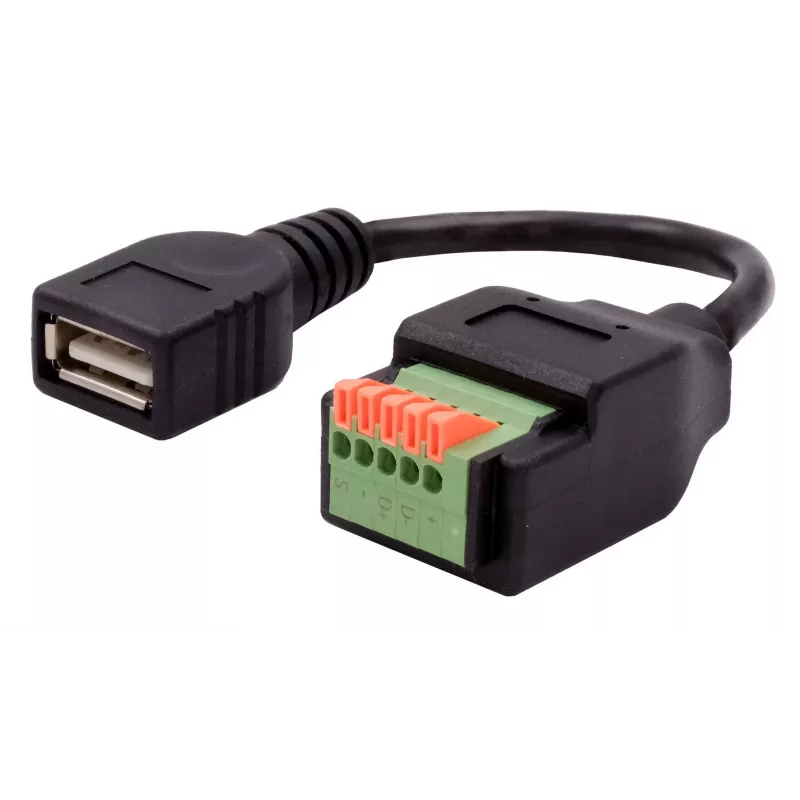

EXSYS EX-49128 USB-A bus naar 5-pin schroefklemmenblok adapterkabel met drukknop, USB 2.0, 15 cm

Industrial integrators and prototyping engineers often need a reliable way to break out USB signals to screw terminals for custom wiring. The EXSYS EX-49128 adapter cable provides a USB-A female connector on one end and a 5-pin screw terminal block on the other, with an integrated push button for signal control. It supports USB 2.0 high-speed data transfer up to 480 Mbps and delivers standard 5V, 500mA power. The 15 cm cable is shielded with foil and braid, and uses copper conductors with a PVC jacket. The terminal block pinout includes VCC, D-, D+, GND, and a button signal line, making it suitable for custom USB power and data connections in industrial and prototyping applications.

Key specifications

• Connector A: USB-A Female
• Connector B: 5-pin Screw Terminal Block
• USB Standard: USB 2.0
• Data Transfer Rate: Up to 480 Mbps
• Power Output: 5V, 500mA
• Cable Length: 15 cm
• Integrated Push Button
• Shielding: Foil and Braid
• Conductor Material: Copper
• Jacket Material: PVC

Why choose it

This adapter simplifies connecting USB devices to custom circuits without soldering. The screw terminals allow secure, reusable connections, and the push button adds control flexibility. Its compact length and robust shielding ensure reliable signal integrity in tight spaces.

Ideal use cases

• Prototyping USB-powered devices
• Industrial USB signal breakout
• Custom test fixtures
• Embedded system development

Good to know

The terminal block pinout is assumed as VCC, D-, D+, GND, and Button Signal. Always verify pin assignments with your specific application before connecting.
