EXSYS EX-49130 USB 2.0 adapter USB-B bus naar 5-pins terminalblock met drukknop, 15 cm

Transfer data at up to 480 Mbps with this rugged adapter, featuring a USB-B female port and a 5-pin screw terminal block with an integrated push button for custom control in industrial and prototyping applications.

Overview

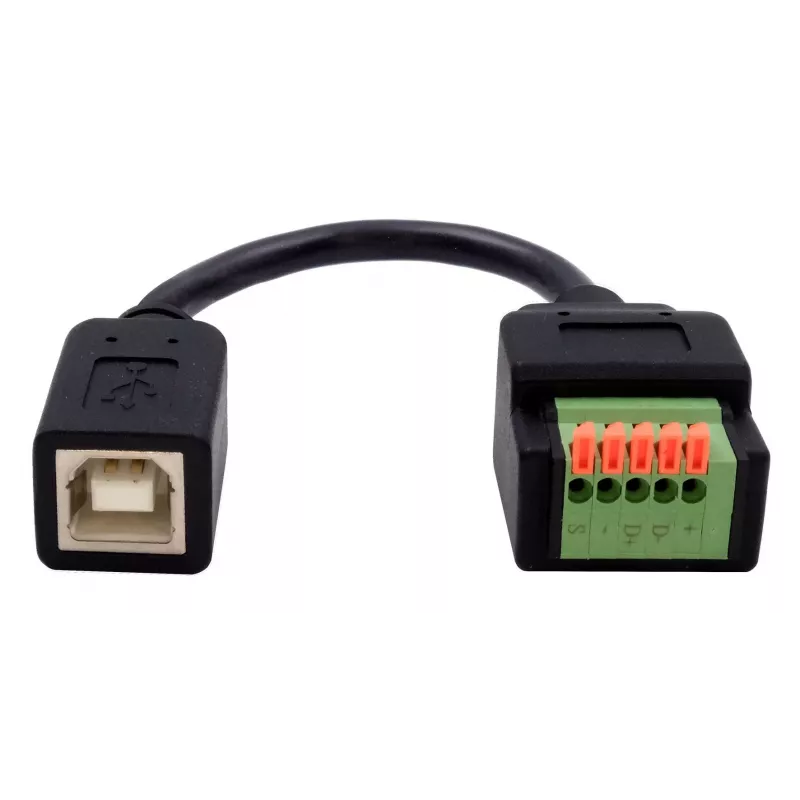

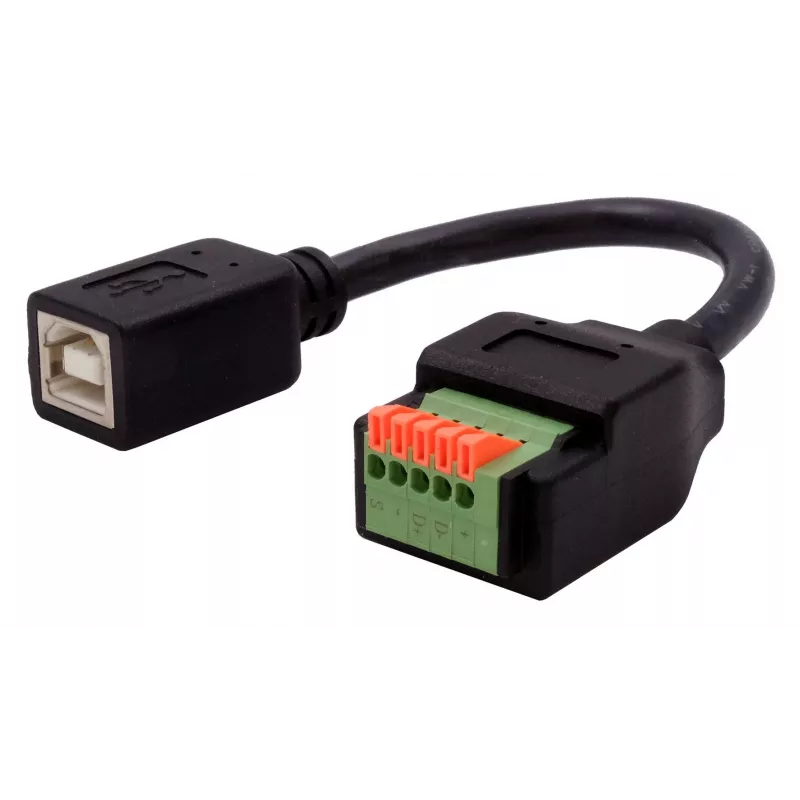

The EXSYS EX-49130 is a specialized USB 2.0 adapter that bridges a standard USB-B female connector to a 5-pin screw terminal block. The 15 cm cable provides flexibility for panel mounting or embedded installations, while the integrated push button adds a convenient manual input option for your projects.

What stands out

• Integrated push button for custom control functions
• 5-pin terminal block includes standard USB 2.0 signals (VCC, D-, D+, GND) plus an extra pin for the button
• Nickel-plated connectors for reliable contact
• Tinned copper conductors and foil/braid shielding for signal integrity

Technical details

• Connector 1: USB-B female
• Connector 2: 5-pin screw terminal block
• USB standard: USB 2.0 (up to 480 Mbps)
• Cable length: 15 cm
• Power output: 5V, up to 500 mA
• Conductor material: tinned copper
• Jacket material: PVC
• Shielding: foil and braid
• Colour: black
• Operating temperature: -20°C to 70°C

Our verdict

A practical solution for integrating USB into custom hardware, with the added benefit of a push button for enhanced control.
