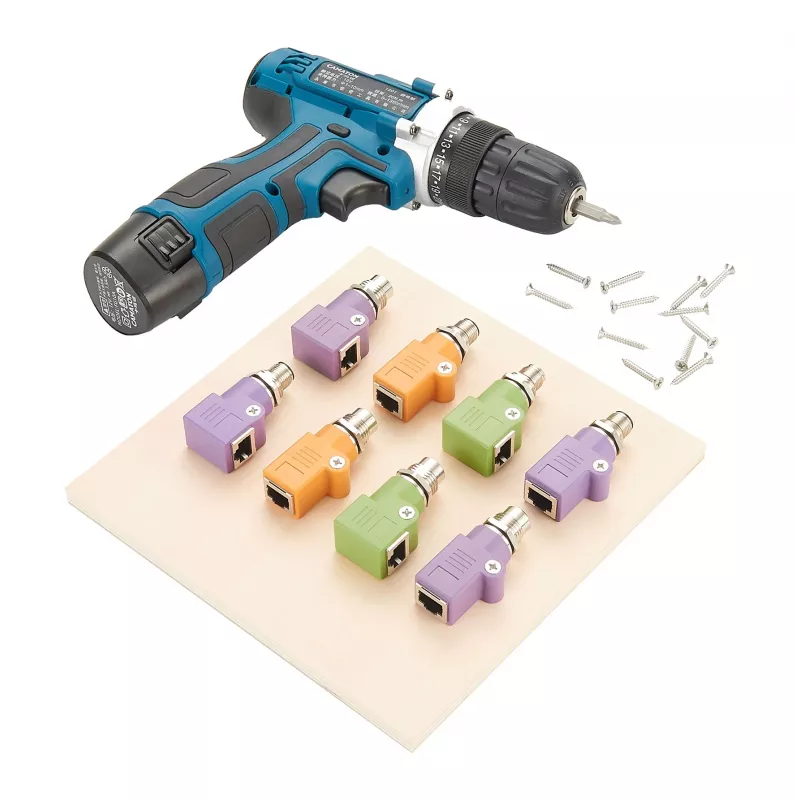

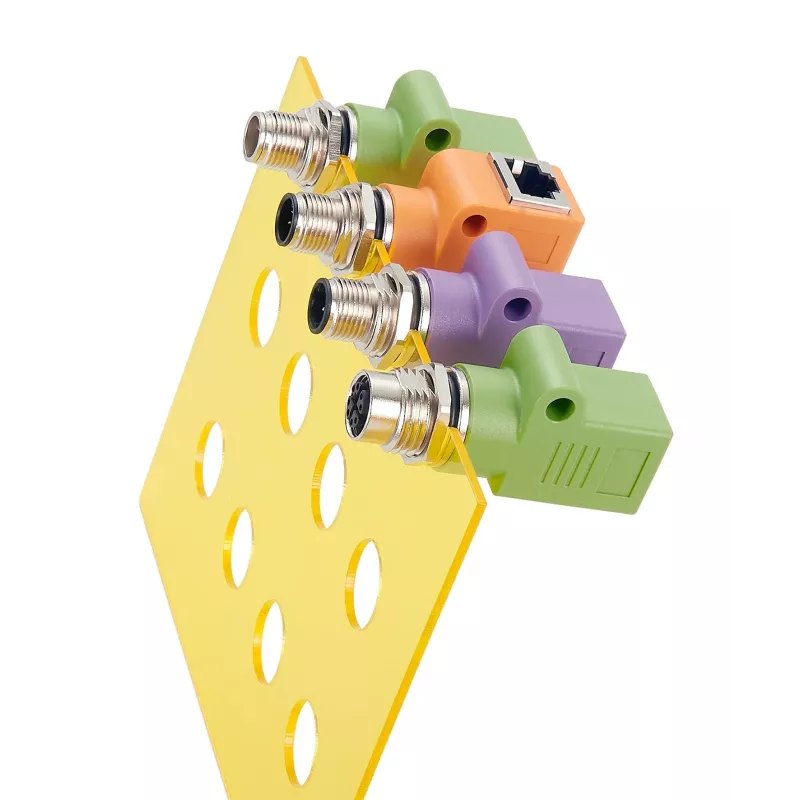

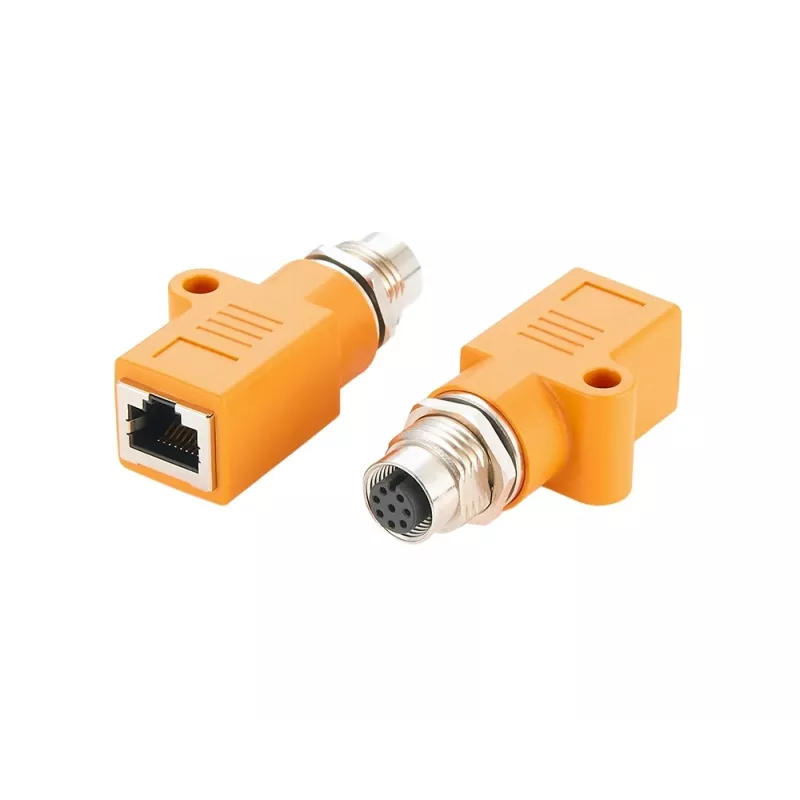

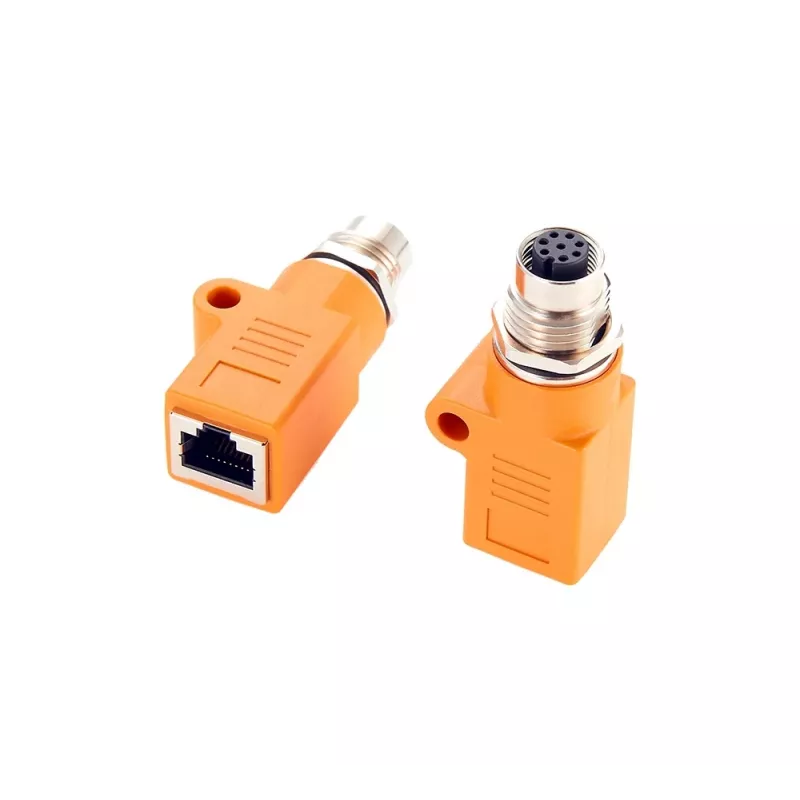

EXSYS EX-49501 industriële M12 A-gecodeerde 8-polige bus naar RJ45 bus adapter, Gigabit Ethernet, IP67

Industrial Ethernet adapter enabling reliable Gigabit connectivity between M12 A-coded 8-pin female and RJ45 female interfaces. Its nickel-plated brass housing and IP67 rating when mated ensure dependable performance in harsh environments.

Advantages

Rugged construction withstands demanding industrial conditions. Shielded design supports FTP/STP cabling for signal integrity. 1:1 pin assignment simplifies installation.

Suitable for

• Industrial Ethernet networks
• Sensor and actuator connectivity
• Machinery requiring robust data links

Key specifications

• Connector 1: M12 A-coded 8-pin female
• Connector 2: RJ45 female
• Data transfer rate: up to 1000 Mbps (1 Gbps)
• IP protection rating: IP67 when mated
• Housing material: nickel-plated brass
• Operating temperature: -25°C to +85°C
• Shielding: shielded (FTP/STP compatible)
• Voltage rating: 30V
• Current rating: 2A per pin
• Standard compliance: IEC 61076-2-101

Recommendations

For robust industrial Ethernet connections, pair with shielded M12 and RJ45 cables to maintain signal quality and environmental protection.
