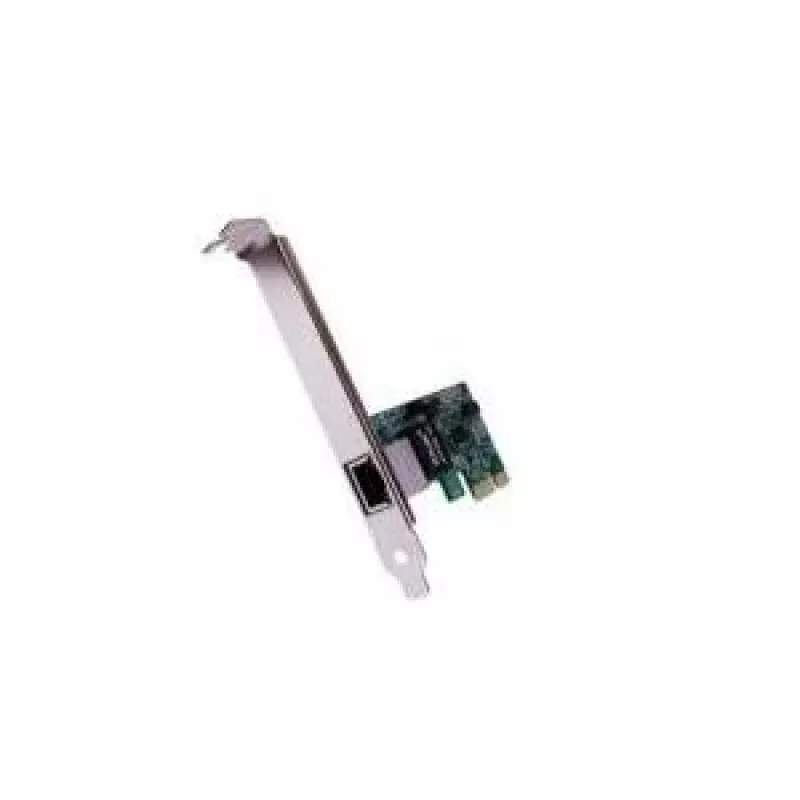

EXSYS EX-6071B Gigabit Ethernet PCIe x1 netwerkadapter, Realtek RTL8111G, Low Profile

The EXSYS EX-6071B is a high-performance Gigabit Ethernet network adapter in a low-profile PCIe x1 form factor. It delivers wired connectivity at speeds up to 1000 Mbps, ensuring stable and fast network access for desktop PCs, workstations, and servers. The adapter is equipped with a Realtek RTL8111G controller, known for its reliability and broad operating system support.

Advantages

This adapter offers a simple and cost-effective way to add Gigabit Ethernet to systems lacking onboard networking or needing a replacement. It supports advanced features such as Wake-on-LAN, Jumbo Frames up to 9KB, PXE boot, and full-duplex operation, enhancing network efficiency and manageability. The included low-profile bracket allows installation in slim or small form factor cases, while the standard bracket suits conventional desktops.

Suitable for

• Desktop PCs and workstations requiring high-speed wired network connectivity.
• Servers and network appliances needing a reliable Gigabit Ethernet port.
• Systems with limited space, thanks to the low-profile bracket option.
• Environments using Windows, Linux, or macOS operating systems.

Key specifications

• Interface: PCI Express x1 (compatible with x4, x8, x16 slots).
• Port: 1 x RJ-45 Gigabit Ethernet.
• Data rates: 10/100/1000 Mbps with auto-negotiation.
• Controller: Realtek RTL8111G.
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.3x.
• Features: Wake-on-LAN, Jumbo Frames (up to 9KB), PXE, flow control, full duplex.
• LED indicators: Link/Activity.
• Brackets: Standard and low-profile included.

Recommendations

For reliable Gigabit Ethernet connectivity with broad OS support and flexible installation, the EXSYS EX-6071B is an excellent choice. Its low-profile design makes it ideal for compact systems, while the Realtek chipset ensures compatibility and performance.
