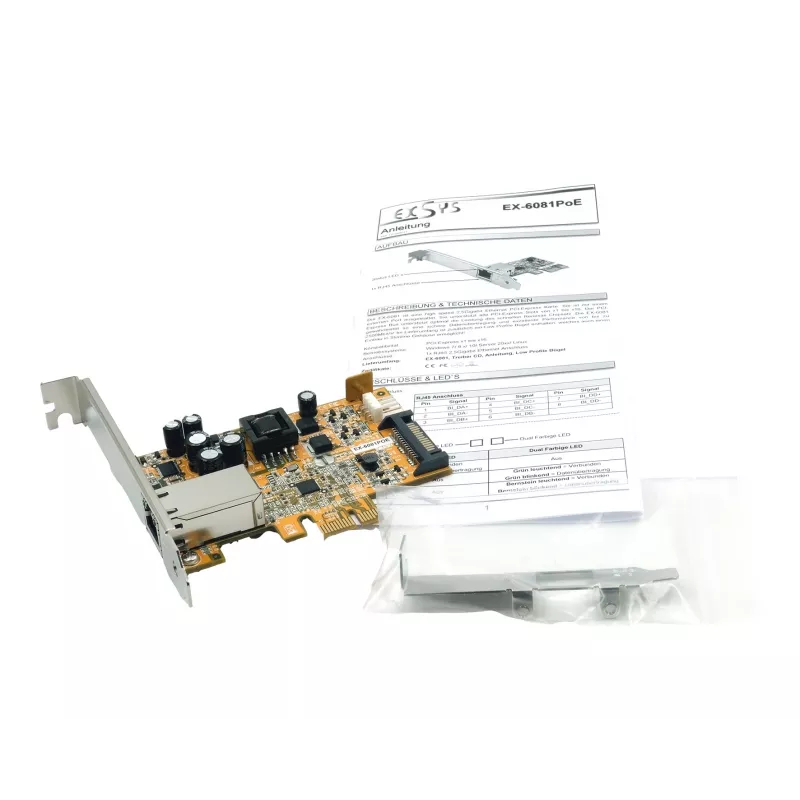

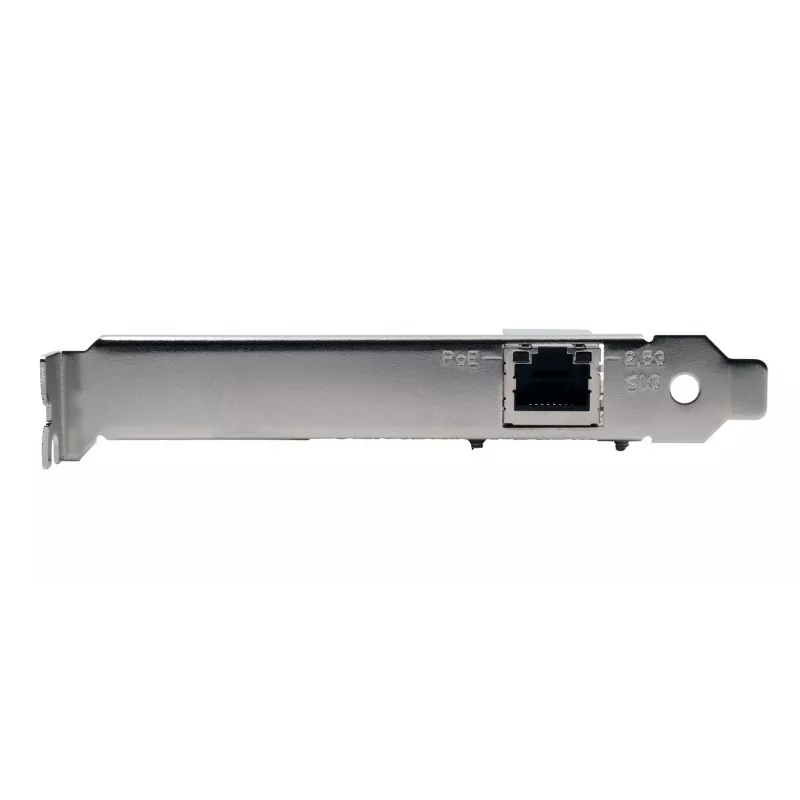

EXSYS EX-6081POE 1-poorts PCIe 2,5G PoE+ netwerkkaart

The EXSYS EX-6081POE stands apart by combining a 2.5 Gigabit Ethernet PCIe adapter with IEEE 802.3at Power over Ethernet Plus output, delivering up to 30W to a connected device directly from the card. This integration eliminates the need for a separate PoE injector, making it a compact solution for powering IP cameras, access points, or other PoE devices while upgrading network speed beyond standard Gigabit.

Highlights

• 1x RJ45 2.5GBASE-T port with auto-negotiation for 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
• IEEE 802.3at PoE+ output up to 30W via 12V DC SATA power connector
• PCI Express 2.1 x1 host interface with Realtek RTL8125B chipset
• Supports jumbo frames up to 16 KB, Wake-on-LAN, and PXE boot

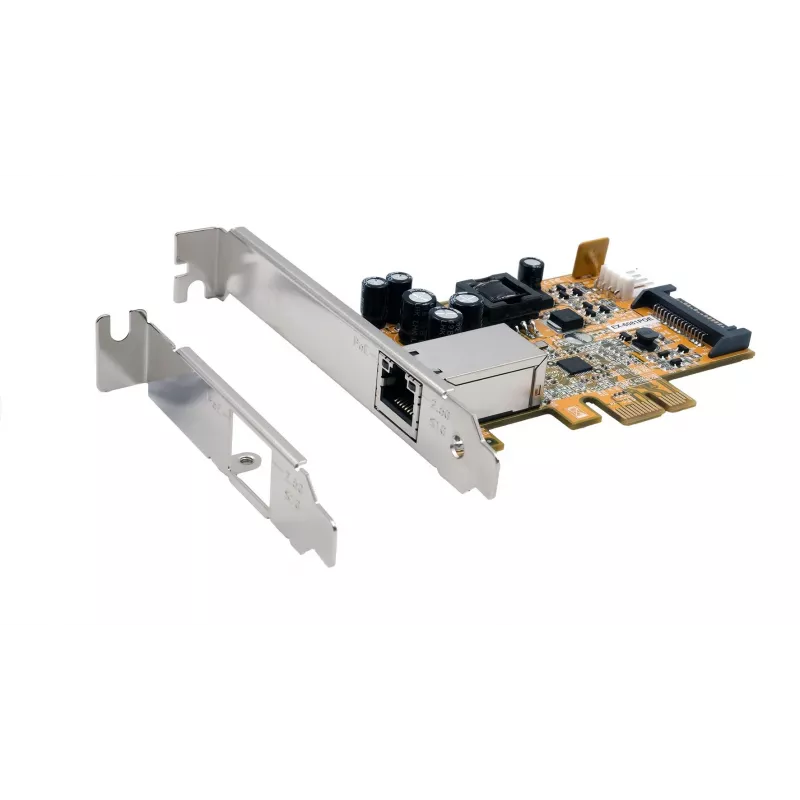

• Includes low-profile bracket for slim desktop or server chassis

In daily use

The EX-6081POE installs into a standard PCIe x1 slot and provides a single high-speed 2.5G Ethernet port with PoE+ capability. It is compatible with Windows, Linux, and macOS, and supports VLAN tagging, QoS priority encoding, and full-duplex flow control for reliable network performance. LED indicators show link/activity and PoE status at a glance.

Full specifications

• Network Interface: 1x RJ45 2.5GBASE-T Ethernet Port
• Host Interface: PCI Express 2.1 x1
• Ethernet Data Rates: 2.5 Gbps, 1 Gbps, 100 Mbps, 10 Mbps (Auto-negotiation)
• PoE Standard: IEEE 802.3at (PoE+)
• Max PoE Power Output: 30W (per port)
• Chipset: Realtek RTL8125B
• Jumbo Frame Support: Up to 16 KB
• Wake-on-LAN (WoL): Yes
• PXE Boot Support: Yes
• VLAN Support: IEEE 802.1Q Tagging
• QoS Support: IEEE 802.1p Layer 2 Priority Encoding
• Flow Control: IEEE 802.3x Full Duplex
• Operating System Compatibility: Windows 7/8/10/11, Windows Server 2008R2/2012R2/2016/2019, Linux, macOS
• LED Indicators: Link/Activity, PoE Status
• Power Input for PoE: 12V DC via SATA Power Connector
• Form Factor: Standard Profile (Low Profile Bracket Included)
• Cable Type: Cat5e or higher UTP/STP
• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3at

Final note

The EXSYS EX-6081POE is a practical choice for adding a 2.5G PoE+ port to a desktop or server, combining speed and power delivery in one PCIe card.
