EXSYS EX-61001 seriële server RS-232/422/485 DC 12-48V

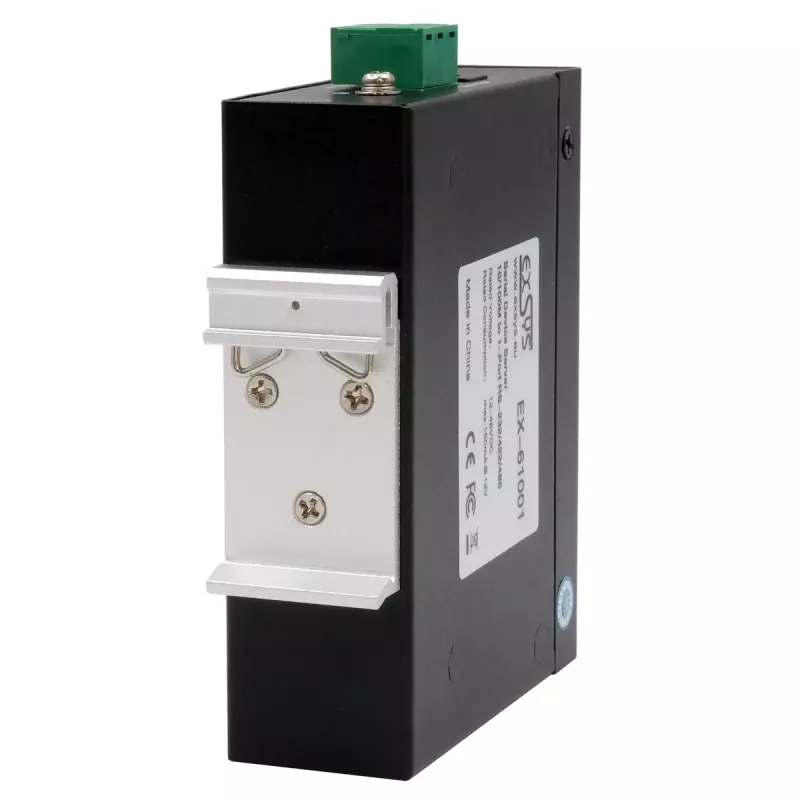

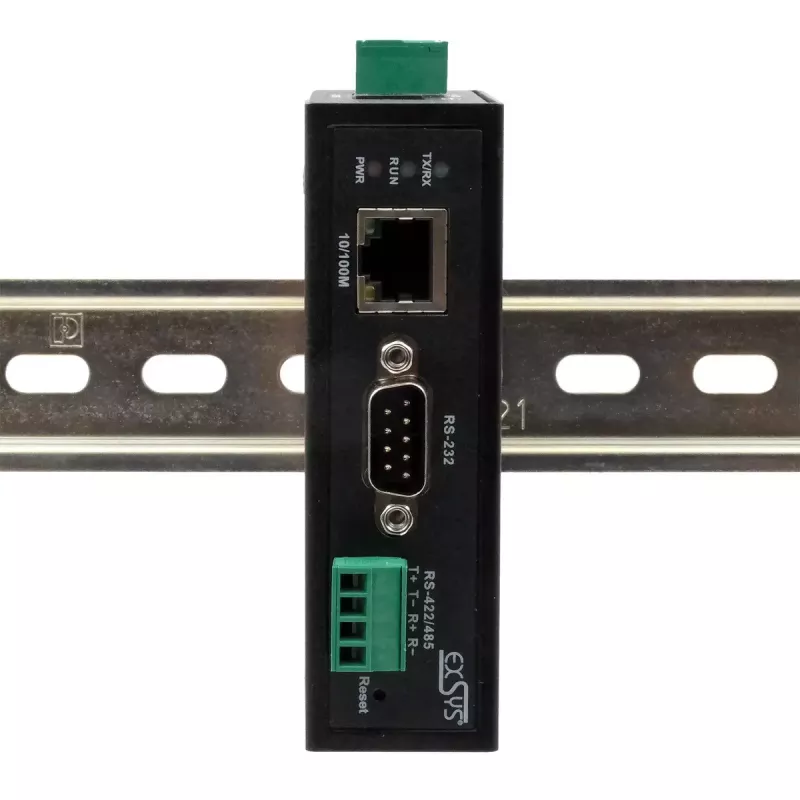

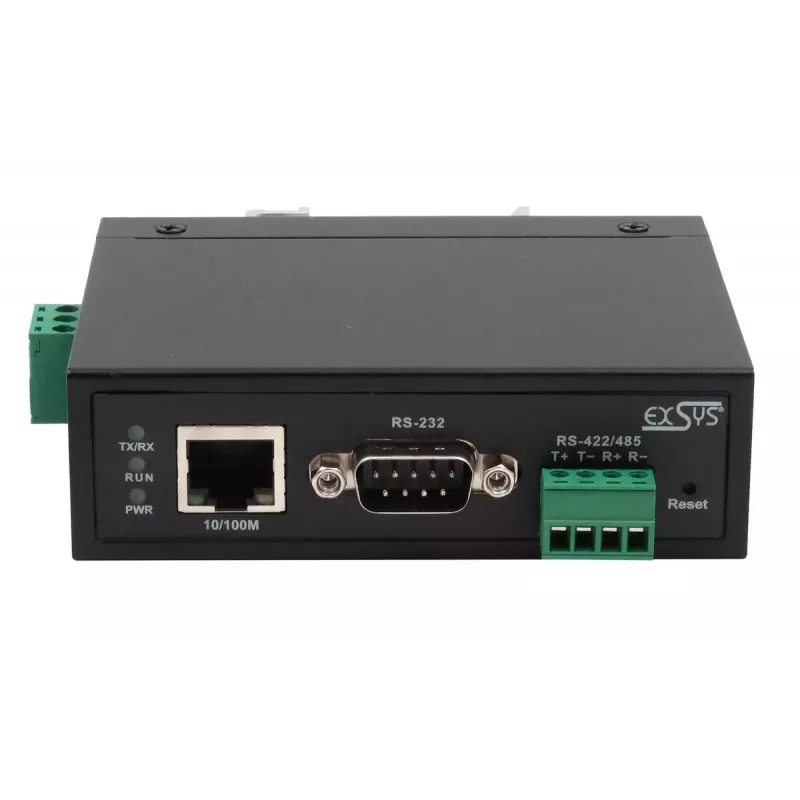

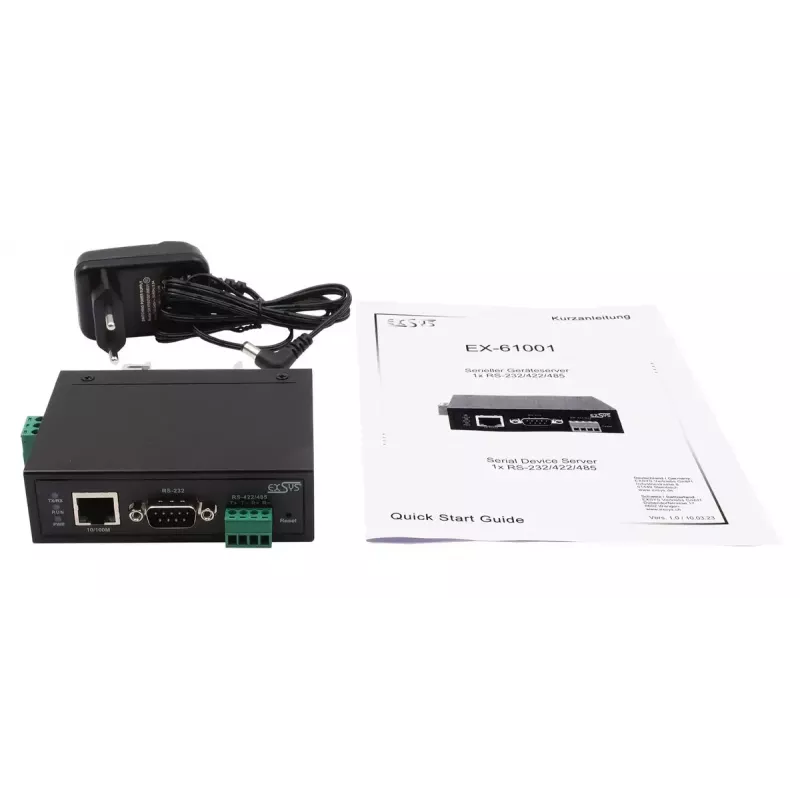

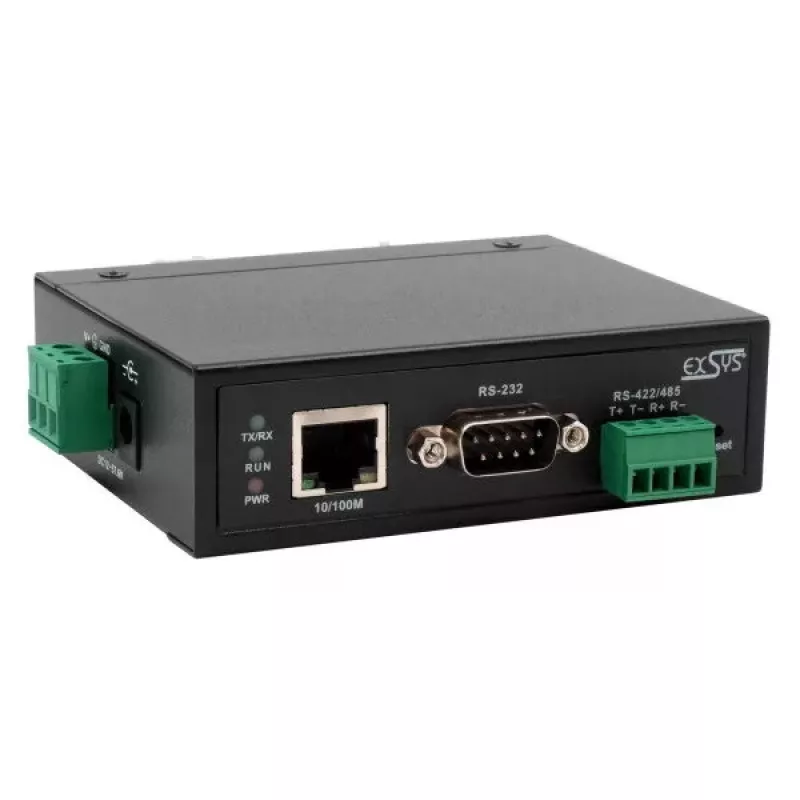

EXSYS EX-61001 is a multi-protocol serial device server that enables integration of RS-232, RS-422 and RS-485 serial equipment into an IP-based Ethernet network. The unit provides direct network access to devices such as payment terminals, barcode readers, sensors, measuring instruments, weighing systems and CNC controllers. It supports DC power input in the 12–48 V range and has a compact metal enclosure with IP30 protection. Physical dimensions are 100.2 mm (W) × 80.3 mm (D) × 48.3 mm (H).

Advantages

The EXSYS EX-61001 supports multiple serial standards (RS-232/422/485) and a wide set of operation modes including TCP Server, TCP Client, UDP, VCOM, Remote Pair Master/Slave, Modbus Server and Modbus Client, enabling flexible integration into existing network architectures. Web browser configuration simplifies setup and management. Its metal housing and IP30 rating provide mechanical protection suitable for industrial environments, while the wide DC input range (12–48 V) allows use with various power systems.

Suitable for

• Integration of payment terminals into Ethernet networks
• Connecting barcode scanners and sensors for data collection
• Linking measuring devices and weighing systems to central servers
• Connecting CNC controllers and industrial automation equipment

Key specifications

• Supported serial interfaces: RS-232, RS-422, RS-485
• Network interface: Ethernet (TCP/UDP)
• Operation modes: TCP Server, TCP Client, UDP, VCOM, Remote Pair Master/Slave, Modbus Server, Modbus Client
• Power input: DC 12–48 V
• Output voltage: 12 V
• Housing: metal, IP30
• Dimensions: 100.2 × 80.3 × 48.3 mm (W × D × H)
• Brand: Exsys; MPN: EX-61001; EAN: 4718359610011

How to use

Connect the serial device to the appropriate RS-232/422/485 port and attach the EX-61001 to the Ethernet network using a standard Ethernet cable. Apply DC power within the 12–48 V range. Access the device configuration interface through a web browser and select the required operating mode (for example, TCP Server for incoming connections or Modbus Server to expose serial devices via Modbus TCP). Save settings and verify communication between the serial device and host systems through the chosen network mode.

Recommendations

For reliable operation in industrial environments, mount the unit in a ventilated area and use appropriate surge protection on power and network lines. Choose the serial interface and operation mode that match the connected device and network topology, and ensure firmware is kept up to date via the vendor’s procedures.
