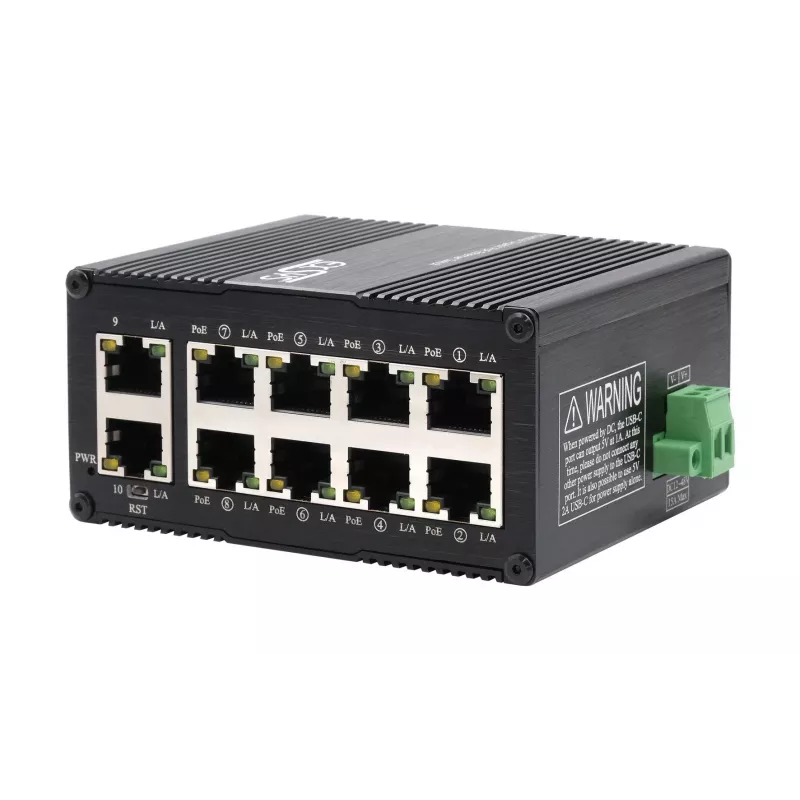

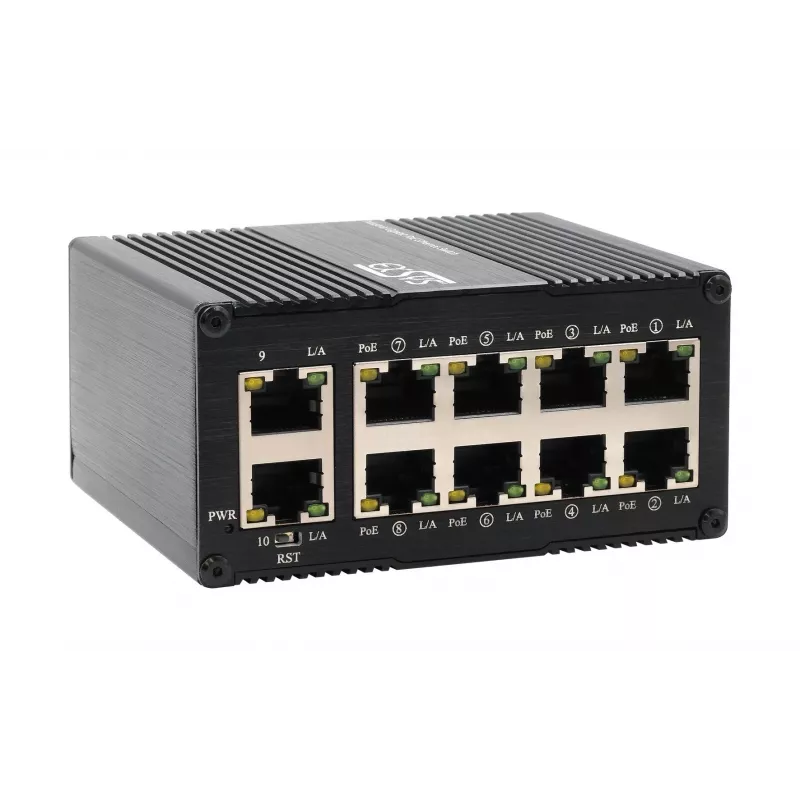

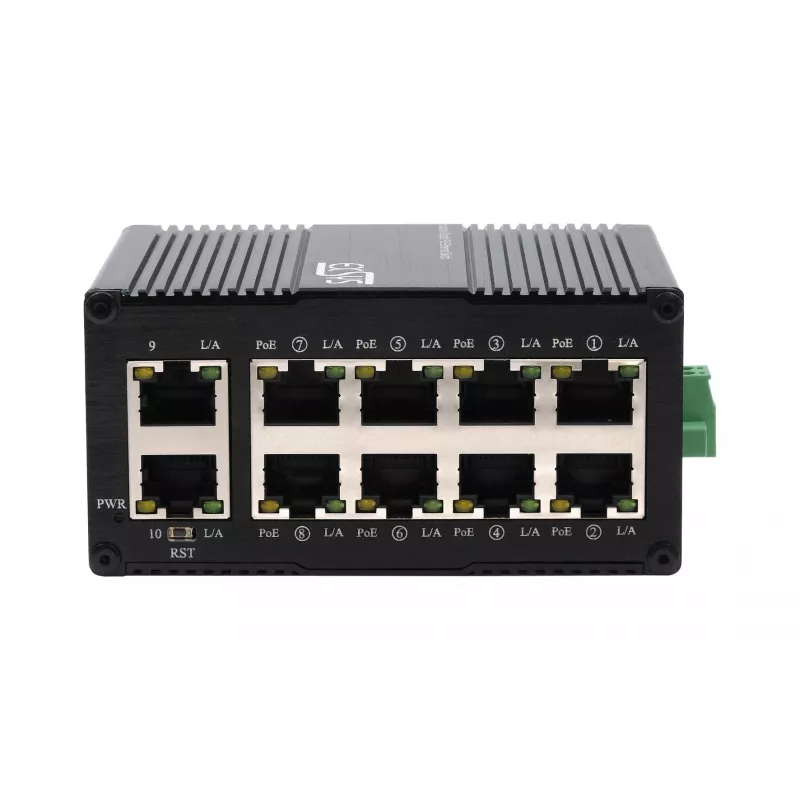

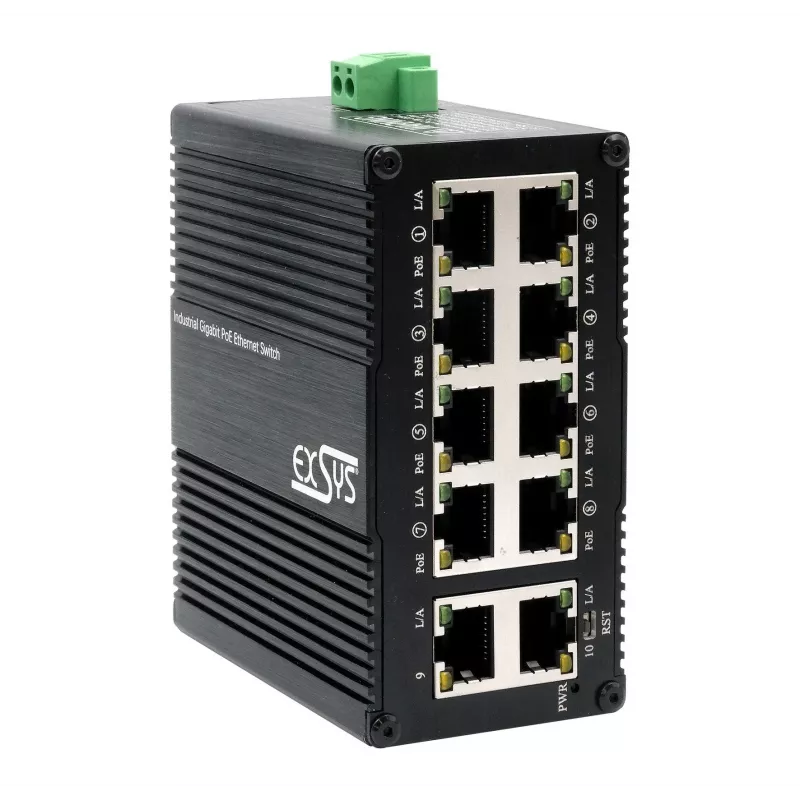

EXSYS Mini 10-poorts industriële Gigabit PoE+ switch, web-managed (EX-62036MPOE)

In industrial automation and harsh environments, network reliability is critical. The EXSYS Mini 10-Port Industrial Gigabit PoE+ Switch (EX-62036MPOE) delivers robust connectivity for factory floors, transportation systems, and outdoor installations. With eight Gigabit PoE+ ports and two Gigabit SFP uplinks, it powers devices like IP cameras, wireless access points, and sensors while ensuring high-speed data transfer.

Key specifications

• 10 total Gigabit ports: 8x 10/100/1000Base-T PoE+ and 2x Gigabit SFP
• PoE+ (IEEE 802.3af/at) with 240W total power budget
• 20 Gbps switching capacity and 14.88 Mpps forwarding rate
• Web-managed Layer 2 features for network control
• Industrial operating temperature: -40°C to 75°C
• IP30 metal housing for durability
• Redundant DC power input (48-57V) for high availability
• 6KV ESD and surge protection

Why choose it

This switch is engineered for extreme conditions. Its wide temperature range and rugged metal enclosure ensure reliable operation in environments where standard switches fail. The redundant power inputs and high PoE budget make it ideal for mission-critical applications, while web management provides easy configuration and monitoring.

Ideal use cases

• Industrial automation and control systems
• IP surveillance networks in outdoor or harsh locations
• Transportation and infrastructure monitoring
• Powering PoE devices in remote cabinets

Good to know

The EX-62036MPOE supports DIN-rail and wall mounting for flexible installation. Its fanless design ensures silent operation and reduces maintenance. With 8K MAC address table and 9K jumbo frame support, it handles large data loads efficiently.
