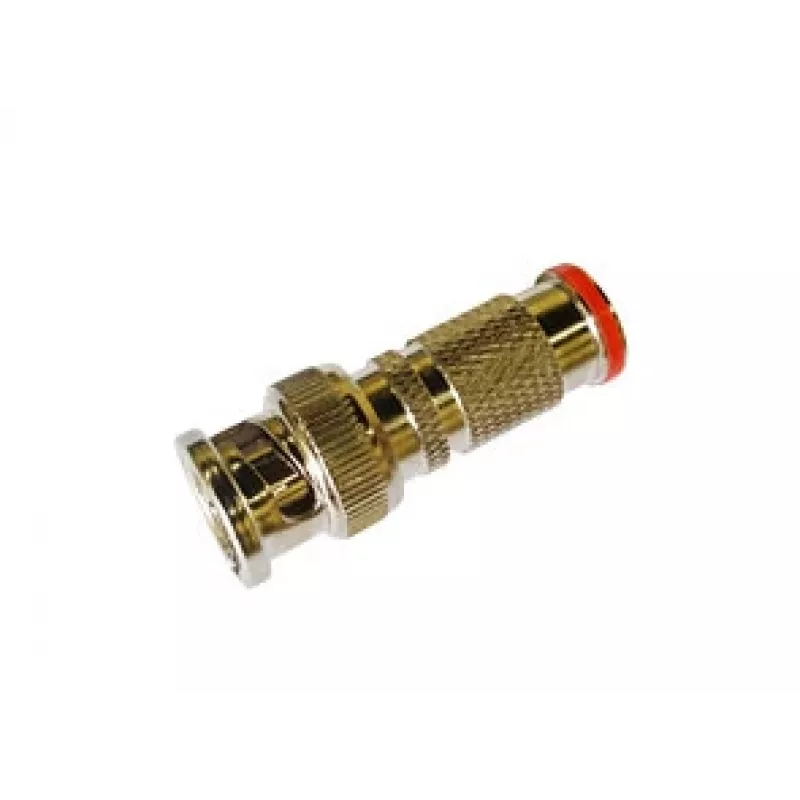

EXTRA DIGITAL compressie-BNC-stekker voor RG59 coaxkabel, 10-pack

Installers and technicians working on CCTV or professional video systems often reach for these compression BNC connectors when terminating RG59 coaxial cable. The 10-piece pack from EXTRA DIGITAL provides a reliable, weather-resistant connection for surveillance cameras, security DVRs, and broadcast equipment. Each connector features a nickel-plated brass body, gold-plated center pin, and PTFE dielectric, ensuring consistent 75 Ohm impedance and minimal signal loss across the DC to 3 GHz frequency range.

Key specifications

• Connector type: BNC male
• Compatible cable: RG59 coaxial
• Connection method: Compression (requires BNC compression tool)
• Impedance: 75 Ohm
• Frequency range: DC to 3 GHz
• Return loss: >20 dB up to 1 GHz
• Insertion loss: <0.1 dB up to 1 GHz
• Body material: Brass, nickel-plated
• Center pin: Gold-plated
• Dielectric: PTFE
• Operating temperature: -20°C to +70°C
• Mating cycles: 500
• Pack size: 10 pieces
• RoHS compliant

Why choose it

Compression connectors outperform crimp or twist-on types by creating a permanent, moisture-resistant seal that maintains cable integrity. The gold-plated center pin resists corrosion, while the PTFE dielectric ensures stable performance over time. With a return loss better than 20 dB up to 1 GHz, these connectors preserve signal quality in high-resolution video systems.

Ideal use cases

• Terminating RG59 cables for CCTV cameras and DVRs
• Professional video and broadcast installations
• Security system upgrades and maintenance
• Any application requiring reliable 75 Ohm connections

Good to know

A compression tool is required for installation. The connectors are compatible with RG59 cables having a dielectric diameter of approximately 3.7 mm and an outer jacket diameter of approximately 6.15 mm. The nickel-plated brass body offers durability and corrosion resistance, making these connectors suitable for both indoor and outdoor use.
