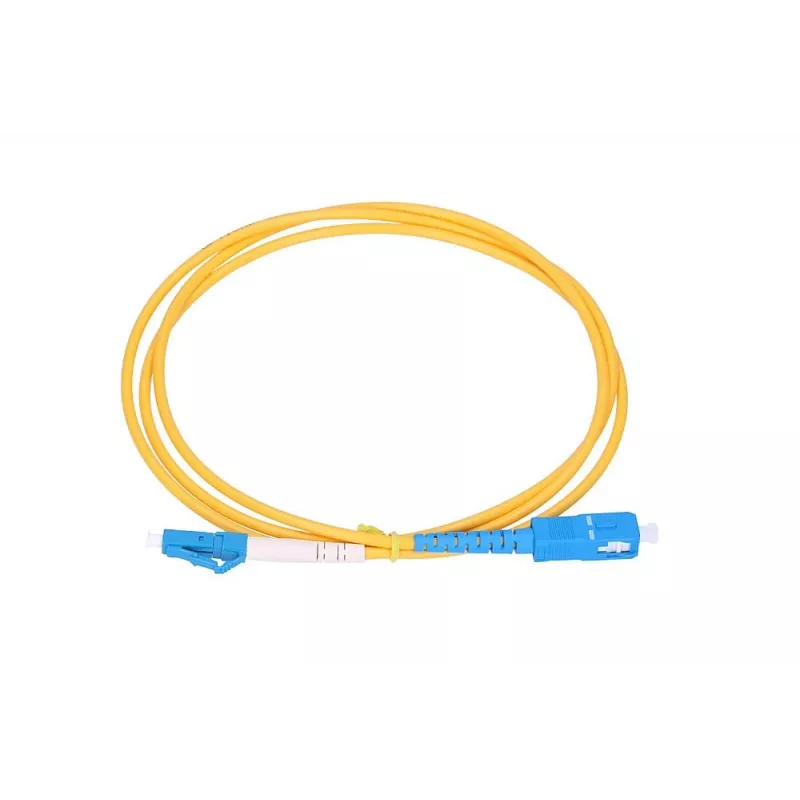

Extralink patchkabel LC/UPC-SC/UPC singlemode simplex G652D 1 m

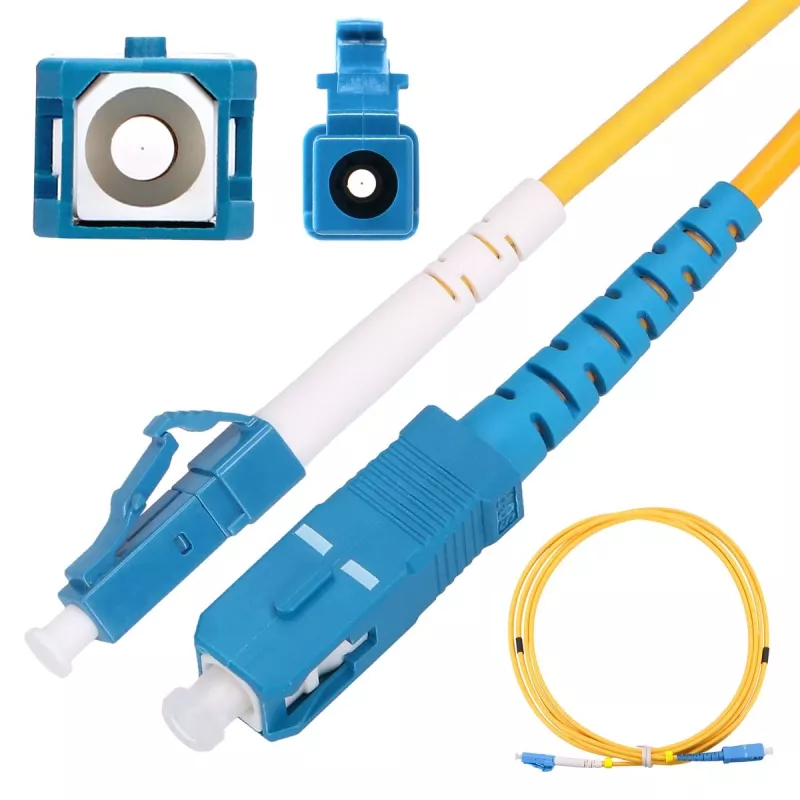

The Extralink Patchcord LC/UPC-SC/UPC Single Mode Simplex G652D 1m is a 1-meter single-mode fiber optic patch cable with a 3.0 mm jacket and LC/UPC to SC/UPC terminations. It uses G.652D fiber and is intended for connecting optical equipment such as switches, converters, and FTTH devices including OLT and ONU/ONT units.

Advantages

This patchcord provides single-mode transmission with G.652D fiber characteristics, standard UPC polished connectors (LC and SC) for low return loss, and a compact 3.0 mm simplex cable construction suitable for typical indoor and rack installations. The 1 m length simplifies short-distance links inside cabinets and between adjacent units.

Suitable for

• FTTH connections between OLT and ONU/ONT devices
• Interconnection of switches, media converters, and optical transceivers
• Patching in telecom and data center racks for short links

Key specifications

• Type: Single-mode simplex patchcord
• Fiber: G.652D
• Connectors: LC/UPC to SC/UPC
• Cable diameter: 3.0 mm
• Length: 1 meter
• Brand: Extralink
• MPN: EX.12288
• EAN: 5903148912288

How to use

Verify connector types and orientation on both devices, then insert the LC/UPC and SC/UPC connectors into the corresponding ports until they click or seat firmly. Avoid bending the cable below its minimum bend radius and route it through cable management to prevent strain. For best performance, keep connector endfaces clean and cap unused ends when not connected.

Recommendations

Clean connector endfaces with suitable fiber cleaning tools before installation, avoid sharp bends and excessive pulling force, and store unused patchcords in protective sleeves to maintain connector quality.
