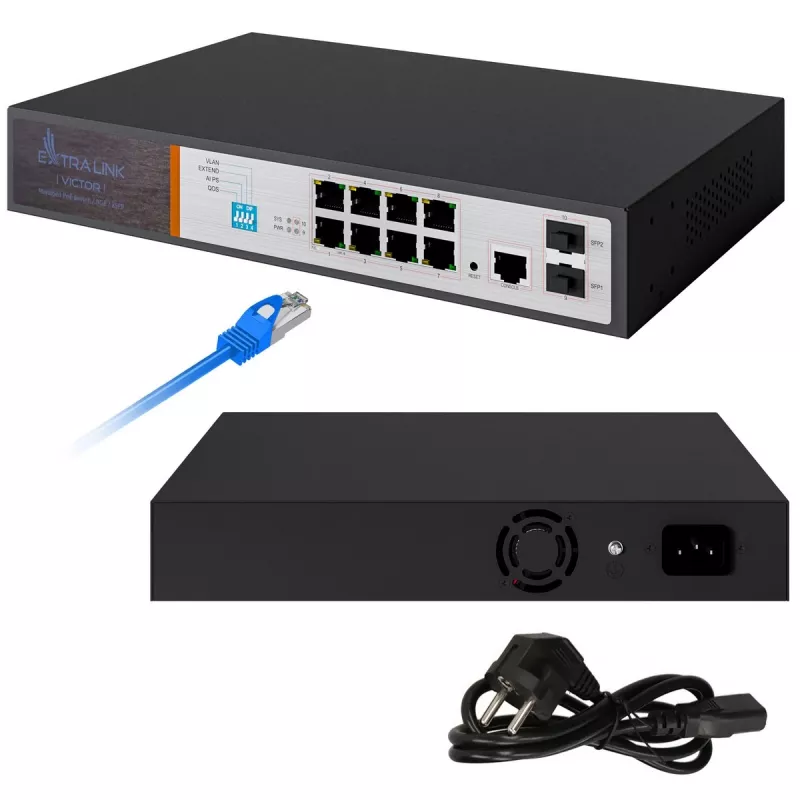

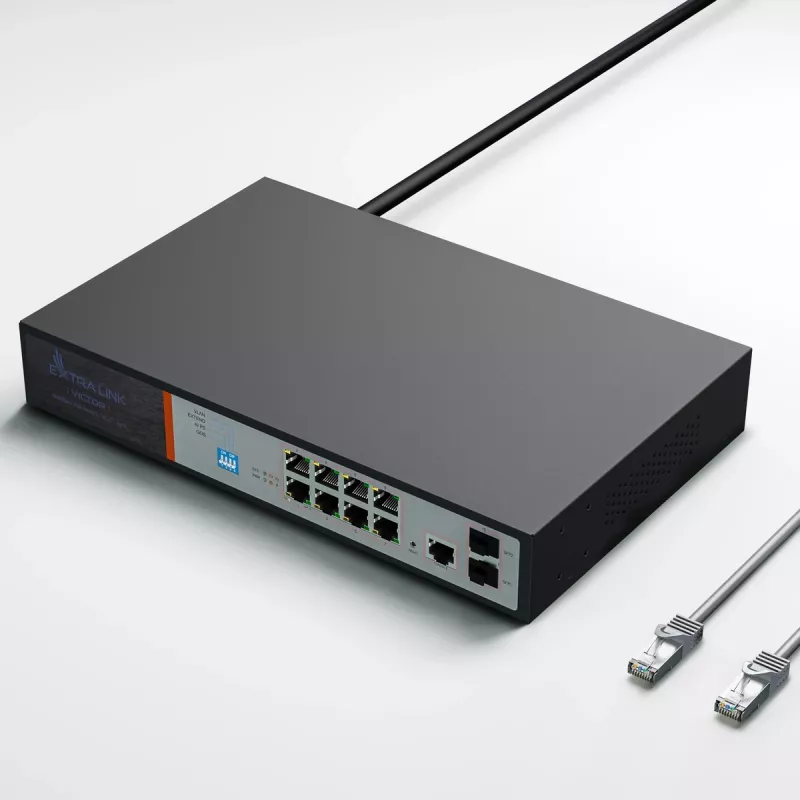

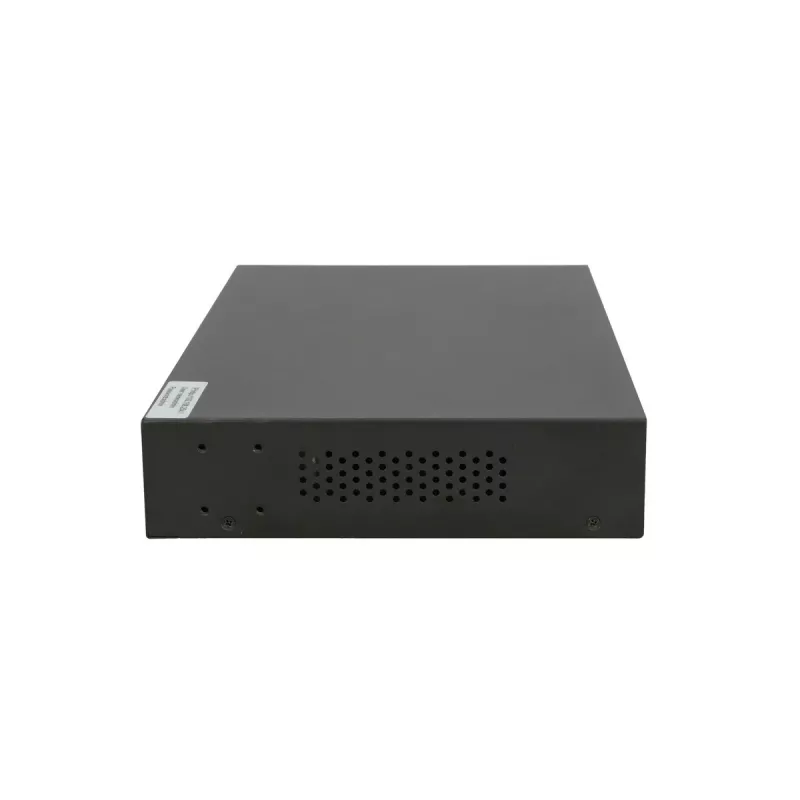

Extralink VICTOR 8-poorts Gigabit PoE+ managed switch met 2 SFP, 150W budget, L2+

The Extralink VICTOR stands apart from ordinary PoE switches by combining a full 150W power budget with Layer 2+ management in a compact 1U form factor. You get eight Gigabit PoE/PoE+ ports, two Gigabit SFP uplinks, and a dedicated console port—all managed through web, CLI, or SNMP. This switch delivers reliable power and advanced traffic control for IP cameras, VoIP phones, wireless access points, and other network devices without the cost of enterprise-class hardware.

Highlights

• 8× 10/100/1000Base-T Gigabit Ethernet ports with IEEE 802.3af/at PoE/PoE+ (up to 30W per port)
• Total PoE power budget of 150W – enough for multiple high-power devices simultaneously
• 2× Gigabit SFP slots for fiber uplinks or long-distance connections
• 1× RJ45 console port for out-of-band management
• Layer 2+ features: VLAN (802.1Q and port-based), QoS (port-based, 802.1p, DSCP), link aggregation, and more
• Management via web GUI, CLI (Telnet/SSH), SNMP, and system event log

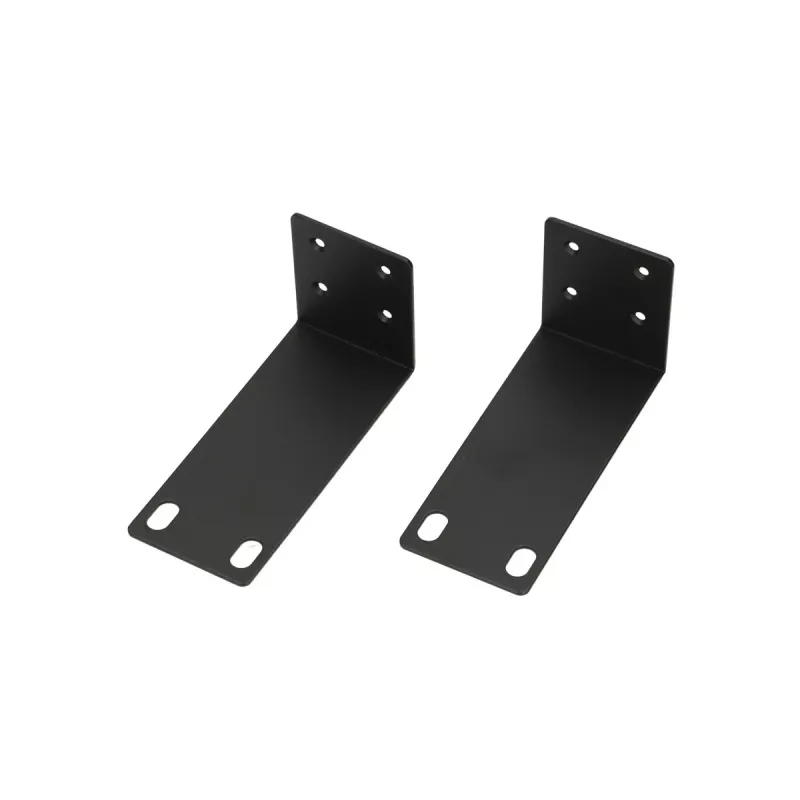

• Rack-mountable 1U design with included mounting ears; desktop use also possible

In daily use

Deploy the VICTOR in small to medium business networks, surveillance systems, or smart buildings. Connect cameras and access points directly to the PoE ports—no separate power injectors needed. Use the SFP uplinks to link to a core switch or server over fiber. Configure VLANs to isolate voice, data, and video traffic, and apply QoS to prioritize latency-sensitive applications. The internal power supply keeps cabling tidy, and the fanless design (if applicable) ensures silent operation in office environments.

Full specifications

• Switch type: Managed Layer 2+
• Ethernet ports: 8× 10/100/1000Base-T (Gigabit)
• PoE standard: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• PoE power budget: 150W total
• Uplink ports: 2× Gigabit SFP
• Console port: 1× RJ45
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• VLAN support: IEEE 802.1Q tag-based, port-based
• QoS: Port-based, 802.1p, DSCP
• Management: Web GUI, CLI, SNMP, Telnet
• Jumbo frame support: up to 9KB

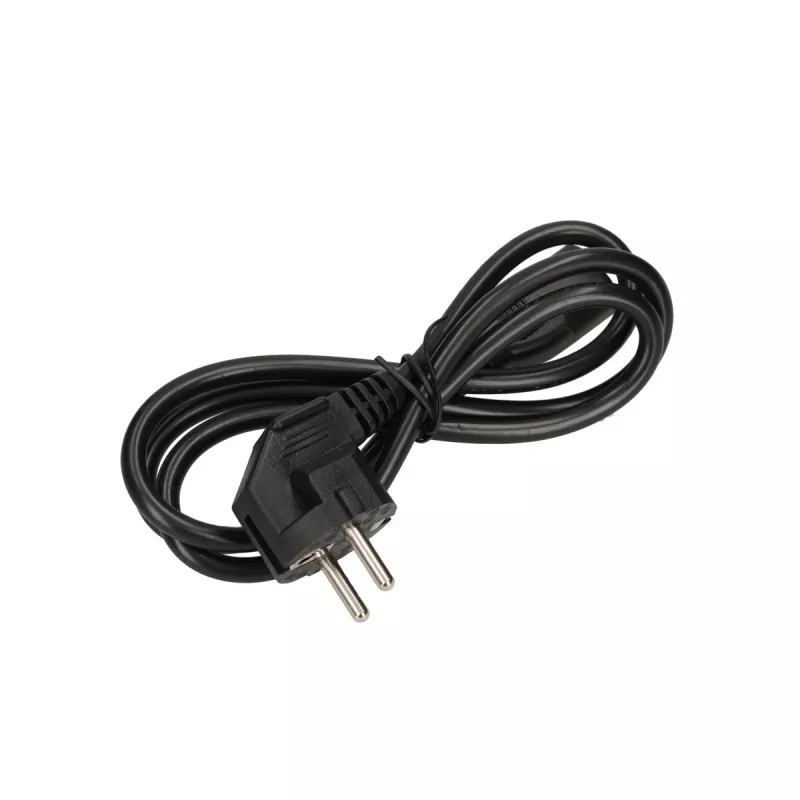

• Power supply: AC 100-240V, 50/60Hz (internal)
• Mounting: Desktop or 1U rackmount
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
• Dimensions (W×D×H): 440 × 220 × 44 mm (1U)
• Weight: 2.8 kg

Final note

The Extralink VICTOR delivers enterprise-grade PoE management at a price that fits small business budgets. With its robust power budget, flexible uplinks, and full L2+ feature set, it is a reliable backbone for modern IP networks.
