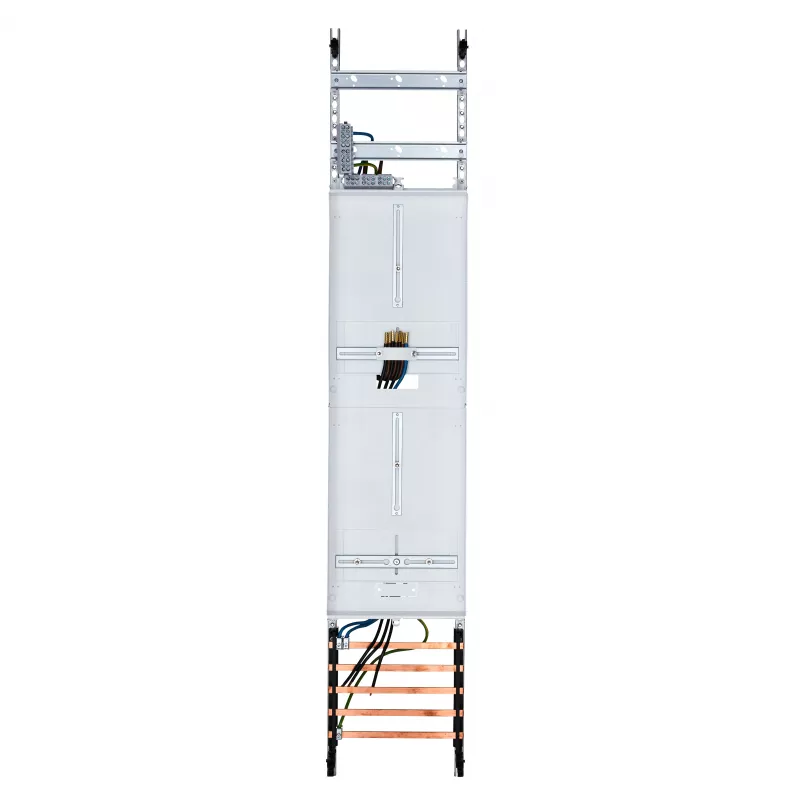

f-tronic ZR6 eenveld-meterveld, 1350mm hoogte, 1-3 meterplaatsen, 1 TRE-plaats 7143302

The f-tronic ZR6 single-field meter panel stands out with its 1350 mm construction height and modular design, offering a flexible platform for residential and commercial metering applications. Unlike conventional fixed panels, this unit accommodates up to three meter positions and includes a dedicated slot for a tariff switching device (TRE), making it suitable for modern eHZ and conventional meters.

Highlights

• Single-field design with 1350 mm height
• Supports 1 to 3 meter positions (eHZ or conventional)
• One dedicated TRE position for tariff switching
• 5-pole main busbar rated at 250 A
• Five distribution rows for components
• Pre-wired and snap-in mounting

In daily use

Installers benefit from the pre-wired configuration and screw terminal connections, reducing setup time. The panel's polystyrene construction and snap-in mounting allow quick integration into f-tronic ZR6 system cabinets. Each meter position is rated for 63 A, ensuring reliable operation in standard installations.

Full specifications

• Construction width: 250 mm
• Main busbar: 5-pole, 250 A
• Distribution rows: 5
• Rated current per meter position: 63 A
• Material: Polystyrene
• Mounting type: Snap-in
• Connection type: Screw terminals
• Compliance: DIN VDE 0603-1, DIN 43870-1, TAB 2007/2012

Final note

A versatile and ready-to-install meter panel for the f-tronic ZR6 system, balancing capacity and compactness.
