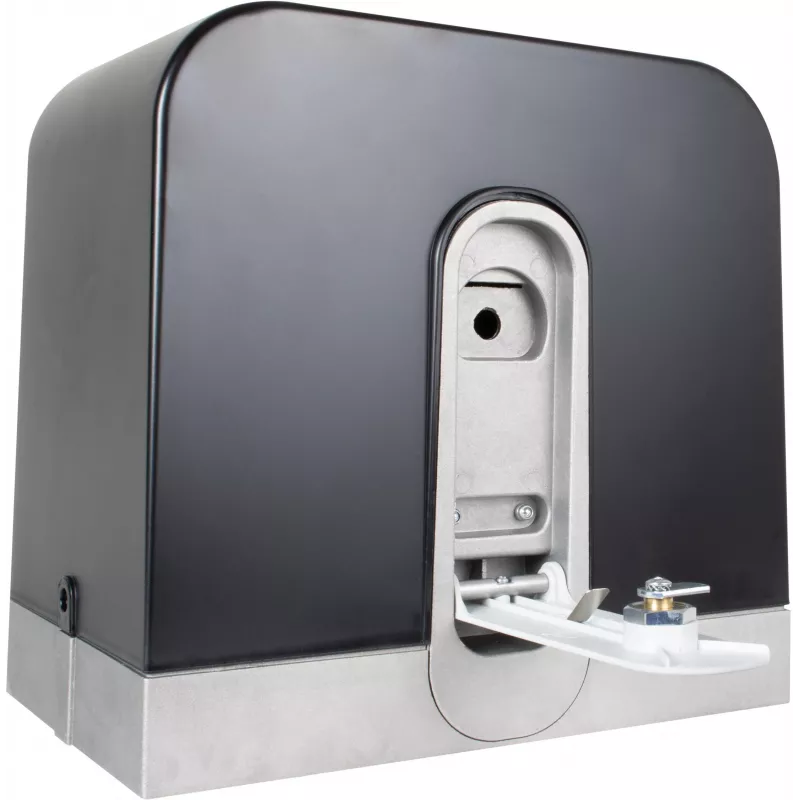

FAAC Cyclo C721 FDS schuifpoortaandrijving 24V 800kg

The FAAC Cyclo C721 FDS is a high-performance electromechanical sliding gate operator designed for intensive use. With a 24V DC motor and integrated E721 control unit, it provides reliable and safe operation for gates up to 800 kg and 15 m length. The FAAC FDS system with absolute magnetic encoder ensures precise position control and electronic anti-crushing protection.

Advantages

This operator offers soft start/stop, adjustable gate speed up to 18 m/min, and self-locking mechanism. The key-operated manual release allows operation during power outages. With IP44 protection rating and wide operating temperature range, it is suitable for outdoor installations.

Suitable for

• Residential and commercial sliding gates
• Gates weighing up to 800 kg
• Gates with leaf length up to 15 m
• Intensive use applications (100% duty cycle)

Key specifications

• Motor Voltage: 24V DC
• Input Power: 230V AC (50/60 Hz)
• Max Gate Weight: 800 kg
• Max Gate Length: 15 m
• Gate Speed: 18 m/min (adjustable)
• Thrust: 300 N
• Power Consumption: 220 W
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Pinion Module: Z16 (Module 4)
• Encoder: Absolute Magnetic Encoder (FAAC FDS System)

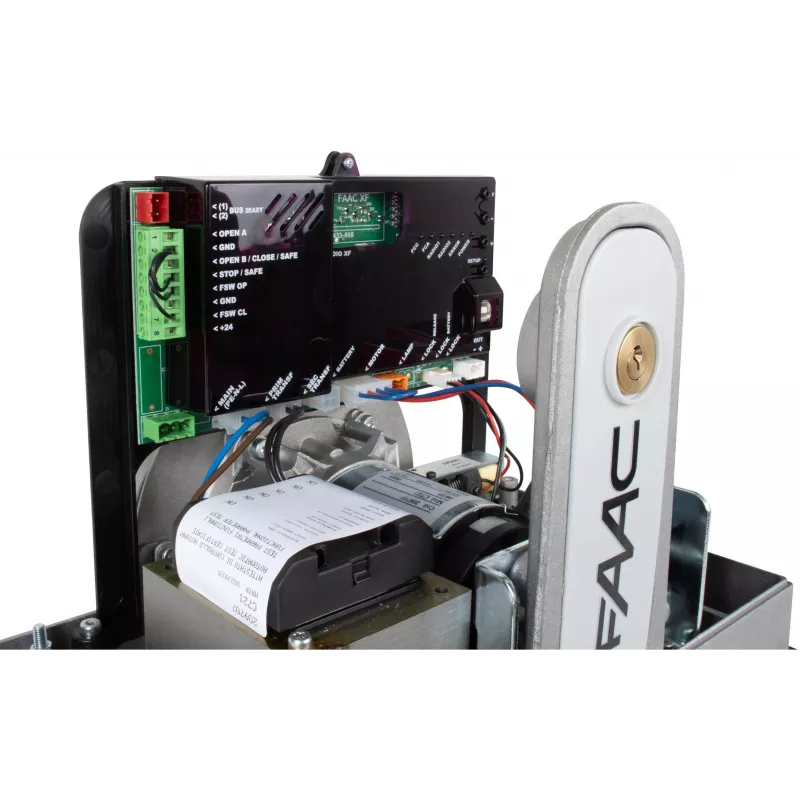

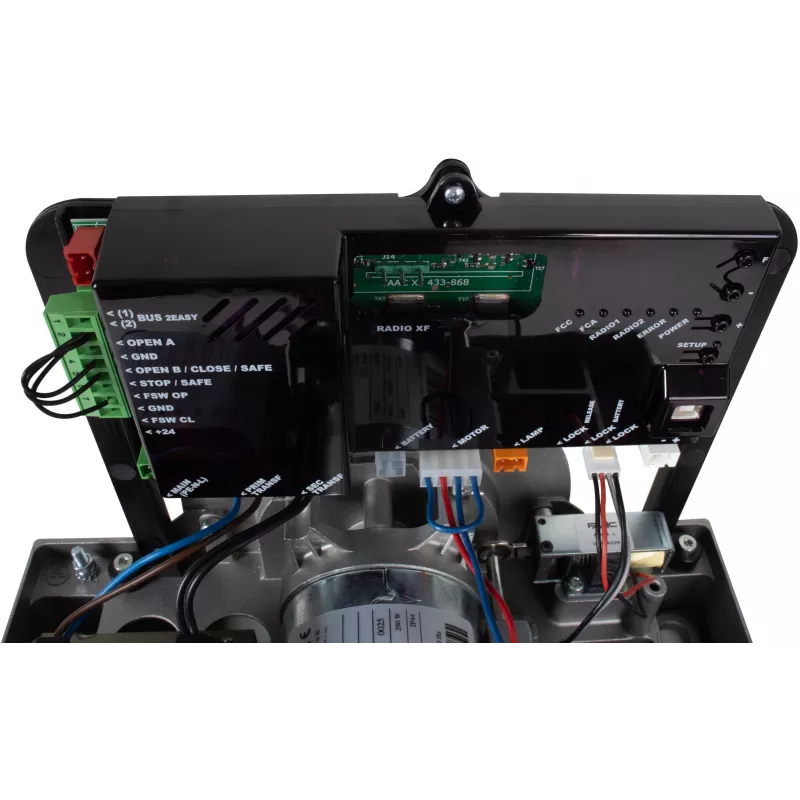

• Control Unit: Integrated E721
• Manual Release: Key-operated
• Self-locking: Yes
• Soft Start/Stop: Yes
• Obstacle Detection: Yes

Recommendations

For optimal performance, ensure proper installation by a qualified technician. Regular maintenance of the gate and operator is recommended to prolong service life.
