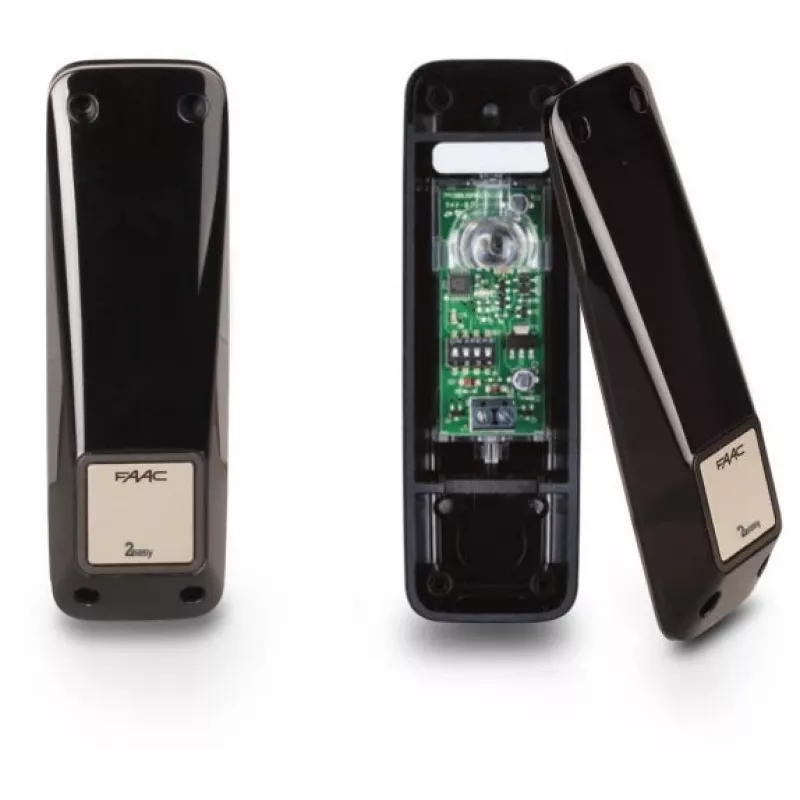

FAAC XP20BD fotocellen met BlueBUS-oogafstelling

The FAAC XP20BD photocells are designed for use with FAAC gate automation systems featuring BLUEBUS technology. These modulated infrared beam photocells provide reliable obstacle detection with a maximum operating range of 20 meters. The horizontal beam adjustment of ±90° and vertical adjustment of ±10° allow flexible alignment. With IP54 protection rating and polycarbonate housing, they are suitable for outdoor use. The automatic synchronization and fast response time (<20 ms) ensure safe operation.

Advantages

Easy installation with 2-wire BLUEBUS connection; wide adjustment range for precise alignment; robust polycarbonate housing; automatic synchronization; low current consumption (20 mA per pair).

Suitable for

• FAAC gate automation systems with BLUEBUS technology
• Residential and commercial gate safety
• Outdoor installations requiring IP54 protection

Key specifications

• Technology: Modulated Infrared Beam
• Communication Protocol: FAAC BLUEBUS (2-wire)
• Max Operating Range: 20 meters
• Power Supply: 24V (from BLUEBUS control unit)
• Current Consumption: 20 mA (per pair)
• Horizontal Beam Adjustment: ±90° (180° total)
• Vertical Beam Adjustment: ±10° (20° total)
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Mounting Type: Surface Mount
• Synchronization: Automatic
• Detection Type: Obstacle Detection
• Response Time: < 20 ms
• Housing Material: Polycarbonate
• Compatibility: FAAC control units with BLUEBUS technology

Recommendations

Ensure compatibility with your FAAC control unit. For optimal performance, align the photocells properly within the specified adjustment range. Regular cleaning of the lenses is recommended to maintain detection reliability.
