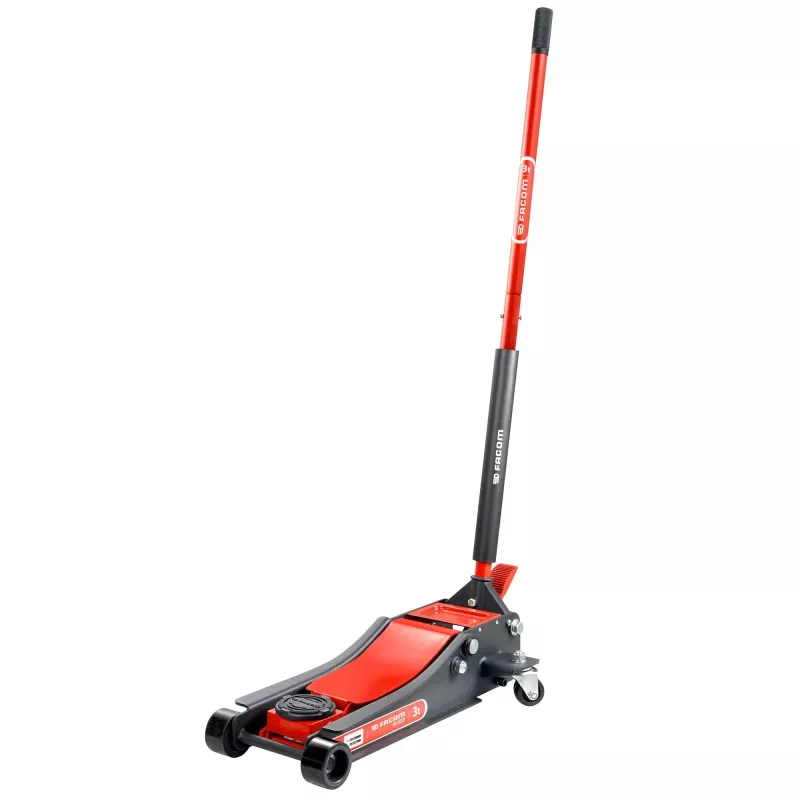

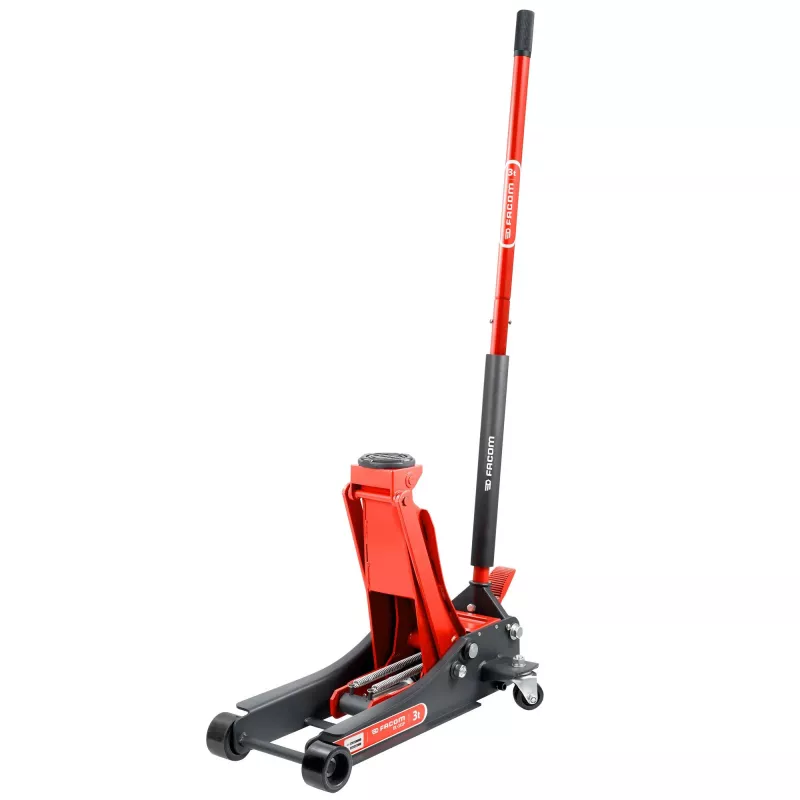

Facom DL.3CLP Extra platte hydraulische garagekrik 3 t hefbereik 100-533 mm

The Facom DL.3CLP stands out with its extra-flat profile, allowing access under vehicles with very low ground clearance while still delivering a full 3-tonne lifting capacity. Its double piston pump and quick lift system raise the saddle from just 100 mm to 533 mm with minimal handle strokes, making it a highly efficient choice for professional workshops.

Highlights

• 3 t lifting capacity with extra-flat chassis for low-clearance access
• Double piston pump with quick lift system for fast, effortless lifting
• Heavy-duty steel construction with integrated overload safety valve
• Rubber padded saddle protects vehicle contact points
• Precise lowering control via handle rotation

In daily use

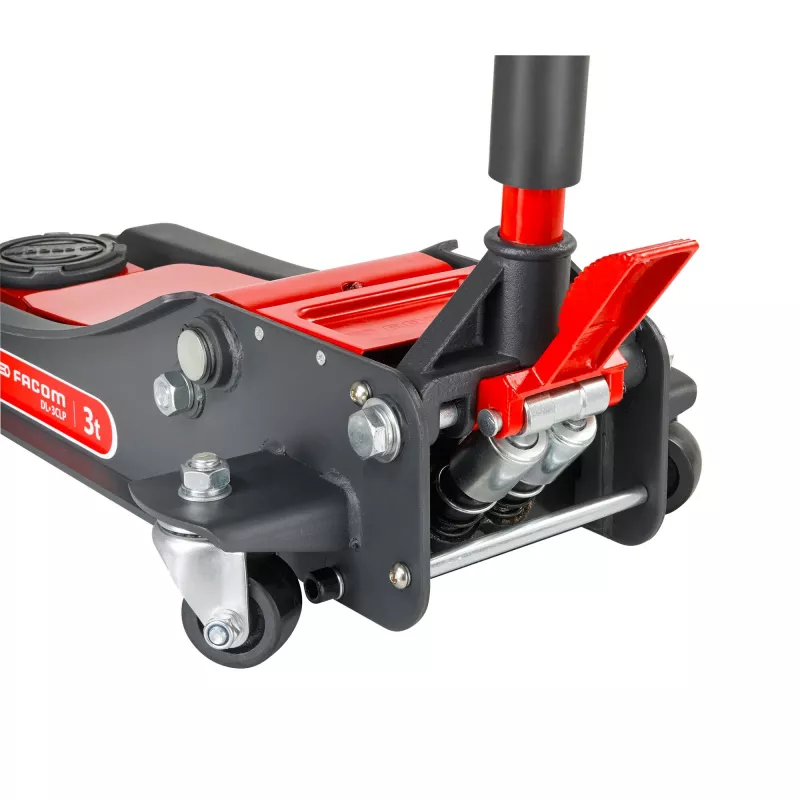

The long removable handle with soft grip provides comfortable operation, while the two fixed front wheels and two swivel rear wheels ensure stable positioning and easy manoeuvring. The precise lowering mechanism allows controlled descent, essential for safe load handling.

Full specifications

• Lifting capacity: 3000 kg (3 t)
• Minimum lift height: 100 mm
• Maximum lift height: 533 mm
• Jack type: Hydraulic trolley jack
• Profile: Extra-flat (low profile)
• Pump mechanism: Double piston pump
• Lifting speed: Quick lift system
• Construction material: Heavy-duty steel chassis
• Handle type: Long, removable handle
• Handle grip: Soft grip handle
• Wheel configuration: 2 fixed front wheels, 2 swivel rear wheels
• Safety feature: Integrated overload safety valve
• Lowering control: Precise lowering via handle rotation
• Saddle protection: Rubber padded lifting saddle
• Chassis length: 720 mm
• Chassis width: 360 mm
• Certification: CE Compliant

Final note

The Facom DL.3CLP combines low-profile access with robust lifting performance, making it a reliable tool for demanding automotive service environments.
