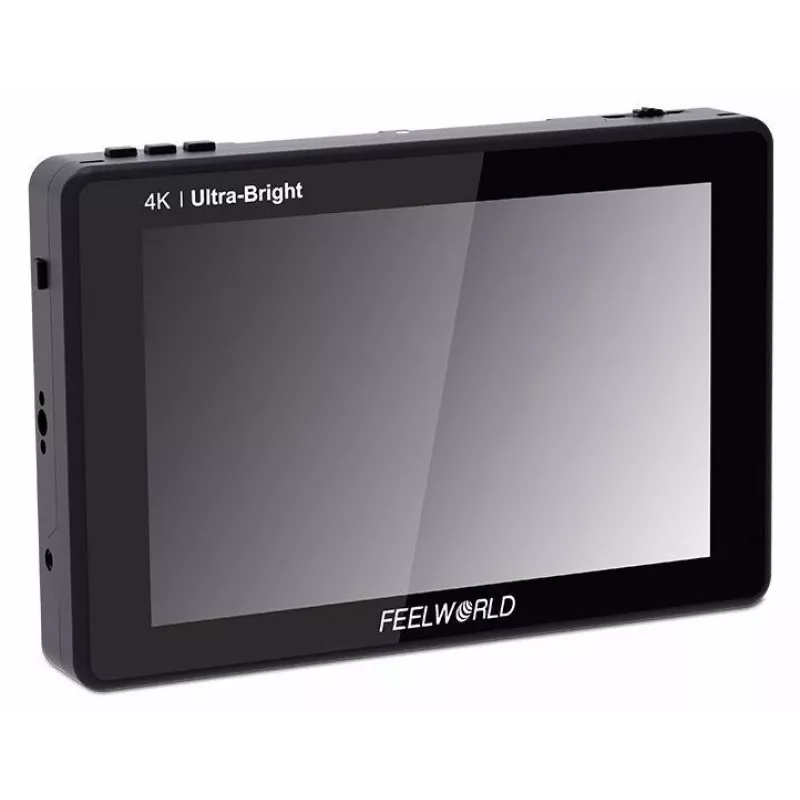

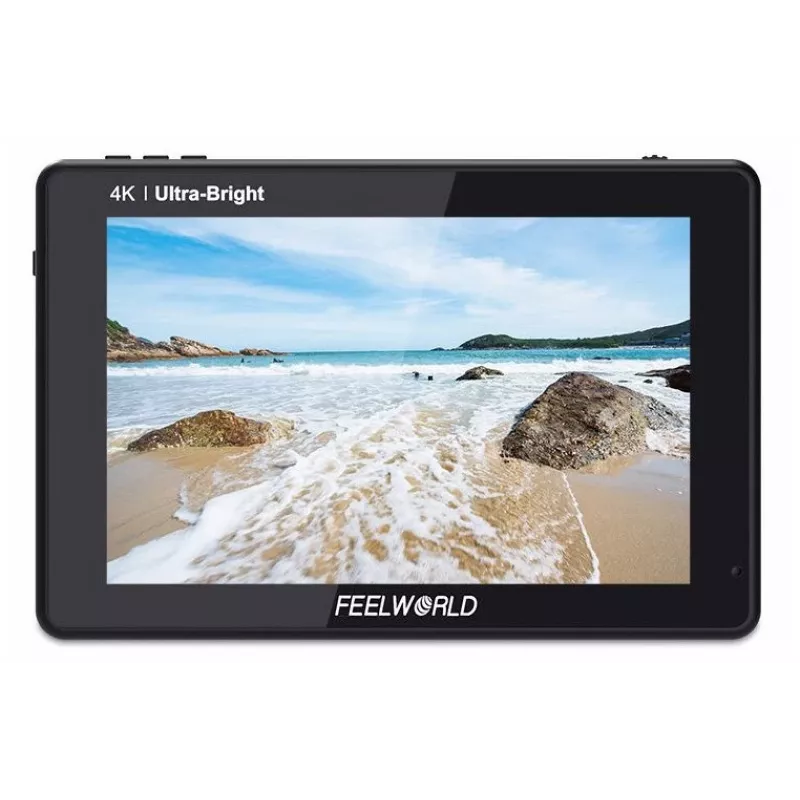

FEELWORLD LUT7 7-inch 2200nit 1920x1200 touchscreen 4K HDMI on-camera fieldmonitor met 3D LUT, HDR, waveform, dual NP-F

Most field monitors force you to choose between daylight visibility and professional monitoring tools—the FEELWORLD LUT7 refuses that compromise. Its 2200nit touchscreen stays readable under direct sun, while built-in 3D LUT support, HDR monitoring, and advanced scopes give you the critical evaluation tools typically reserved for larger studio displays. Dual NP-F plates allow hot-swap battery changes, so you never miss a take.

Highlights

• 7-inch IPS touchscreen with 1920x1200 resolution and 2200cd/m² brightness for clear outdoor viewing
• HDMI 2.0 input and loop-output support up to 4K UHD 30Hz, plus a 3.5mm headphone jack for audio monitoring
• Dual NP-F battery plates with DC 7-24V input for flexible power on set or in the studio
• Built-in 3D LUT support via SD card, HDR monitoring (HLG, PQ), and advanced scopes: waveform, vectorscope, histogram, focus peaking, false colour, zebra
• Three 1/4"-20 mounting threads for versatile rigging, with power consumption under 20W

In daily use

The LUT7 is built for fast-paced shoots where reliability matters. Load custom LUTs from the SD card to preview your final grade live, or switch on HDR monitoring to evaluate HLG and PQ footage accurately. The touchscreen interface lets you tap through menus, toggle focus peaking, or adjust brightness without hunting for buttons—especially useful when the monitor is mounted on a gimbal or crane. The dual NP-F plates let you hot-swap batteries without powering down, and the DC input covers longer studio sessions.

Full specifications

• Screen Size: 7 inch
• Display Resolution: 1920x1200
• Brightness: 2200 cd/m² (nits)
• Contrast Ratio: 1200:1
• Viewing Angle: 160° H/V

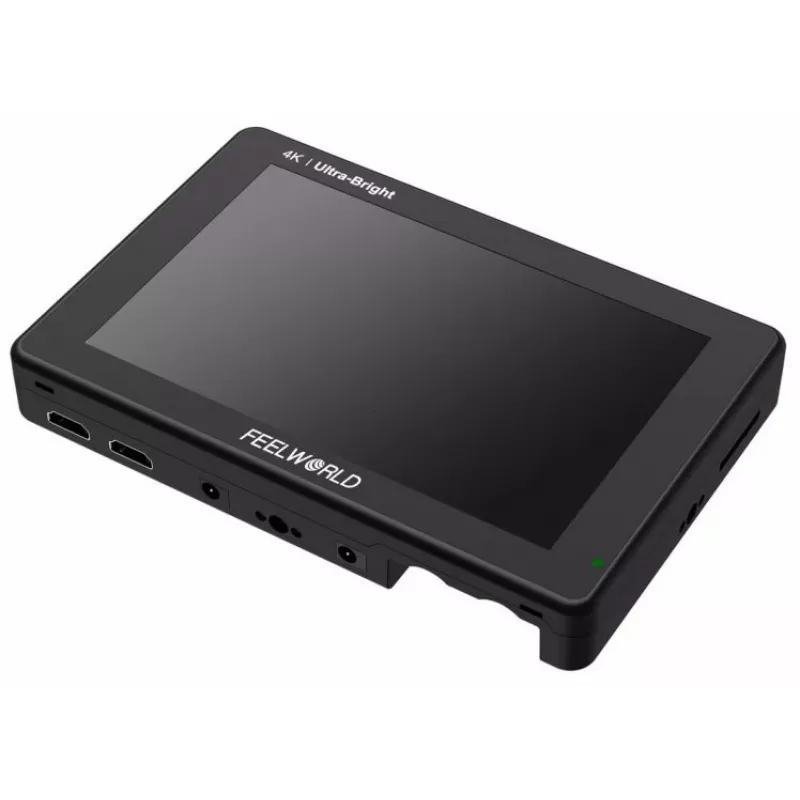

• Input Ports: 1x HDMI 2.0 (up to 4K UHD 30Hz)
• Output Ports: 1x HDMI 2.0 (up to 4K UHD 30Hz)
• Audio Output: 3.5mm Headphone Jack
• Power Input: DC 7-24V

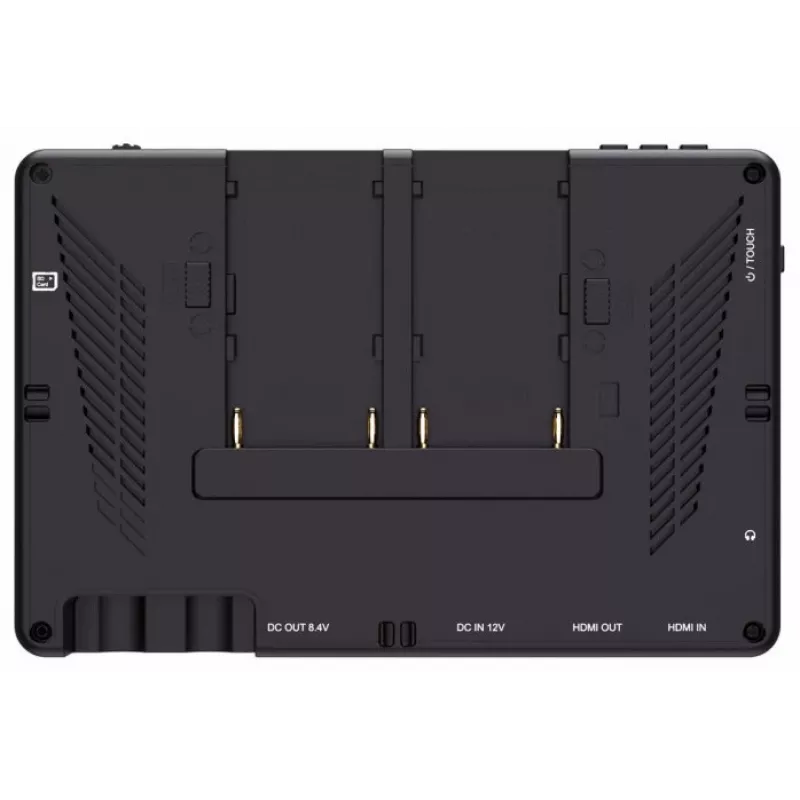

• Battery Plate Type: Dual NP-F
• Touchscreen: Yes
• 3D LUT Support: Yes (via SD card)
• HDR Monitoring: Yes (HLG, PQ)
• Mounting Points: 3x 1/4"-20 Thread
• Advanced Monitoring Tools: Waveform, Vectorscope, Histogram, Focus Peaking, False Color, Zebra
• Power Consumption: ≤20W
• Aspect Ratio: 16:10
• Backlight Type: LED

Final note

For cinematographers and videographers who need a daylight-readable monitor with full colour control, the FEELWORLD LUT7 delivers pro-level monitoring in a compact, power-flexible package.
