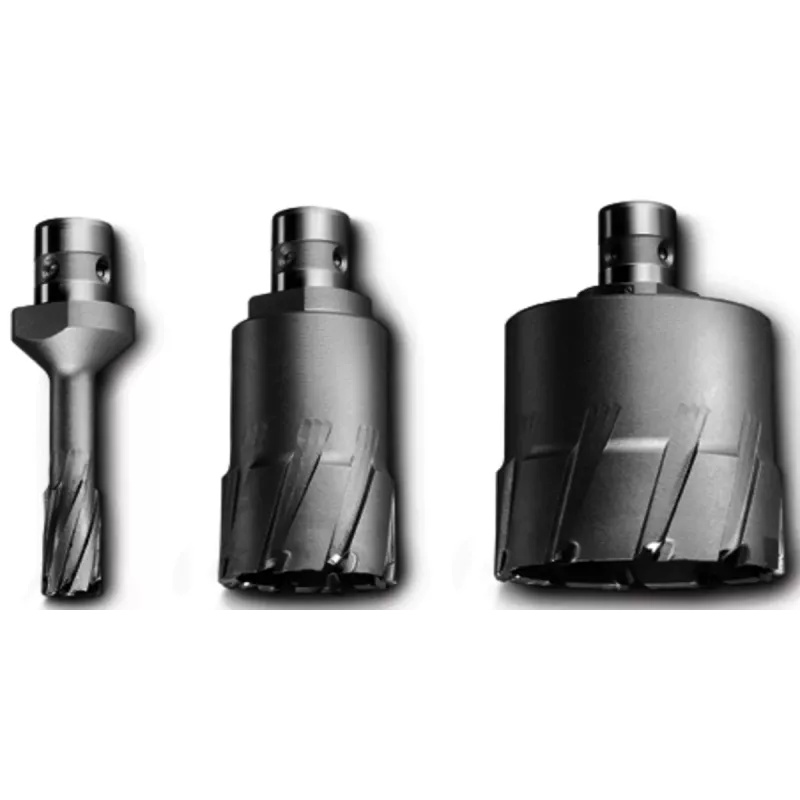

FEIN HM-Ultra 35 QuickIN 13 mm hardmetaal-kernboor 63127087013

The FEIN HM-Ultra 35 QuickIN annular cutter with 13 mm cutting diameter delivers fast, precise core drilling in steel, stainless steel, and non-ferrous metals. Its QuickIN shank enables tool-free, secure mounting in seconds, while the multi-tooth carbide design ensures clean holes and long service life even in materials up to 1400 N/mm² tensile strength.

Advantages

QuickIN system for rapid tool changes without additional tools. Hard metal (carbide) cutting edges provide high wear resistance and consistent performance. Multi-tooth geometry reduces cutting pressure and improves chip evacuation. 35 mm cutting depth covers most common plate and profile thicknesses. Suitable for portable magnetic drills and stationary machines with QuickIN arbor.

Suitable for

• Steel construction and metalworking
• Stainless steel fabrication
• Non-ferrous metal processing
• Maintenance and repair operations
• On-site drilling with magnetic base drills

Key specifications

• Cutting diameter: 13 mm
• Cutting depth: 35 mm
• Shank system: QuickIN
• Material: Hard metal (carbide)
• Total length: 64 mm
• Max. tensile strength: 1400 N/mm²
• Number of pieces: 1

Recommendations

Use with FEIN magnetic core drills and appropriate coolant for optimal tool life. Ensure the workpiece is securely clamped and the machine is set to the correct speed for the material. For best results, apply steady feed pressure and clear chips regularly.
